Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

CARBURETOR (MODEL K1 / K2 / K3 / K4) FOR SUZUKI VOLUSIA 800 2002

THROTTLE BODY (MODEL K5)

Item numbers

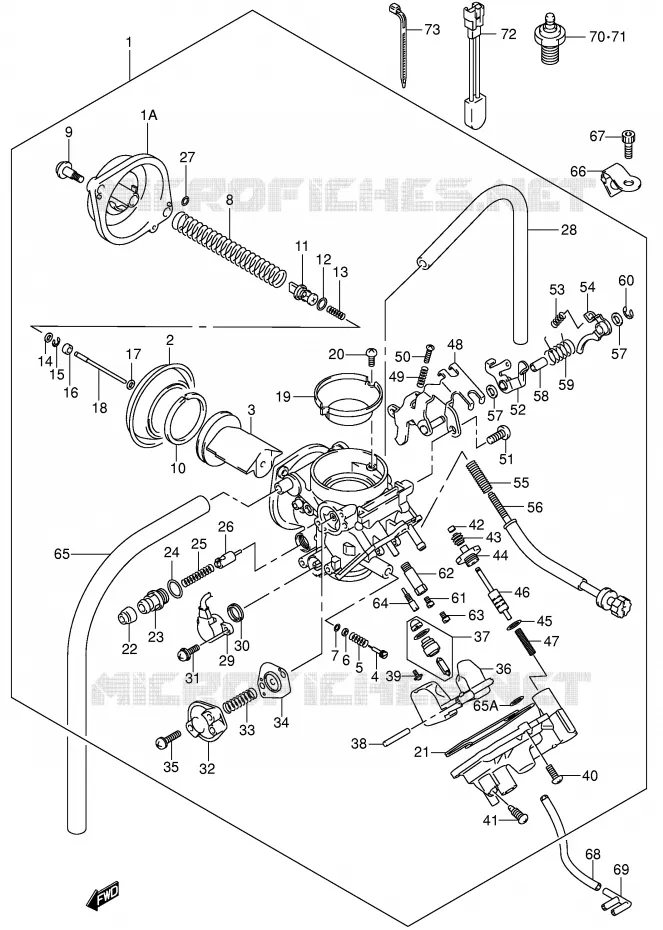

CARBURETOR (MODEL K1/K2/K3/K4) Suzuki MOTO 800 VOLUSIA 2002 VL800K2(E2)
1
1A
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
59
60
61
62
63
64
65A
65
66
67
68
69
70
71
72
73
1
CARBURETOR ASSY

13200-41F10-000   1320041F10000

1320041F10000
Not available
1A
DISCONTINUE
DIAPHRAGM COVER

13502-41F00-000   1350241F00000

1350241F00000
Not available
2
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

3
PISTON VALVE

13501-41F00-000   1350141F00000

1350141F00000

Unit Price

4
ADJUSTER

13279-20B00-000   1327920B00000

1327920B00000

Unit Price

5
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

6
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

7
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

8
SPRING

13573-10F00-000   1357310F00000

1357310F00000

Unit Price

9
SCREW
SCREW

13247-33E00-000   1324733E00000

1324733E00000

Unit Price

10
RING

13504-41F00-000   1350441F00000

1350441F00000
Not available
11
HOLDER
HOLDER

13418-33E00-000   1341833E00000

1341833E00000

Unit Price

12
O RING
O RING

09280-05004-000   0928005004000

0928005004000

Unit Price

13
SPRING

13481-13F00-000   1348113F00000

1348113F00000

Unit Price

14
WASHER

13382-19E00-000   1338219E00000

1338219E00000

Unit Price

15
E RING,MULTIPLE JET NOZZLE<br />E RING
E RING, MULTIPLE JET NOZZLE
E RING

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

16
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

17
WASHER

13291-29FA0-000   1329129FA0000

1329129FA0000

Unit Price

18
JET, NEEDLE (5E22-3)

13383-41F10-000   1338341F10000

1338341F10000
Not available
19
DISCONTINUE
FUNNEL

13667-41F00-000   1366741F00000

1366741F00000
Not available
20
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

21
O RING
O RING

13258-33E00-000   1325833E00000

1325833E00000

Unit Price

22
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

23
HOLDER, GUIDE
GUIDE, HOLDER

13418-41F00-000   1341841F00000

1341841F00000

Unit Price

24
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

25
SPRING
SPRING

13417-37200-000   1341737200000

1341737200000

Unit Price

26
PLUNGER ASSY

13411-41F01-000   1341141F01000

1341141F01000

Unit Price

27
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

28
HOSE

13683-41F00-000  

13683-41F01-000
 1368341F00000

Unit Price

29
SENSOR ASSY
SENSOR ASSY

13580-19F00-000  

13580-19F01-000
 1358019F00000

Unit Price

30
GASKET,THROTTLE SHAFT<br />PACKING
GASKET, THROTTLE SHAFT
PACKING

13557-47070-000   1355747070000

1355747070000

Unit Price

31
SCREW
SCREW

13602-19B50-000   1360219B50000

1360219B50000

Unit Price

32
COVER ASSY

13502-10F00-000   1350210F00000

1350210F00000

Unit Price

33
SPRING

13481-41F00-000   1348141F00000

1348141F00000
Not available
34
DIAPHRAGM ASSY
DIAPHRAGM ASSY

13480-10F00-000  

13480-10F01-000
 1348010F00000

Unit Price

35
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

36
FLOAT ASSY
FLOAT ASSY

13250-33E00-000   1325033E00000

1325033E00000

Unit Price

37
VALVE ASSY,NEEDLE
VALVE ASSY, NEEDLE

13370-20F00-000  

13370-20F01-000
 1337020F00000

Unit Price

38
PIN
PIN

13254-92910-000   1325492910000

1325492910000
Not available
39
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

40
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

41
SCREW, DRAIN
SCREW

13247-41F00-000   1324741F00000

1324741F00000

Unit Price

42
CAP

13495-09400-000   1349509400000

1349509400000

Unit Price

43
CAP

13495-18E00-000   1349518E00000

1349518E00000

Unit Price

44
GUIDE HOLDER

13496-20E20-000   1349620E20000

1349620E20000

Unit Price

45
O RING D:1.5 ID:8.5<br />O RING
O RING D:1.5 ID:8.5
O RING

09280-08014-000   0928008014000

0928008014000

Unit Price

46
PLUNGER

13493-89J00-000   1349389J00000

1349389J00000

Unit Price

47
SPRING

13417-21F00-000   1341721F00000

1341721F00000

Unit Price

48
DISCONTINUE
BRACKET ASSY

13621-41F00-000   1362141F00000

1362141F00000
Not available
49
SPRING, STARTER SHAFT
SPRING

13434-30650-000   1343430650000

1343430650000

Unit Price

50
SCREW

02112-03123-000  

02112-0312B-000
 0211203123000

Unit Price

51
SCREW
SCREW

02112-05107-000   0211205107000

0211205107000

Unit Price

52
DISCONTINUE
LEVER ASSY

13490-41F00-000   1349041F00000

1349041F00000
Not available
53
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-96111-000   1326896111000

1326896111000

Unit Price

54
DISCONTINUE
LEVER ASSY

13490-41F10-000   1349041F10000

1349041F10000
Not available
55
SPRING
SPRING

13271-33C00-000   1327133C00000

1327133C00000

Unit Price

56
DISCONTINUE
ADJUST SCREW ASSY

13267-41F00-000   1326741F00000

1326741F00000
Not available
57
WASHER<br />PACKING
WASHER
PACKING

13386-09410-000   1338609410000

1338609410000

Unit Price

58
DISCONTINUE
RING

13387-26F00-000   1338726F00000

1338726F00000
Not available
59
DISCONTINUE
SPRING

13494-41F00-000   1349441F00000

1349441F00000
Not available
60
DISCONTINUE<br />E RING
DISCONTINUE
E RING

13617-44500-000   1361744500000

1361744500000
Not available
61
JET, POWER(132.5)

09491-26013-000  

09491-26019-000
 0949126013000

Unit Price

62
HOLDER,JET<br />JET HOLDER
HOLDER, JET
JET HOLDER

13385-33E00-000   1338533E00000

1338533E00000

Unit Price

63
JET,MAIN<br />MAIN JET (55.0)
JET, MAIN
MAIN JET (55.0)

09491-55004-000   0949155004000

0949155004000

Unit Price

64
JET, PILOT, 27.5
PILOT JET (27.5)

09492-27011-000   0949227011000

0949227011000

Unit Price

65A
O RING

13251-06C10-000   1325106C10000

1325106C10000

Unit Price

65
DISCONTINUE
HOSE

13686-41F00-000   1368641F00000

1368641F00000
Not available
66
DISCONTINUE
PLATE, IDLE ADJUST

13279-41F01-000  

1327941F01000
Not available
67
BOLT

07130-06103-000  

07130-0610B-000
 0713006103000

Unit Price

68
HOSE<br />HOSE, FUEL COCK VACUUM
HOSE
HOSE, FUEL COCK VACUUM

09355-40805-600   0935540805600

0935540805600

Unit Price

69
3 WAY
3 WAY, VACUUM HOSE

09367-04009-000   0936704009000

0936704009000

Unit Price

70
HEATER ASSY, CARBURETOR (35W)

13650-41F00-000   1365041F00000

1365041F00000
Not available
71
HEATER ASSY, CARBURETOR (25W)

13650-20E00-000  

1365020E00000
Not available
72
DISCONTINUE
THERMO SWITCH, CARB

13655-41F00-000   1365541F00000

1365541F00000
Not available
73
CLAMP
CLAMP

09407-14407-000   0940714407000

0940714407000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 VOLUSIA 2002

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME for Suzuki VOLUSIA 800 2002

FRAME
for Suzuki VOLUSIA 800 2002

FRAME BRACE for Suzuki VOLUSIA 800 2002

FRAME BRACE
for Suzuki VOLUSIA 800 2002

FOOTREST (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

FOOTREST (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

FOOTREST (MODEL K5) for Suzuki VOLUSIA 800 2002

FOOTREST (MODEL K5)
for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K1) for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K1)
for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K2) for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K2)
for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K3) for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K3)
for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K4) for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K4)
for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K5) for Suzuki VOLUSIA 800 2002

FUEL TANK (MODEL K5)
for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K1) for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K1)
for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K2) for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K2)
for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K3) for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K3)
for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K4) for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K4)
for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K5) for Suzuki VOLUSIA 800 2002

FAIRING (MODEL K5)
for Suzuki VOLUSIA 800 2002

HEADLAMP HOUSING (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

HEADLAMP HOUSING (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

HEADLAMP HOUSING (MODEL K5) for Suzuki VOLUSIA 800 2002

HEADLAMP HOUSING (MODEL K5)
for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K1) for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K1)
for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K2) for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K2)
for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K3) for Suzuki VOLUSIA 800 2002

FRONT FENDER (MODEL K3)
for Suzuki VOLUSIA 800 2002

FRONT FENDER (VL800K4/K5) for Suzuki VOLUSIA 800 2002

FRONT FENDER (VL800K4 / K5)
for Suzuki VOLUSIA 800 2002

FRONT FENDER (VL800ZK4/ZK5) for Suzuki VOLUSIA 800 2002

FRONT FENDER (VL800ZK4 / ZK5)
for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K1) for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K1)
for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K2) for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K2)
for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K3) for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K3)
for Suzuki VOLUSIA 800 2002

REAR FENDER (VL800K4) for Suzuki VOLUSIA 800 2002

REAR FENDER (VL800K4)
for Suzuki VOLUSIA 800 2002

REAR FENDER (VL800ZK4/ZK5) for Suzuki VOLUSIA 800 2002

REAR FENDER (VL800ZK4 / ZK5)
for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K5) for Suzuki VOLUSIA 800 2002

REAR FENDER (MODEL K5)
for Suzuki VOLUSIA 800 2002

LUGGAGE BOX for Suzuki VOLUSIA 800 2002

LUGGAGE BOX
for Suzuki VOLUSIA 800 2002

LABEL (MODEL K1/K2) for Suzuki VOLUSIA 800 2002

LABEL (MODEL K1 / K2)
for Suzuki VOLUSIA 800 2002

LABEL (MODEL K3/K4/K5) for Suzuki VOLUSIA 800 2002

LABEL (MODEL K3 / K4 / K5)
for Suzuki VOLUSIA 800 2002

SEAT (VL800K1/K2/K3/K4/K5) for Suzuki VOLUSIA 800 2002

SEAT (VL800K1 / K2 / K3 / K4 / K5)
for Suzuki VOLUSIA 800 2002

SEAT (VL800ZK3/ZK4/ZK5) for Suzuki VOLUSIA 800 2002

SEAT (VL800ZK3 / ZK4 / ZK5)
for Suzuki VOLUSIA 800 2002

GASKET SET for Suzuki VOLUSIA 800 2002

GASKET SET
for Suzuki VOLUSIA 800 2002

FRONT CYLINDER HEAD for Suzuki VOLUSIA 800 2002

FRONT CYLINDER HEAD
for Suzuki VOLUSIA 800 2002

REAR CYLINDER HEAD for Suzuki VOLUSIA 800 2002

REAR CYLINDER HEAD
for Suzuki VOLUSIA 800 2002

CYLINDER for Suzuki VOLUSIA 800 2002

CYLINDER
for Suzuki VOLUSIA 800 2002

CRANKCASE for Suzuki VOLUSIA 800 2002

CRANKCASE
for Suzuki VOLUSIA 800 2002

CRANKCASE COVER for Suzuki VOLUSIA 800 2002

CRANKCASE COVER
for Suzuki VOLUSIA 800 2002

CRANKSHAFT for Suzuki VOLUSIA 800 2002

CRANKSHAFT
for Suzuki VOLUSIA 800 2002

STARTER MOTOR CLUTCH for Suzuki VOLUSIA 800 2002

STARTER MOTOR CLUTCH
for Suzuki VOLUSIA 800 2002

CAMSHAFT VALVES for Suzuki VOLUSIA 800 2002

CAMSHAFT - VALVES
for Suzuki VOLUSIA 800 2002

TIMING for Suzuki VOLUSIA 800 2002

TIMING
for Suzuki VOLUSIA 800 2002

CARBURETOR (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

CARBURETOR (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

THROTTLE BODY (MODEL K5) for Suzuki VOLUSIA 800 2002

THROTTLE BODY (MODEL K5)
for Suzuki VOLUSIA 800 2002

AIR FILTER (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

AIR FILTER (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

AIR FILTER (MODEL K5) for Suzuki VOLUSIA 800 2002

AIR FILTER (MODEL K5)
for Suzuki VOLUSIA 800 2002

MUFFLER for Suzuki VOLUSIA 800 2002

MUFFLER
for Suzuki VOLUSIA 800 2002

OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

OIL PUMP / FUEL PUMP (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

OIL PUMP (MODEL K5) for Suzuki VOLUSIA 800 2002

OIL PUMP (MODEL K5)
for Suzuki VOLUSIA 800 2002

FUEL PUMP (MODEL K5) for Suzuki VOLUSIA 800 2002

FUEL PUMP (MODEL K5)
for Suzuki VOLUSIA 800 2002

WATER PUMP for Suzuki VOLUSIA 800 2002

WATER PUMP
for Suzuki VOLUSIA 800 2002

RADIATOR for Suzuki VOLUSIA 800 2002

RADIATOR
for Suzuki VOLUSIA 800 2002

RADIATOR HOSE EXPANSION TANK for Suzuki VOLUSIA 800 2002

RADIATOR HOSE - EXPANSION TANK
for Suzuki VOLUSIA 800 2002

FUEL EVAP SYSTEM (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

FUEL EVAP SYSTEM (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

FUEL EVAP SYSTEM (MODEL K5) for Suzuki VOLUSIA 800 2002

FUEL EVAP SYSTEM (MODEL K5)
for Suzuki VOLUSIA 800 2002

CLUTCH for Suzuki VOLUSIA 800 2002

CLUTCH
for Suzuki VOLUSIA 800 2002

TRANSMISSION (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

TRANSMISSION (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

TRANSMISSION (MODEL K5) for Suzuki VOLUSIA 800 2002

TRANSMISSION (MODEL K5)
for Suzuki VOLUSIA 800 2002

DRIVESHAFT for Suzuki VOLUSIA 800 2002

DRIVESHAFT
for Suzuki VOLUSIA 800 2002

GEAR SHIFTING ASSY (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

GEAR SHIFTING ASSY (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

GEAR SHIFTING ASSY (MODEL K5) for Suzuki VOLUSIA 800 2002

GEAR SHIFTING ASSY (MODEL K5)
for Suzuki VOLUSIA 800 2002

DRIVESHAFT for Suzuki VOLUSIA 800 2002

DRIVESHAFT
for Suzuki VOLUSIA 800 2002

FUEL COCK (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2002

FUEL COCK (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2002

Suzuki 800 VOLUSIA 2002

Choose your Suzuki 800 2002 VOLUSIA model

800 VOLUSIA 2002 VL800K2(E2)

Suzuki VOLUSIA

Displacement: 800 cc
Year: 2002
Model code VL800K2(E2)

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
