FRONT CYLINDER HEAD

REAR CYLINDER HEAD FOR SUZUKI VOLUSIA 800 2002

CYLINDER

Item numbers

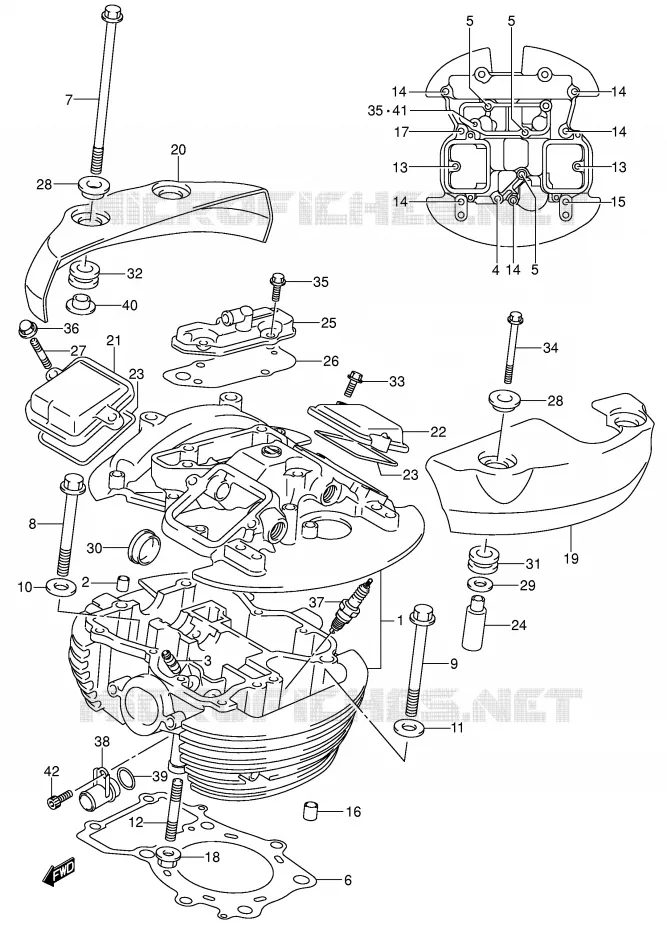

REAR CYLINDER HEAD Suzuki MOTO 800 VOLUSIA 2002 VL800K2(E2)
1
1
2
3
4
5
5
5
6
7
8
9
10
11
11
12
12
13
13
14
14
14
14
14
15
16
17
18
19
19
20
21
22
23
23
24
25
25
26
26
27
28
28
29
30
31
32
33
34
35
35
36
36
37
37
37
37
37
37
38
38
39
40
41
42
1
DISCONTINUE
HEAD ASSY, CYLINDER REAR

11103-41F01-000   1110341F01000

1110341F01000
Not available
1
DISCONTINUE
HEAD ASSY, CYLINDER REAR

11103-41FA0-000   1110341FA0000

1110341FA0000
Not available
2
PIN, L:14
PIN (11X14)

09206-11004-000   0920611004000

0920611004000

Unit Price

3
GUIDE, VALVE(OS:0.3)

11115-38A71-000  

11115-41F70-000
 1111538A71000

Unit Price

4
BOLT (6X50)

09103-06101-000   0910306101000

0910306101000

Unit Price

5
BOLT (6X55)

09103-06102-000   0910306102000

0910306102000

Unit Price

6
GASKET, CYLINDER HEAD RR
GASKET, CYLINDER HEAD REAR

11142-41F00-000   1114241F00000

1114241F00000

Unit Price

7
BOLT(8X250)
BOLT (L:250)

09103-08370-000   0910308370000

0910308370000

Unit Price

8
BOLT (10X155)

09103-10133-000   0910310133000

0910310133000

Unit Price

9
BOLT (10X165)

09103-10134-000   0910310134000

0910310134000

Unit Price

10
WASHER (8.5X24X1.6)
WASHER (8.5X24X1.6)

09160-08130-000   0916008130000

0916008130000

Unit Price

11
WASHER<br />WASHER (10.5X22X2.3)
WASHER
WASHER (10.5X22X2.3)

09160-10039-000   0916010039000

0916010039000

Unit Price

12
STUD BOLT (L:40)
STUD BOLT (L:40)

09108-08144-000   0910808144000

0910808144000

Unit Price

12
DISCONTINUE
STUD BOLT (L:40)

01421-08403-000  

0142108403000
Not available
13
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

14
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

15
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

16
PIN<br />KNOCK PIN
PIN
KNOCK PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

17
BOLT

07120-06303-000  

07120-0630B-000
 0712006303000

Unit Price

18
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

19
CAP, CYLINDER HEAD COVER RL

11173-41F00-000   1117341F00000

1117341F00000

Unit Price

19
CAP, CYLINDER HEAD COVER RR, L
CAP, CYLINDER HEAD COVER RL

11173-41FA0-000   1117341FA0000

1117341FA0000

Unit Price

20
CAP, CYLINDER HEAD COVER RR

11174-41F00-000   1117441F00000

1117441F00000

Unit Price

21
CAP, INSPECTION INTAKE

11175-38A11-000   1117538A11000

1117538A11000

Unit Price

22
CAP, INSPECTION EXHAUST

11176-38A11-000   1117638A11000

1117638A11000

Unit Price

23
GASKET, INSPECTION CAP

11177-38A00-000   1117738A00000

1117738A00000

Unit Price

24
SPACER, CYL HEAD COVER CAP NO.2
SPACER, HEAD COVER CAP

11179-10F10-000   1117910F10000

1117910F10000

Unit Price

25
DISCONTINUE
COVER, BREATHER

11186-41F00-000   1118641F00000

1118641F00000
Not available
25
COVER, BREATHER

11186-41FA0-000   1118641FA0000

1118641FA0000
Not available
26
GASKET, BREATHER COVER

11187-41F00-000  

11187-41F10-000
 1118741F00000

Unit Price

27
STUD BOLT
BOLT, INSPECTION CAP STUD

09108-06102-000   0910806102000

0910806102000

Unit Price

28
WASHER(6.5X18X1.6)<br />WASHER, HEAD COVER CAP UPPER
WASHER(6.5X18X1.6)
WASHER, HEAD COVER CAP UPPER

09160-06084-000   0916006084000

0916006084000

Unit Price

29
WASHER, 9.5X20X1.0
WASHER, HEAD COVER CAP LOWER

09160-09016-000   0916009016000

0916009016000

Unit Price

30
PLUG, CAM SHAFT
PLUG, CYLINDER HEAD

09241-30004-000   0924130004000

0924130004000

Unit Price

31
CUSHION<br />CUSHION, HEAD COVER CAP
CUSHION
CUSHION, HEAD COVER CAP

09320-09016-000   0932009016000

0932009016000

Unit Price

32
CUSHION
CUSHION, HEAD COVER BOLT

09320-13015-000   0932013015000

0932013015000

Unit Price

33
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

34
BOLT<br />BOLT, HEAD COVER CAP
BOLT
BOLT, HEAD COVER CAP

01547-06507-000   0154706507000

0154706507000

Unit Price

35
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

36
NUT

08313-20063-000  

08313-2006A-000
 0831320063000

Unit Price

36
NUT
NUT, INSPECTION CAP

09159-06093-000   0915906093000

0915906093000

Unit Price

37
DPR9EA-9, NGK
SPARK PLUG, DPR9EA-9 (NGK)

09482-00330-000   0948200330000

0948200330000

Unit Price

37
DPR8EA-9, NGK

09482-00331-000  

09482-00334-000
 0948200331000

Unit Price

37
PLUG, SPARK(X24EPR-U9)
SPARK PLUG, X24EPR-U9 (ND)

09482-00335-000   0948200335000

0948200335000

Unit Price

37
DPR7EA-9, NGK
SPARK PLUG, DPR7EA-9 (NGK)

09482-00354-000   0948200354000

0948200354000

Unit Price

37
DPR8EA-9, NGK
SPARK PLUG, DPR8EA-9 (NGK)

09482-00334-000   0948200334000

0948200334000

Unit Price

37
SPARK PLUG, X22EPR-U9 (ND)

09482-00355-000   0948200355000

0948200355000
Not available
38
UNION, CYL HEAD JOINT

17891-41F00-000  

17891-41F10-000
 1789141F00000

Unit Price

39
O RING(D:2.4, ID:15.8)
O RING

09280-16005-000   0928016005000

0928016005000

Unit Price

40
BUSH
BUSH, HEAD COVER BOLT

09301-08007-000   0930108007000

0930108007000

Unit Price

41
GASKET<br />GASKET, BREATHER COVER BOLT
GASKET
GASKET, BREATHER COVER BOLT

09168-06023-000   0916806023000

0916806023000
Not available
42
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
