Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI VOLUSIA 800 2002

STARTER MOTOR CLUTCH

Item numbers

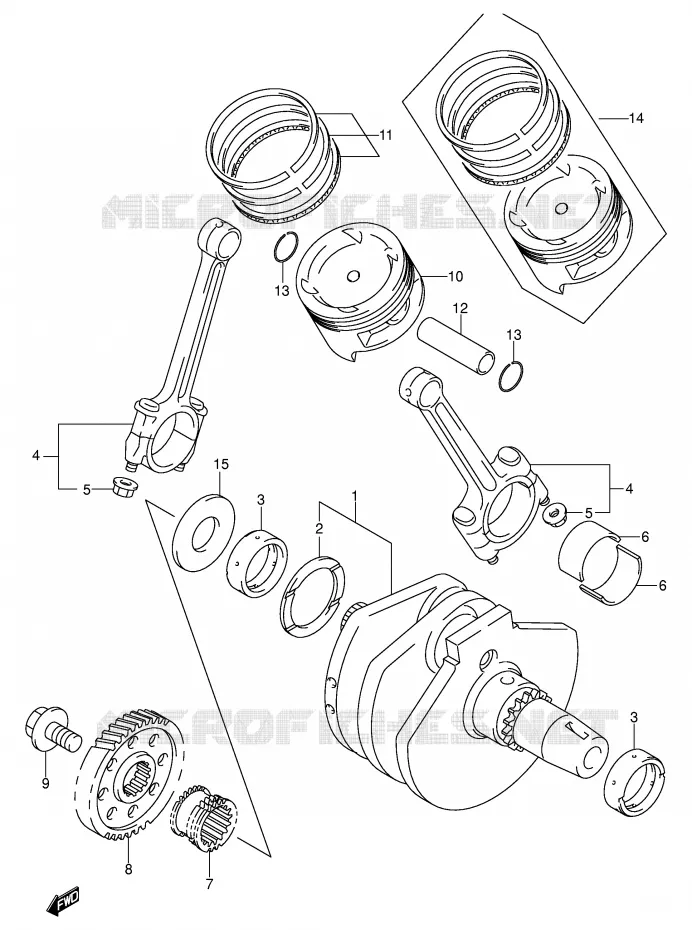

CRANKSHAFT Suzuki MOTO 800 VOLUSIA 2002 VL800K2(E2)
1
2
2
2
2
2
2
2
2
2
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
13
14
15
1
CRANKSHAFT SET

12000-41810-000  

12000-41830-000
 1200041810000

Unit Price

2
WASHER(48.1X64X1.94)<br />WASHER, CRANK THRUST (T:1.94)
WASHER(48.1X64X1.94)
WASHER, CRANK THRUST (T:1.94)

09160-48001-000   0916048001000

0916048001000

Unit Price

2
WASHER(48.1X64X1.96)<br />WASHER, CRANK THRUST (T:1.96)
WASHER(48.1X64X1.96)
WASHER, CRANK THRUST (T:1.96)

09160-48002-000   0916048002000

0916048002000

Unit Price

2
WASHER(48.1X64X1.99)<br />WASHER, CRANK THRUST (T:1.99)
WASHER(48.1X64X1.99)
WASHER, CRANK THRUST (T:1.99)

09160-48003-000   0916048003000

0916048003000

Unit Price

2
WASHER(48.1X64X2.01)<br />WASHER, CRANK THRUST (T:2.01)
WASHER(48.1X64X2.01)
WASHER, CRANK THRUST (T:2.01)

09160-48004-000   0916048004000

0916048004000

Unit Price

2
WASHER(48.1X64X2.04)<br />WASHER, CRANK THRUST (T:2.04)
WASHER(48.1X64X2.04)
WASHER, CRANK THRUST (T:2.04)

09160-48005-000   0916048005000

0916048005000

Unit Price

2
WASHER(48.1X64X2.06)<br />WASHER, CRANK THRUST (T:2.06)
WASHER(48.1X64X2.06)
WASHER, CRANK THRUST (T:2.06)

09160-48006-000   0916048006000

0916048006000

Unit Price

2
WASHER(48.1X64X2.09)<br />WASHER, CRANK THRUST (T:2.09)
WASHER(48.1X64X2.09)
WASHER, CRANK THRUST (T:2.09)

09160-48007-000   0916048007000

0916048007000

Unit Price

2
WASHER(48.1X64X2.11)<br />WASHER, CRANK THRUST (T:2.11)
WASHER(48.1X64X2.11)
WASHER, CRANK THRUST (T:2.11)

09160-48008-000   0916048008000

0916048008000

Unit Price

2
WASHER(48.1X64X2.14)<br />WASHER, CRANK THRUST (T:2.14)
WASHER(48.1X64X2.14)
WASHER, CRANK THRUST (T:2.14)

09160-48009-000   0916048009000

0916048009000

Unit Price

2
WASHER(48.1X64X2.16)
WASHER, CRANK THRUST (T:2.16)

09160-48010-000   0916048010000

0916048010000

Unit Price

3
METAL, CRANKSHAFT
BEARING, CRANKSHAFT

12229-38A00-000   1222938A00000

1222938A00000

Unit Price

4
12160-45C30
ROD ASSY, CONNECTING

12160-45C10-000  

1216045C10000
Not available
5
NUT
NUT

09159-09001-000   0915909001000

0915909001000

Unit Price

6
BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-38E00-0A0   1216438E000A0

1216438E000A0

Unit Price

6
BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-38E00-0B0   1216438E000B0

1216438E000B0

Unit Price

6
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-38E00-0C0   1216438E000C0

1216438E000C0

Unit Price

6
BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0   1216438E000D0

1216438E000D0

Unit Price

6
BEARING, CRANK PIN
BEARING, CRANK PIN (BLUE)

12164-38E00-0E0   1216438E000E0

1216438E000E0

Unit Price

7
SPROCKET, CAM CHAIN DRIVE, R
SPROCKET, CAM CHAIN DRIVE RH

12731-38A00-000   1273138A00000

1273138A00000

Unit Price

8
GEAR, PRIMARY DRIVE

21111-38A00-000   2111138A00000

2111138A00000

Unit Price

9
BOLT (12X28)

09103-12013-000   0910312013000

0910312013000

Unit Price

10
PISTON

12111-41F00-0F0  

12111-41F10-0F0
 1211141F000F0

Unit Price

11
RING SET, PISTON

12140-41F00-000   1214041F00000

1214041F00000

Unit Price

12
PIN, PISTON

12151-24A00-000   1215124A00000

1215124A00000

Unit Price

13
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

14
PISTON SET, OS 0.5

12100-41F00-050  

12100-41F10-050
 1210041F00050

Unit Price

15
WASHER, CRANK THRUST

12652-38A00-000   1265238A00000

1265238A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
