REAR FENDER - LABEL (MODEL L / M / N / P / R) REFER TO FIG.45A(I- 6) FOR MODEL T

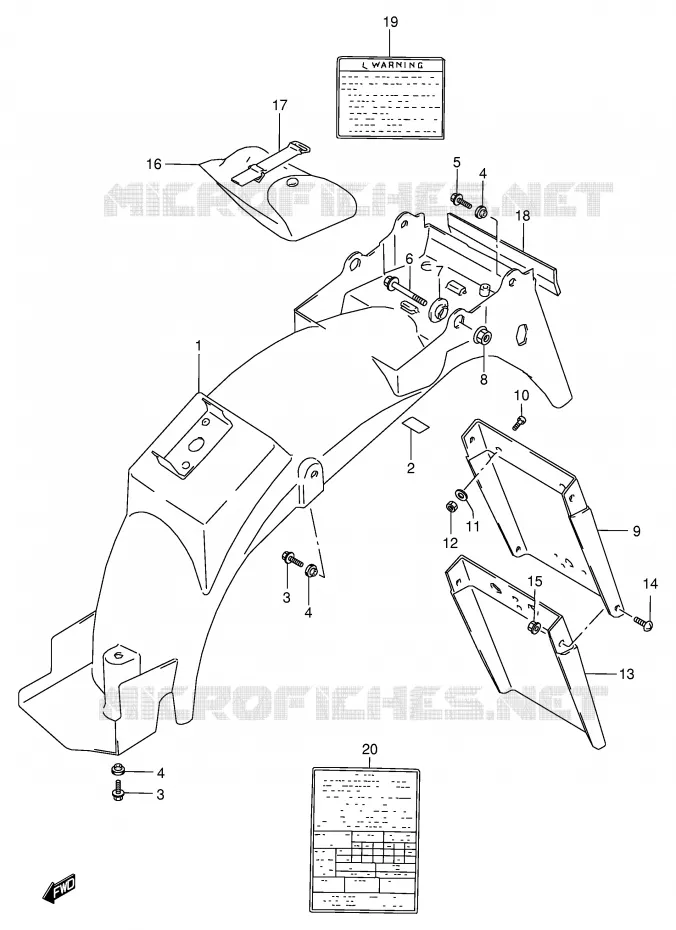

REAR FENDER - LABEL (MODEL T) FOR SUZUKI VX 800 1996

FAIRING (OPTIONAL)

Item numbers

DISCONTINUE
FENDER, REAR

63110-45C21-000 6311045C21000

Not available

FENDER, REAR

63110-45C31-000 6311045C31000

Not available

TAPE, RR FENDER
TAPE, REAR FENDER

63115-06C00-000 6311506C00000

$11,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

LOCK WASHER

09169-06037-000

09169-06011-000

$9,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

BOLT

01550-08553-000

01550-0855A-000

$4,97

Unit Price

WASHER 8.2X26X1.6
WASHER

09169-08045-000 0916908045000

$3,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$4,97

Unit Price

EXTENSION, REAR FENDER

63311-45C10-000 6331145C10000

Not available

EXTENSION, REAR FENDER

63311-45C20-000 6331145C20000

Not available

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

CLUTCH REL WASHER
WASHER

09160-06019-000 0916006019000

$2,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

MUD GUARD, REAR FENDER

63331-48B12-000 6333148B12000

Not available

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

DISCONTINUE
TOOL ASSY

09800-21015-000

Not available

BAND

09462-00072-000

09462-00094-000

$9,97

Unit Price

CUSHION, FENDER

63118-45C00-000 6311845C00000

Not available

LABEL, GENERAL WARNIN

68319-40C00-000

68319-33E02-000

$16,97

Unit Price

LABEL, WARNING SAFETY

68319-40C20-000 6831940C20000

Not available

LABEL, WARNING SAFETY

68319-40C30-000 6831940C30000

Not available

LABEL, TIRE AIR PRESSURE

68332-45C00-000 6833245C00000

Not available

LABEL, TIRE AIR PRESSURE

68332-45C10-000 6833245C10000

Not available

MANUAL, OWNER'S

99011-45C55-GDU 9901145C55GDU

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER - LABEL (MODEL T) of your Suzuki of VX. Let us know if you have any questions.
