CYLINDER

CRANKCASE FOR SUZUKI VX 800 1996

CRANKCASE COVER

Item numbers

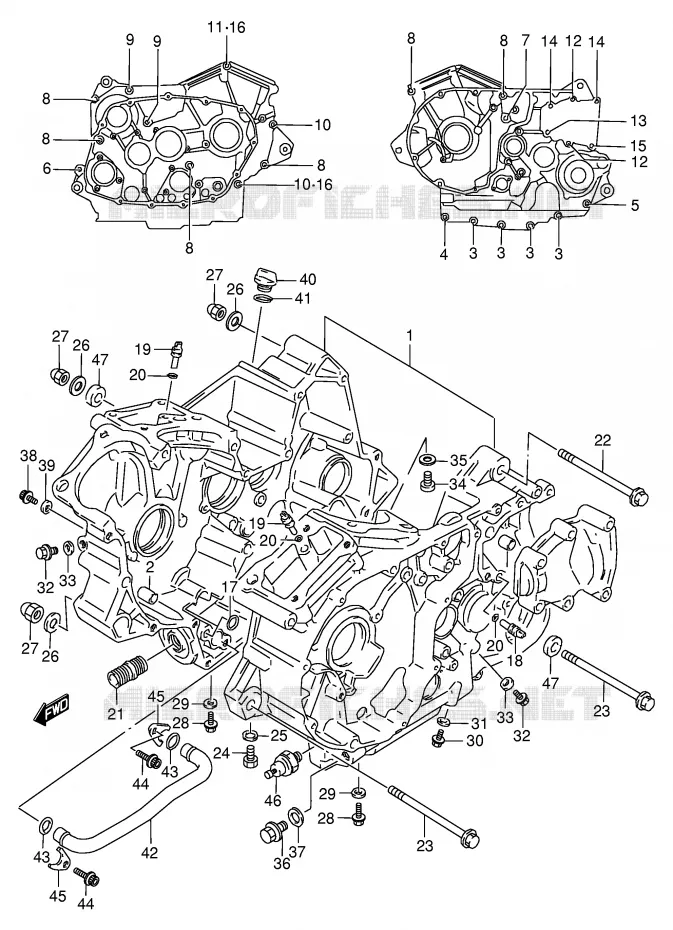

CRANKCASE Suzuki MOTO 800 VX 1996 VX800UT(E4)
1
1
1
2
3
3
3
3
3
3
3
3
4
4
5
5
6
7
7
8
8
8
8
8
8
9
9
10
10
10
10
11
12
12
12
12
13
13
14
14
15
16
16
17
18
19
19
20
20
20
21
22
22
23
23
24
25
26
26
26
26
26
26
27
27
27
28
28
28
28
29
29
30
30
31
32
32
32
32
33
33
33
33
34
35
36
36
36
37
38
38
39
40
41
42
43
43
44
44
44
44
45
45
46
47
47
1
11300-45890
CRANKCASE SET

11300-45861-000  

1130045861000
Not available
1
CRANKCASE SET

11300-45892-000   1130045892000

1130045892000
Not available
2
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

3
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

3
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

4
BOLT

01550-08353-000  

01550-0835B-000
 0155008353000

Unit Price

4
BOLT
BOLT

01550-08357-000   0155008357000

0155008357000

Unit Price

5
BOLT

01550-08553-000  

01550-0855A-000
 0155008553000

Unit Price

5
BOLT
BOLT

01550-08557-000   0155008557000

0155008557000

Unit Price

6
BOLT

01550-08607-000  

01550-0860B-000
 0155008607000

Unit Price

7
BOLT

01550-08753-000  

01550-0875B-000
 0155008753000

Unit Price

7
.BOLT

01517-08758-000   0151708758000

0151708758000
Not available
8
BOLT

01550-08957-000   0155008957000

0155008957000

Unit Price

9
BOLT,ENG MOUNT<br />BOLT (8X120)
BOLT, ENG MOUNT
BOLT (8X120)

09103-08109-000   0910308109000

0910308109000

Unit Price

10
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

10
BOLT (8X105)
BOLT (8X105)

09103-08133-000   0910308133000

0910308133000

Unit Price

11
BOLT(8X160)

09103-08096-000  

09103-08110-000
 0910308096000

Unit Price

12
BOLT

01550-08403-000  

01550-0840B-000
 0155008403000

Unit Price

12
BOLT
BOLT

01550-08407-000   0155008407000

0155008407000
Not available
13
BOLT

01550-08453-000  

01550-0845A-000
 0155008453000

Unit Price

13
BOLT
BOLT

01550-08457-000   0155008457000

0155008457000

Unit Price

14
BOLT
BOLT

01550-08557-000   0155008557000

0155008557000

Unit Price

15
BOLT

01550-08657-000  

01550-08653-000
 0155008657000

Unit Price

16
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

17
O RING(D:1.9,ID:12.6)<br />O RING, CRANKCASE
O RING(D:1.9, ID:12.6)
O RING, CRANKCASE

09280-12009-000   0928012009000

0928012009000

Unit Price

18
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

19
JET,OIL<br />JET, OIL GALLERY
JET, OIL
JET, OIL GALLERY

09493-28010-000   0949328010000

0949328010000

Unit Price

20
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

21
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

22
BOLT<br />BOLT (10X130)
BOLT
BOLT (10X130)

09103-10122-000   0910310122000

0910310122000

Unit Price

22
BOLT (10X130)

09103-10237-000   0910310237000

0910310237000

Unit Price

23
DISCONTINUE
BOLT (10X170)

09103-10224-000  

0910310224000
Not available
24
BOLT

01500-12203-000  

01500-1220B-000
 0150012203000

Unit Price

25
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
26
WASHER

08322-01103-000  

08322-0110B-000
 0832201103000

Unit Price

27
DISCONTINUE
NUT

09159-10052-000   0915910052000

0915910052000
Not available
28
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

28
BOLT
PLUG, OIL GALLERY

01550-08127-000   0155008127000

0155008127000

Unit Price

29
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

30
CRANK DRAIN PLUG<br />PLUG, OIL GALLERY
CRANK DRAIN PLUG
PLUG, OIL GALLERY

09247-10001-000   0924710001000

0924710001000

Unit Price

30
PLUG
PLUG, OIL GALLERY

09247-10008-000   0924710008000

0924710008000

Unit Price

31
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

32
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

32
BOLT

01550-06107-000  

01550-06123-000
 0155006107000

Unit Price

33
GASKET<br />WASHER
GASKET
WASHER

09168-06024-000   0916806024000

0916806024000

Unit Price

33
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
34
PLUG<br />PLUG, OIL GALLERY
PLUG
PLUG, OIL GALLERY

09248-16008-000   0924816008000

0924816008000

Unit Price

35
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

36
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

36
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

37
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

38
DISCONTINUE
PLUG, OIL GALLERY

07120-08123-000  

0712008123000
Not available
38
PLUG, OIL GALLERY

07120-08127-000   0712008127000

0712008127000
Not available
39
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

40
PLUG, ENG OIL FILLER

09259-20017-000  

09259-20007-000
 0925920017000

Unit Price

41
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

42
PIPE, OIL GALL
PIPE, OIL GALLERY

11451-38A00-000   1145138A00000

1145138A00000

Unit Price

43
O RING(D:3.1, ID:14.8)
O RING

09280-15008-000   0928015008000

0928015008000

Unit Price

44
BOLT

07120-06123-000  

07120-0612B-000
 0712006123000

Unit Price

44
SCREW
BOLT

07120-06127-000   0712006127000

0712006127000

Unit Price

45
CLAMP, OIL PIPE
CLAMP

11461-38A00-000   1146138A00000

1146138A00000

Unit Price

46
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

47
DISCONTINUE
SPACER, ENGINE MOUNTING

41932-45C00-000   4193245C00000

4193245C00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of VX. Let us know if you have any questions.
