Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD

CRANKCASE FOR SUZUKI GSX-S 950 2023

CRANKCASE (2)

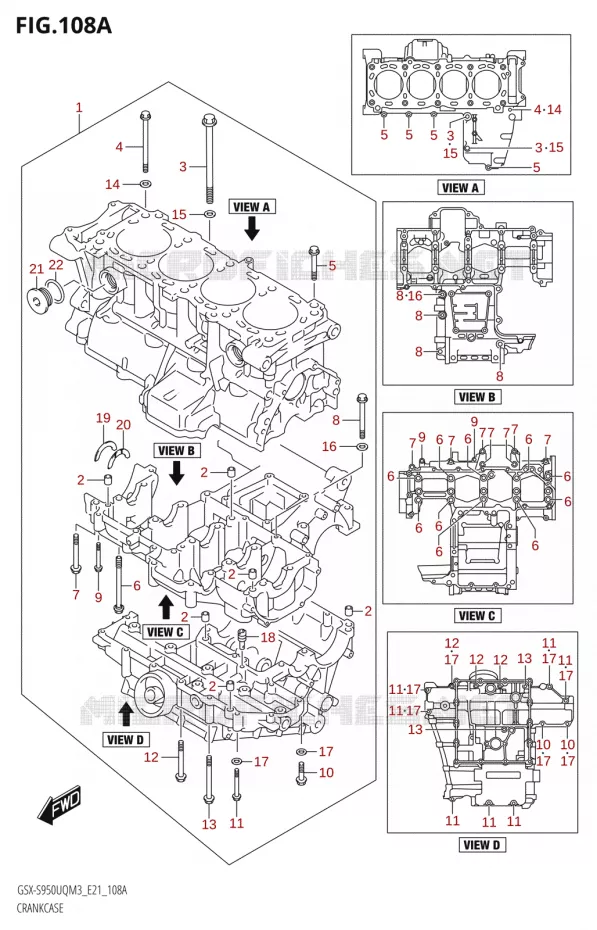

CRANKCASE Suzuki MOTO 950 GSX-S 2023 GSX-S950WQM3 (E21)
1
CRANKCASE SET

11301-04860-000   1130104860000

1130104860000

Unit Price

2
.PIN,CRANKCASE
.PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
.BOLT(8X120)

09106-08198-000   0910608198000

0910608198000

Unit Price

4
.BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

5
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

6
.BOLT(9X95)
.BOLT(9X95)

09103-09012-000   0910309012000

0910309012000

Unit Price

7
BOLT(8X55)
BOLT(8X55)

09103-08339-000   0910308339000

0910308339000

Unit Price

8
.BOLT

07120-0865A-000   071200865A000

071200865A000

Unit Price

9
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

10
.BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

11
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

12
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

13
.BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

14
GASKET<br />.GASKET(5.8X13X1.2)
GASKET
.GASKET(5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
.GASKET(8.2X14X1)
.GASKET(8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

16
.GASKET(8.2X14X1)
.GASKET(8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

17
GASKET<br />.GASKET(5.8X13X1.2)
GASKET
.GASKET(5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
18
JET(140)<br />.JET(#140)
JET(140)
.JET(#140)

09493-28012-000   0949328012000

0949328012000

Unit Price

19
BEARING,CRANK THRUST(GREEN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(GREEN)
.BEARING, CRANK THRUST

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

20
BEARING,CRANK THRUST(BROWN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BROWN)
.BEARING, CRANK THRUST

12228-48B00-0B0   1222848B000B0

1222848B000B0

Unit Price

20
BEARING LEFT RED<br />.BEARING,CRANK THRUST
BEARING LEFT RED
.BEARING, CRANK THRUST

12228-48B00-0C0   1222848B000C0

1222848B000C0

Unit Price

20
BEARING,CRANK THRUST(YELLOW)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(YELLOW)
.BEARING, CRANK THRUST

12228-48B00-0D0   1222848B000D0

1222848B000D0

Unit Price

20
BEARING,CRANK THRUST(GREEN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(GREEN)
.BEARING, CRANK THRUST

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

20
BEARING,CRANK THRUST(BLUE)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BLUE)
.BEARING, CRANK THRUST

12228-48B00-0F0   1222848B000F0

1222848B000F0

Unit Price

20
BEARING,CRANK THRUST(ORANGE)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(ORANGE)
.BEARING, CRANK THRUST

12228-48B00-0G0   1222848B000G0

1222848B000G0

Unit Price

20
BEARING,CRANK THRUST(BLACK)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BLACK)
.BEARING, CRANK THRUST

12228-48B00-0H0   1222848B000H0

1222848B000H0

Unit Price

21
.PLUG, WATER JACKET

11318-35F00-000   1131835F00000

1131835F00000

Unit Price

22
.O-RING(D:3.1, ID:19.4)

09280-20002-000   0928020002000

0928020002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki GSX-S 950 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 950 GSX-S 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 950 GSX-S 2023

Select your Suzuki 2023 model

950 GSX-S 2023 GSX-S950WQM3 (E21)

GSX-S 950

Suzuki GSX-S

Displacement: 950 cc
Year: 2023
Model code GSX-S950WQM3 (E21)
Color: Metallic Triton Blue (YSF) / Metallic Mat Sword Silver (QKA) / Glass Sparkle Black (YVB)
