RADIATOR

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI GSX-S 950 2023

ANTI POLLUTION SYSTEM

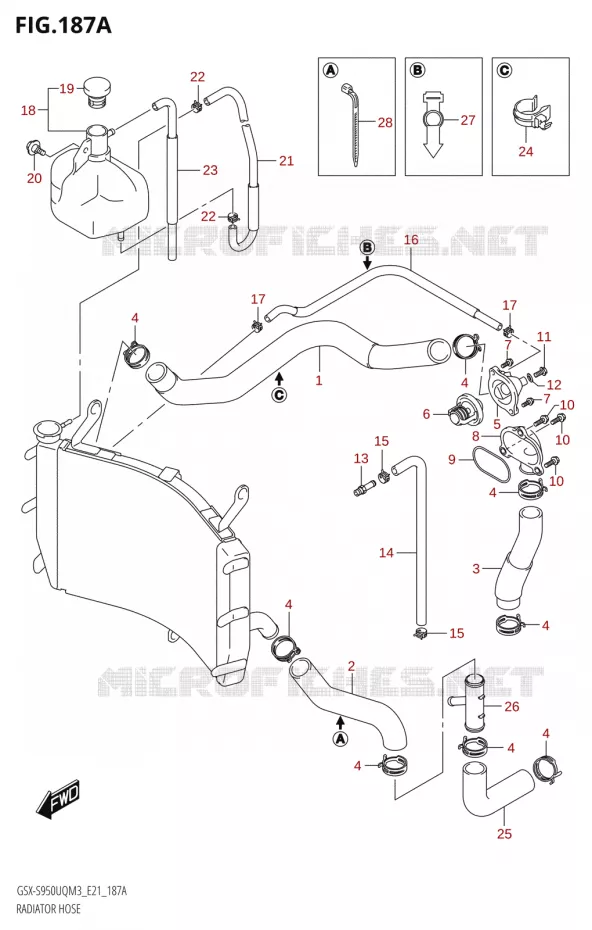

RADIATOR HOSE - EXPANSION TANK Suzuki MOTO 950 GSX-S 2023 GSX-S950WQM3 (E21)
1
HOSE, RDTR INLET

17851-04K10-000   1785104K10000

1785104K10000

Unit Price

2
HOSE, RDTR OUTLET

17852-04K00-000   1785204K00000

1785204K00000

Unit Price

3
HOSE, CYLINDER INLET

17853-40F10-000   1785340F10000

1785340F10000

Unit Price

4
CLAMP, WATER HOSE
CLAMP

09401-29001-000   0940129001000

0940129001000

Unit Price

5
COVER,THERMOSTAT
COVER, THERMOSTAT

17661-35F00-000   1766135F00000

1766135F00000

Unit Price

6
THERMOSTAT COMP, WATER
THERMOSTAT, WATER

17670-06G61-000   1767006G61000

1767006G61000

Unit Price

7
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

8
CONNECTOR,CYLINDER WATER INLET
CONNECTOR, CYLINDER WATER INLET

17861-33E20-000   1786133E20000

1786133E20000

Unit Price

9
O RING,CYL WATER CONNECTOR<br />O-RING
O RING, CYL WATER CONNECTOR
O-RING

17863-33E00-000   1786333E00000

1786333E00000

Unit Price

10
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

11
UNION BOLT,AIR VENT
UNION BOLT, AIR VENT

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

12
GASKET(6.4X11.5X0.84)
GASKET(6.4X11.5X0.84)

09168-06026-000   0916806026000

0916806026000

Unit Price

13
UNION
UNION

09362-09011-000   0936209011000

0936209011000

Unit Price

14
HOSE, WATER BYPASS

17854-04K10-000   1785404K10000

1785404K10000

Unit Price

15
CLIP<br />CLAMP
CLIP
CLAMP

09401-12414-000   0940112414000

0940112414000

Unit Price

16
HOSE COMP, WATER AIR BLEED
HOSE, WATER AIR BLEED

17857-04K10-000   1785704K10000

1785704K10000

Unit Price

17
(CA)CLIP<br />CLIP(ID:10.5,H:8)
(CA)CLIP
CLIP(ID:10.5, H:8)

09401-10409-000   0940110409000

0940110409000

Unit Price

18
TANK ASSY, RESERVOIR

17910-04K00-000   1791004K00000

1791004K00000

Unit Price

19
.CAP, WATER RESERVOIR TANK

17931-31J00-000   1793131J00000

1793131J00000

Unit Price

20
BOLT
BOLT(6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

21
HOSE COMP, RSVR TANK INLET
HOSE, RSVR TANK INLET

17981-04K10-000   1798104K10000

1798104K10000

Unit Price

22
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
23
HOSE, RSVR TANK OVER FLOW

17982-04K00-000   1798204K00000

1798204K00000

Unit Price

24
CLAMP

09408-00321-000   0940800321000

0940800321000

Unit Price

25
HOSE, RDTR OUTLET NO.2

17855-04K00-000   1785504K00000

1785504K00000

Unit Price

26
PIPE, WATER HOSE JOINT

17881-04K00-000   1788104K00000

1788104K00000

Unit Price

27
BAND, WATER HOSE

17891-04K00-000   1789104K00000

1789104K00000

Unit Price

28
CLAMP,WIRING HARNESS<br />CLAMP(L:165)
CLAMP, WIRING HARNESS
CLAMP(L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE - EXPANSION TANK of your Suzuki GSX-S 950 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 950 GSX-S 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 950 GSX-S 2023

Select your Suzuki 2023 model

950 GSX-S 2023 GSX-S950WQM3 (E21)

GSX-S 950

Suzuki GSX-S

Displacement: 950 cc
Year: 2023
Model code GSX-S950WQM3 (E21)
Color: Metallic Triton Blue (YSF) / Metallic Mat Sword Silver (QKA) / Glass Sparkle Black (YVB)
