RIGHT FRONT FORK LEG FOR SUZUKI GSX-S 950 2023

FRONT LEFT FORK LEG

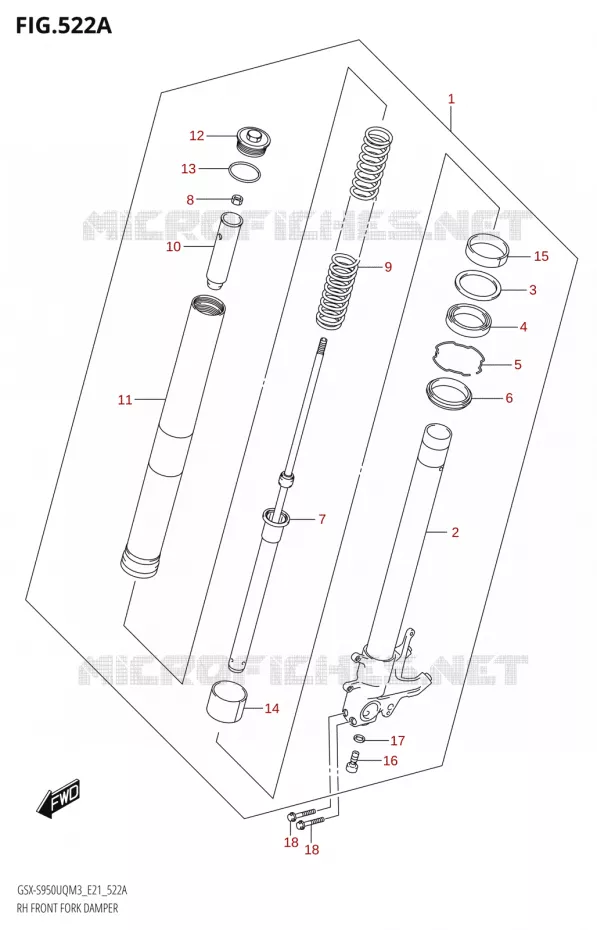

RIGHT FRONT FORK LEG Suzuki MOTO 950 GSX-S 2023 GSX-S950WQM3 (E21)
1
DAMPER ASSY, R

51103-48KA0-000   5110348KA0000

5110348KA0000
Not available
2
.TUBE, INNER RH

51110-48KA0-000   5111048KA0000

5111048KA0000
Not available
3
.WASHER
.WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

4
.SEAL, OIL

51153-44G00-000   5115344G00000

5115344G00000

Unit Price

5
.RING,STOPPER
.RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

6
.SEAL,DUST
.SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

7
.CYLINDE, RH

51146-48KA0-000   5114648KA0000

5114648KA0000
Not available
8
.NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

9
.SPRING

51171-48KA0-000   5117148KA0000

5117148KA0000
Not available
10
.SPACER, SPRING

51176-40F30-000   5117640F30000

5117640F30000

Unit Price

11
.TUBE, OUTER

51131-48KA0-000   5113148KA0000

5113148KA0000
Not available
12
.CAP

51351-48KA0-000   5135148KA0000

5135148KA0000

Unit Price

13
.O-RING

51117-39G20-000   5111739G20000

5111739G20000

Unit Price

14
.PISTON

51112-31J00-000   5111231J00000

5111231J00000

Unit Price

15
.METAL, SLIDE

51152-31J00-000   5115231J00000

5115231J00000

Unit Price

16
.BOLT

51147-05H00-000   5114705H00000

5114705H00000

Unit Price

17
.GASKET
.GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

18
BOLT

51166-24F60-000   5116624F60000

5116624F60000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RIGHT FRONT FORK LEG of your Suzuki GSX-S 950 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 950 GSX-S 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 950 GSX-S 2023

Select your Suzuki 2023 model

950 GSX-S 2023 GSX-S950WQM3 (E21)

GSX-S 950

Suzuki GSX-S

Displacement: 950 cc
Year: 2023
Model code GSX-S950WQM3 (E21)
Color: Metallic Triton Blue (YSF) / Metallic Mat Sword Silver (QKA) / Glass Sparkle Black (YVB)
