Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LABEL (MODEL K1)

SEAT FOR SUZUKI TL-S 1000 1997

BACKREST ASSY (OPTIONAL)

Item numbers

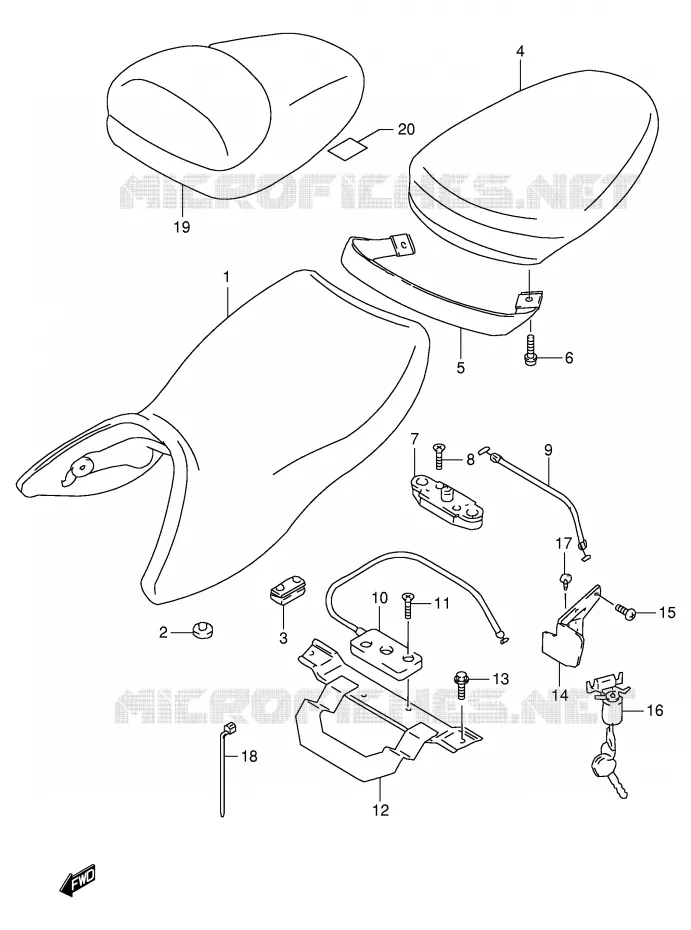

SEAT Suzuki MOTO 1000 TL-S 1997 TL1000SV(E2)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
19
19
19
19
19
20
1
DISCONTINUE<br />SEAT ASSY (BLACK)
DISCONTINUE
SEAT ASSY (BLACK)

45100-02F10-R42   4510002F10R42

4510002F10R42
Not available
2
CENTER STAND STOP<br />CUSHION, FRONT
CENTER STAND STOP
CUSHION, FRONT

09321-10002-000   0932110002000

0932110002000

Unit Price

2
DISCONTINUE
CUSHION, REAR

45148-36C00-000  

4514836C00000
Not available
3
CUSHION,SEAT(40X20X15)<br />CUSHION
CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000   4514931300000

4514931300000

Unit Price

4
DISCONTINUE<br />SEAT ASSY, PILLION (BLACK)
DISCONTINUE
SEAT ASSY, PILLION (BLACK)

45300-02F10-R42  

4530002F10R42
Not available
5
BAND ASSY, SEAT (BLACK)

45180-02F00-R42   4518002F00R42

4518002F00R42
Not available
6
BOLT
BOLT

01550-06207-000   0155006207000

0155006207000

Unit Price

7
BRACKET, SEAT SUPPORT

45220-20A01-000  

45220-47H00-000
 4522020A01000

Unit Price

8
SCREW

02122-06303-000  

02122-0630B-000
 0212206303000

Unit Price

9
CABLE, SEAT LOCK
CABLE, SEAT LOCK

45280-38400-000   4528038400000

4528038400000

Unit Price

10
BRACKET,SEAT SUPPORT FR<br />BRACKET, SEAT FRONT
BRACKET, SEAT SUPPORT FR
BRACKET, SEAT FRONT

45220-02F00-000   4522002F00000

4522002F00000

Unit Price

11
SCREW

02122-06253-000  

02122-0625B-000
 0212206253000

Unit Price

12
BRACKET, SEAT LOCK

45120-02F00-000   4512002F00000

4512002F00000
Not available
13
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
14
DISCONTINUE<br />BRACKET, SEAT LOCK
DISCONTINUE
BRACKET, SEAT LOCK

45289-02F00-000   4528902F00000

4528902F00000
Not available
15
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

16
DISCONTINUE

95700-02820-000  

9570002820000
Not available
17
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

18
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

19
DISCONTINUE
BOX, SEAT TAIL (GREEN)

45550-02F00-1UH   4555002F001UH

4555002F001UH
Not available
19
DISCONTINUE
BOX, SEAT TAIL (RED)

45550-02F00-28V   4555002F0028V

4555002F0028V
Not available
19
DISCONTINUE
BOX, SEAT TAIL (BLACK)

45550-02F00-33J   4555002F0033J

4555002F0033J
Not available
19
BOX, SEAT TAIL (ORANGE)

45550-02F00-Y0W   4555002F00Y0W

4555002F00Y0W
Not available
19
BOX, SEAT TAIL (SILVER)

45550-02F00-Y2D   4555002F00Y2D

4555002F00Y2D
Not available
19
BOX, SEAT TAIL (YELLOW)

45550-02F00-Y3G   4555002F00Y3G

4555002F00Y3G
Not available
19
B0X, SEAT TAIL (BLUE)

45550-02F00-Y7H   4555002F00Y7H

4555002F00Y7H
Not available
19
BOX, SEAT TAIL (BLACK)
BOX, SEAT TAIL (BLACK)

45550-02F00-Y7L   4555002F00Y7L

4555002F00Y7L
Not available
19
BOX, SEAT TAIL (RED)

45550-02F00-Y7M   4555002F00Y7M

4555002F00Y7M
Not available
19
DISCONTINUE
BOX, SEAT TAIL (YELLOW)

45550-02F00-Y9H   4555002F00Y9H

4555002F00Y9H
Not available
19
BOX, SEAT TAIL (BLUE)

45550-02F00-YC2   4555002F00YC2

4555002F00YC2
Not available
20
DISCONTINUE<br />PROTECTOR, COVER (5PIECE)
DISCONTINUE
PROTECTOR, COVER (5PIECE)

45559-33E00-000   4555933E00000

4555933E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
