Finish line

Parts catalogue

Parts diagram

CAM SHAFT / VALVE

TIMING FOR SUZUKI TL-S 1000 1997

THROTTLE BODY (MODEL V) REFER TO FIG.10A(C-14) FOR MODEL W/X/Y/K1

Item numbers

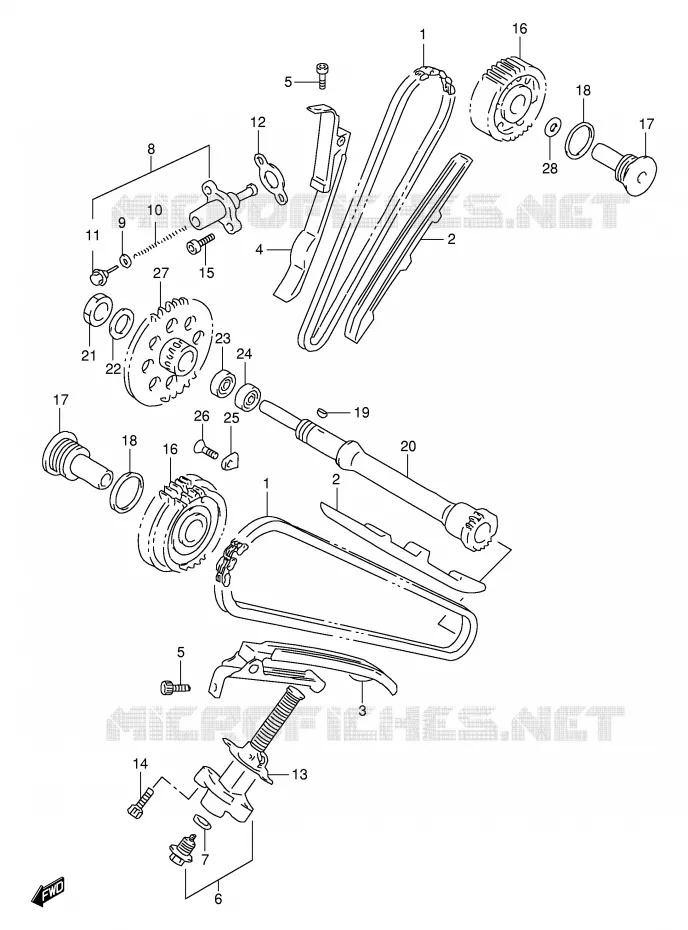

TIMING Suzuki MOTO 1000 TL-S 1997 TL1000SV(E2)
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
20
21
22
23
24
24
25
26
26
27
27
28
28
28
28
28
28
1
CHAIN, CAM SHAFT DRIVE
CHAIN, CAM SHAFT DRIVE

12760-02F00-000   1276002F00000

1276002F00000

Unit Price

2
DISCONTINUE<br />GUIDE, CAM CHAIN
DISCONTINUE
GUIDE, CAM CHAIN

12771-02F00-000   1277102F00000

1277102F00000
Not available
3
TENSIONER,CAM CHAIN FR<br />TENSIONER, FRONT CAM CHAIN
TENSIONER, CAM CHAIN FR
TENSIONER, FRONT CAM CHAIN

12810-02F10-000   1281002F10000

1281002F10000

Unit Price

3
TENSIONER, FRONT CAM CHAIN

12810-02F00-000   1281002F00000

1281002F00000
Not available
4
TENSIONER, REAR CAM CHAIN

12815-02F00-000   1281502F00000

1281502F00000
Not available
4
DISCONTINUE<br />TENSIONER, REAR CAM CHAIN
DISCONTINUE
TENSIONER, REAR CAM CHAIN

12815-02F10-000   1281502F10000

1281502F10000
Not available
5
BOLT

07120-06123-000  

07120-0612B-000
 0712006123000

Unit Price

5
BOLT

07130-06163-000  

07130-0616B-000
 0713006163000

Unit Price

6
DISCONTINUE<br />ADJUSTER ASSY, FRONT TENSIONER
DISCONTINUE
ADJUSTER ASSY, FRONT TENSIONER

12832-24A01-000   1283224A01000

1283224A01000
Not available
7
GASKET, 12 X 21 X 2
GASKET

09168-12018-000  

0916812018000
Not available
8
ADJUSTER ASSY,TENSIONER<br />ADJUSTER ASSY, REAR TENSIONER
ADJUSTER ASSY, TENSIONER
ADJUSTER ASSY, REAR TENSIONER

12830-30A01-000   1283030A01000

1283030A01000

Unit Price

9
O RING
O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

10
SPRING
SPRING

12833-30A01-000   1283330A01000

1283330A01000

Unit Price

11
PLUG,ADJUSTER<br />PLUG
PLUG, ADJUSTER
PLUG

12834-02A00-000   1283402A00000

1283402A00000

Unit Price

12
GASKET,TENSIONER ADJUSTER<br />GASKET
GASKET, TENSIONER ADJUSTER
GASKET

12837-19B10-000   1283719B10000

1283719B10000

Unit Price

13
GASKET,TENSIONER ADJUSTER<br />GASKET
GASKET, TENSIONER ADJUSTER
GASKET

12837-24A10-000   1283724A10000

1283724A10000

Unit Price

14
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

15
BOLT

07130-06203-000  

07130-0620B-000
 0713006203000

Unit Price

16
DISCONTINUE

12750-02F00-000  

1275002F00000
Not available
17
SHAFT, IDLER NO.2
SHAFT, IDLER NO.2

12755-02F01-000   1275502F01000

1275502F01000

Unit Price

18
GASKET
GASKET

09168-26001-000   0916826001000

0916826001000

Unit Price

19
KEY
KEY

09421-04004-000   0942104004000

0942104004000

Unit Price

20
DISCONTINUE<br />SHAFT, IDLER
DISCONTINUE
SHAFT, IDLER

12716-02F00-000   1271602F00000

1271602F00000
Not available
21
SPR MOUNT DRUM NUT<br />NUT
SPR MOUNT DRUM NUT
NUT

09140-16005-000   0914016005000

0914016005000

Unit Price

22
SHIM(16X26X1.5)<br />WASHER
SHIM(16X26X1.5)
WASHER

09181-16212-000   0918116212000

0918116212000

Unit Price

23
BEARING<br />BEARING, RH
BEARING
BEARING, RH

08113-63030-000   0811363030000

0811363030000

Unit Price

24
BALL BEARING
BEARING, LH

08113-60050-000   0811360050000

0811360050000

Unit Price

24
DISCONTINUE<br />BEARING, LH
DISCONTINUE
BEARING, LH

09262-25123-000   0926225123000

0926225123000
Not available
25
RETAINER<br />RETAINER, BEARING
RETAINER
RETAINER, BEARING

24741-20A00-000   2474120A00000

2474120A00000

Unit Price

26
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

26
SCREW
SCREW

09126-06011-000   0912606011000

0912606011000

Unit Price

27
DISCONTINUE

12731-02F00-000  

1273102F00000
Not available
28
SHIM,15X24X0.9<br />SHIM, CAM CHAIN IDLER,T:0.9
SHIM, 15X24X0.9
SHIM, CAM CHAIN IDLER, T:0.9

09181-15164-000   0918115164000

0918115164000

Unit Price

28
SHIM(15X24X1)<br />SHIM, CAM CHAIN IDLER,T:1
SHIM(15X24X1)
SHIM, CAM CHAIN IDLER, T:1

09181-15166-000   0918115166000

0918115166000

Unit Price

28
SHIM(15X24X1.1)<br />SHIM, CAM CHAIN IDLER,T:1.1
SHIM(15X24X1.1)
SHIM, CAM CHAIN IDLER, T:1.1

09181-15172-000   0918115172000

0918115172000

Unit Price

28
SHIM(15X24X1.2)<br />SHIM, CAM CHAIN IDLER,T:1.2
SHIM(15X24X1.2)
SHIM, CAM CHAIN IDLER, T:1.2

09181-15176-000   0918115176000

0918115176000

Unit Price

28
SHIM(15X24X1.3)<br />SHIM, CAM CHAIN IDLER,T:1.3
SHIM(15X24X1.3)
SHIM, CAM CHAIN IDLER, T:1.3

09181-15181-000   0918115181000

0918115181000

Unit Price

28
SHIM(15X24X1.4)<br />SHIM, CAM CHAIN IDLER,T:1.4
SHIM(15X24X1.4)
SHIM, CAM CHAIN IDLER, T:1.4

09181-15182-000   0918115182000

0918115182000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
