THROTTLE BODY (MODEL V) FOR SUZUKI TL-S 1000 1997

THROTTLE BODY (MODEL W / X / Y / K1)

Item numbers

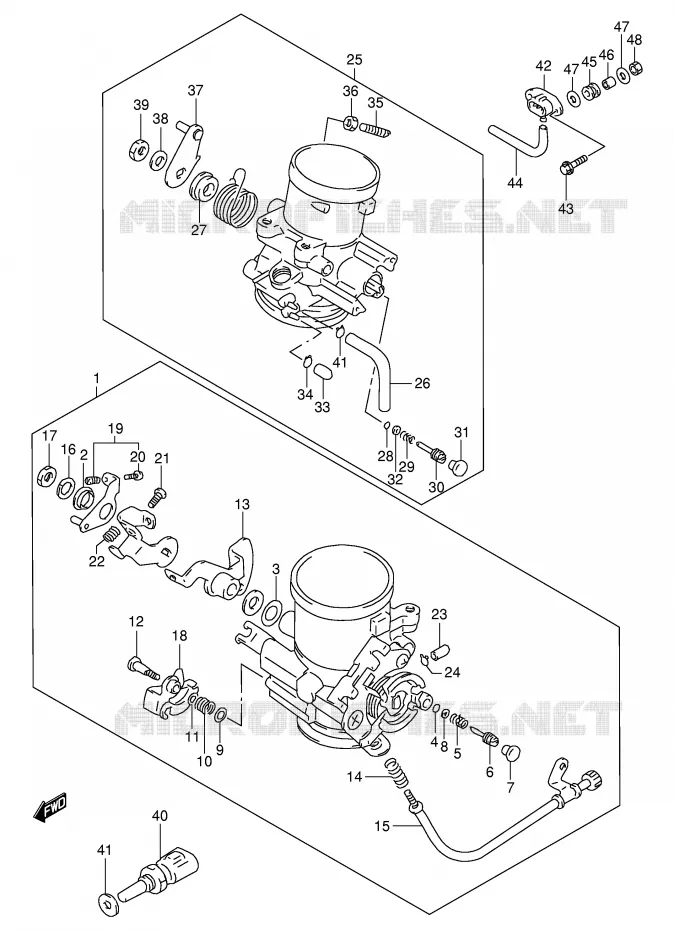

THROTTLE BODY (MODEL V) Suzuki MOTO 1000 TL-S 1997 TL1000SV(E2)
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
47
48
1
DISCONTINUE
BODY ASSY, THROTTLE FRONT

13410-02F00-000   1341002F00000

1341002F00000
Not available
1
BODY ASSY, THROTTLE FRONT

13410-02F10-000   1341002F10000

1341002F10000
Not available
1
BODY ASSY, THROTTLE FRONT

13410-02F30-000   1341002F30000

1341002F30000
Not available
2
RING

95569-82140-000   9556982140000

9556982140000
Not available
3
PACKING

13556-02F00-000   1355602F00000

1355602F00000
Not available
4
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

5
SPRING

13494-09410-000   1349409410000

1349409410000

Unit Price

6
SCREW,AIR<br />ADJUST SCREW
SCREW, AIR
ADJUST SCREW

13269-16700-000   1326916700000

1326916700000

Unit Price

7
PLUG

13357-36A00-000   1335736A00000

1335736A00000

Unit Price

8
WASHER
WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

9
DISCONTINUE
WASHER

13606-38800-000   1360638800000

1360638800000
Not available
10
DISCONTINUE
SPRING

13426-02F00-000   1342602F00000

1342602F00000
Not available
11
DISCONTINUE
RING

13424-02F00-000   1342402F00000

1342402F00000
Not available
12
DISCONTINUE
SCREW

13548-20E20-000   1354820E20000

1354820E20000
Not available
13
DISCONTINUE
LEVER ASSY

13541-02F00-000   1354102F00000

1354102F00000
Not available
14
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

15
DISCONTINUE
ADJUSTER ASSY

13270-02F00-000   1327002F00000

1327002F00000
Not available
16
WASHER
WASHER

95559-82140-000   9555982140000

9555982140000
Not available
17
NUT

13607-37010-000   1360737010000

1360737010000

Unit Price

18
LEVER ASSY

13421-02F00-000   1342102F00000

1342102F00000
Not available
19
SCREW SET, ADJUST

13601-60AT0-000   1360160AT0000

1360160AT0000
Not available
20
SCREW

02112-04203-000  

02112-0420A-000
 0211204203000

Unit Price

21
DISCONTINUE
SCREW

13602-42E10-000   1360242E10000

1360242E10000
Not available
22
SPRING
SPRING

13375-60A00-000   1337560A00000

1337560A00000

Unit Price

23
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

24
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

25
BODY ASSY, THROTTLE REAR

13420-02F00-000   1342002F00000

1342002F00000
Not available
25
BODY ASSY, THROTTLE REAR

13420-02F10-000   1342002F10000

1342002F10000
Not available
25
BODY ASSY, THROTTLE REAR

13420-02F30-000   1342002F30000

1342002F30000
Not available
26
HOSE(L:425)
HOSE(L:425)

13683-10F60-000  

13683-10F61-000
 1368310F60000

Unit Price

27
RING

13615-02F00-000   1361502F00000

1361502F00000
Not available
28
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

29
SPRING

13494-09410-000   1349409410000

1349409410000

Unit Price

30
SCREW,AIR<br />ADJUST SCREW
SCREW, AIR
ADJUST SCREW

13269-16700-000   1326916700000

1326916700000

Unit Price

31
PLUG

13357-36A00-000   1335736A00000

1335736A00000

Unit Price

32
WASHER
WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

33
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

34
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

35
SCREW
SCREW

13605-47080-000   1360547080000

1360547080000

Unit Price

36
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

37
DISCONTINUE
LEVER ASSY

13542-02F00-000   1354202F00000

1354202F00000
Not available
38
WASHER
WASHER

95559-82140-000   9555982140000

9555982140000
Not available
39
NUT

13607-37010-000   1360737010000

1360737010000

Unit Price

40
SENSOR,WATER TEMP<br />SENSOR, WATER TEMPERATURE
SENSOR, WATER TEMP
SENSOR, WATER TEMPERATURE

13650-51G10-000   1365051G10000

1365051G10000

Unit Price

41
GASKET,12.2X21X0.8<br />GASKET
GASKET, 12.2X21X0.8
GASKET

09168-12016-000   0916812016000

0916812016000

Unit Price

42
DISCONTINUE<br />SENSOR, AIR PRESSURE
DISCONTINUE
SENSOR, AIR PRESSURE

18590-80C50-000   1859080C50000

1859080C50000
Not available
43
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

44
HOSE
HOSE

09355-40805-600   0935540805600

0935540805600

Unit Price

45
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

46
SPACER
SPACER

09180-06310-000   0918006310000

0918006310000

Unit Price

47
WASHER 6.5X10X1.2<br />WASHER
WASHER 6.5X10X1.2
WASHER

09160-06077-000   0916006077000

0916006077000

Unit Price

48
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (MODEL V) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
