INDICATORS

TAIL LIGHT (MODEL V) FOR SUZUKI TL-S 1000 1997

TAIL LIGHT (MODEL W / X / Y / K1)

Item numbers

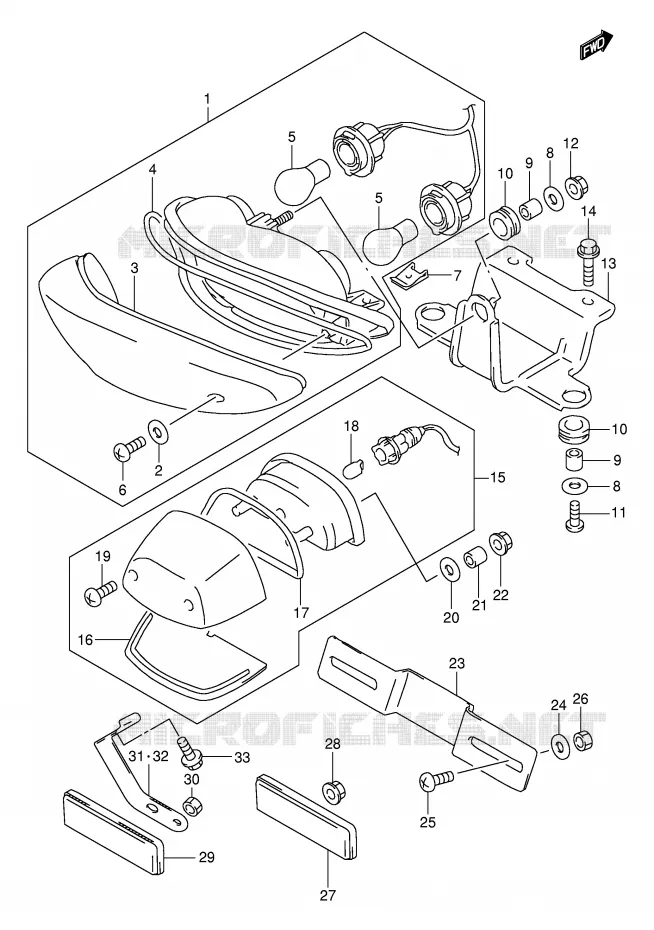

TAIL LIGHT (MODEL V) Suzuki MOTO 1000 TL-S 1997 TL1000SV(E2)
1
2
3
4
5
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
LAMP ASSY,RR COMBINATION<br />LAMP ASSY, REAR COMBINATION
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-02F00-000   3571002F00000

3571002F00000

Unit Price

2
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

3
LENS
LENS

35712-02F00-000   3571202F00000

3571202F00000
Not available
4
GASKET
GASKET

35713-02F00-000   3571302F00000

3571302F00000

Unit Price

5
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

6
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

7
NUT<br />NUT, LOWER
NUT
NUT, LOWER

09148-05020-000   0914805020000

0914805020000

Unit Price

8
WASHER 6.5X20X1.6<br />WASHER (6.5X20X1.60)
WASHER 6.5X20X1.6
WASHER (6.5X20X1.60)

09160-06088-000   0916006088000

0916006088000

Unit Price

9
SPACER(6.5X10X9)<br />SPACER (6.5X10X9.0)
SPACER(6.5X10X9)
SPACER (6.5X10X9.0)

09180-06285-000   0918006285000

0918006285000

Unit Price

10
RR COMB LAMP CUSHION<br />CUSHION
RR COMB LAMP CUSHION
CUSHION

09320-09009-000   0932009009000

0932009009000

Unit Price

11
SCREW

03541-05203-000  

03541-0520B-000
 0354105203000

Unit Price

12
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

13
DISCONTINUE
BRACKET, REAR COMBINATION

35730-02F00-000   3573002F00000

3573002F00000
Not available
14
01550-0616A
BOLT, BRACKET

01550-06163-000  

0155006163000
Not available
15
DISCONTINUE<br />LAMP ASSY, LICENSE
DISCONTINUE
LAMP ASSY, LICENSE

35910-02F00-000   3591002F00000

3591002F00000
Not available
16
DISCONTINUE<br />LENS
DISCONTINUE
LENS

35912-02F00-000   3591202F00000

3591202F00000
Not available
17
DISCONTINUE<br />GASKET
DISCONTINUE
GASKET

35913-02F00-000   3591302F00000

3591302F00000
Not available
18
09471-12216
BULB (12V, 5W)

09471-12081-000  

0947112081000
Not available
19
SCREW

03211-04163-000  

03211-0416A-000
 0321104163000

Unit Price

20
WASHER 6.5X20X1.6<br />WASHER (6.5X20X1.60)
WASHER 6.5X20X1.6
WASHER (6.5X20X1.60)

09160-06088-000   0916006088000

0916006088000

Unit Price

21
SPACER (5.5X9.5X11.5)
SPACER (5.5X9.5X11.5)

09180-05054-000   0918005054000

0918005054000

Unit Price

22
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

23
BRACKET, LICENSE PLATE
BRACKET, LICENSE PLATE

35927-00A10-000   3592700A10000

3592700A10000

Unit Price

24
WASHER 6.5X20X1.6<br />WASHER (6.5X20X1.60)
WASHER 6.5X20X1.6
WASHER (6.5X20X1.60)

09160-06088-000   0916006088000

0916006088000

Unit Price

25
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

26
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

27
REFLECTOR ASSY,RR<br />REFLEX REFLECTOR ASSY, REAR
REFLECTOR ASSY, RR
REFLEX REFLECTOR ASSY, REAR

35970-24D60-000   3597024D60000

3597024D60000

Unit Price

28
NUT

08316-20053-000  

08316-2005A-000
 0831620053000

Unit Price

29
REFLEX REFLECTOR,FR SIDE<br />REFLEX REFLECTOR ASSY, REAR
REFLEX REFLECTOR, FR SIDE
REFLEX REFLECTOR ASSY, REAR

35950-43431-000   3595043431000

3595043431000

Unit Price

30
08310-0005A

08310-00053-000  

0831000053000
Not available
31
DISCONTINUE
BRACKET, REAR SIDE RH

35975-02F00-000   3597502F00000

3597502F00000
Not available
32
DISCONTINUE
BRACKET, REAR SIDE LH

35976-02F00-000   3597602F00000

3597602F00000
Not available
33
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL V) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
