TAIL LIGHT

WIRING HARNESS FOR SUZUKI V-STROM 1000 2019

LOCK SET

Item numbers

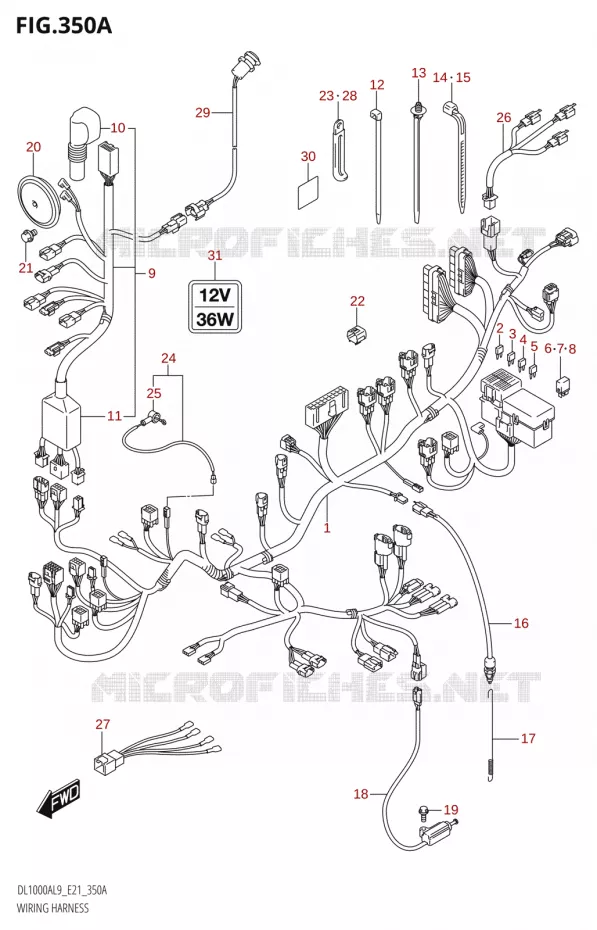

WIRING HARNESS Suzuki MOTO 1000 V-STROM 2019 DL1000A L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
HARNESS, WIRING NO.1

36610-31JK0-000   3661031JK0000

3661031JK0000
Not available
2
.FUSE(3A)

09481-03501-000   0948103501000

0948103501000

Unit Price

3
FUSE, LOW PROFILE
.FUSE(10A)

09481-10504-000   0948110504000

0948110504000

Unit Price

4
FUSE, LOW
.FUSE(15A)

09481-15504-000   0948115504000

0948115504000

Unit Price

5
.FUSE(25A)

09481-25504-000  

0948125504000
Not available
6
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

7
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

8
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

9
HARNESS, WIRING NO.2

36620-31J10-000   3662031J10000

3662031J10000
Not available
10
.COVER, CONNECTOR

36618-41G00-000   3661841G00000

3661841G00000

Unit Price

11
.COVER, CONNECTOR

36618-18G10-000  

3661818G10000
Not available
12
CLAMP<br />CLAMP(L:145)
CLAMP
CLAMP(L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

13
CLAMP
CLAMP(L:154)

09407-17403-000   0940717403000

0940717403000

Unit Price

14
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

15
BAND,WIRING HARNESS<br />CLAMP(L:125)
BAND, WIRING HARNESS
CLAMP(L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

16
SWITCH ASSY,STOP LAMP
SWITCH ASSY, STOP LAMP

37740-31D00-000   3774031D00000

3774031D00000

Unit Price

17
SPRING, STOP LAMP SWITCH

43259-31J00-000   4325931J00000

4325931J00000

Unit Price

18
SWITCH ASSY, SIDE STAND

37840-24F00-000  

37840-24F02-000
 3784024F00000

Unit Price

19
BOLT(8X35)

09103-08357-000   0910308357000

0910308357000

Unit Price

20
HORN ASSY

38500-41F50-000   3850041F50000

3850041F50000

Unit Price

21
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

22
CAP, TS

36654-06J20-000  

36654-06J21-000
 3665406J20000

Unit Price

23
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

24
WIRE, OIL PRESSURE SWITCH LEAD

36851-31J10-000   3685131J10000

3685131J10000
Not available
25
.CAP, OIL PRESSURE SWITCH

36618-31J00-000   3661831J00000

3661831J00000

Unit Price

26
WIRE, REAR TURNSIGNAL LEAD

36856-31J10-000   3685631J10000

3685631J10000
Not available
27
WIRE, IGNITION COIL LEAD

36854-31J20-000   3685431J20000

3685431J20000
Not available
28
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

29
TERMINAL, POWER SOURCE

38850-31J00-000   3885031J00000

3885031J00000

Unit Price

30
SEAL, EPS MOTOR PROTECTOR

48599-57L00-000   4859957L00000

4859957L00000
Not available
31
LABEL, MAX AMP

38852-28K00-000   3885228K00000

3885228K00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2019

Select your Suzuki 2019 model

Color : Candy Daring Red (YYG)
1000 V-STROM 2019 DL1000A L9 (E21)
Color : Candy Daring Red (YYG)
1000 V-STROM 2019 DL1000A L9 (E21)
Color : Pearl Glacier White (YWW)
1000 V-STROM 2019 DL1000A L9 (E21)
Color : Glass Sparkle Black (YVB)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2019
Model code DL1000A L9 (E21)
Color: Candy Daring Red (YYG) / Pearl Glacier White (YWW) / Glass Sparkle Black (YVB)
