GEAR SHIFTING ASSY FOR SUZUKI V-STROM 1000 2019

FUEL EVAP SYSTEM

Item numbers

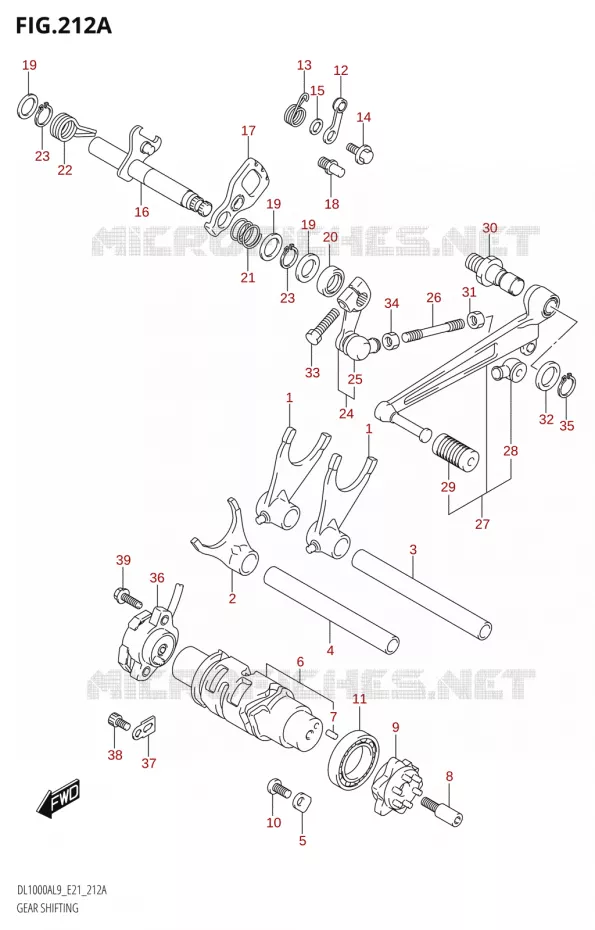

GEAR SHIFTING ASSY Suzuki MOTO 1000 V-STROM 2019 DL1000A L9 (E21)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
FORK, GEAR SHIFT

25211-17E02-000   2521117E02000

2521117E02000

Unit Price

2
FORK,GEAR SHIFT,NO.3
FORK, GEAR SHIFT, NO.3

25231-35F00-000   2523135F00000

2523135F00000

Unit Price

3
SHAFT,GEAR SHIFT FORK<br />SHIFT,GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK
SHIFT, GEAR SHIFT FORK

25411-02F20-000   2541102F20000

2541102F20000

Unit Price

4
SHAFT,GEAR SHIFT FORK<br />SHIFT,GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK
SHIFT, GEAR SHIFT FORK

25411-02F20-000   2541102F20000

2541102F20000

Unit Price

5
RETAINER
RETAINER

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

6
CAM, GEAR SHIFT

25310-31J00-000   2531031J00000

2531031J00000

Unit Price

7
.PIN
.PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

8
BOLT, GEAR SHIFT CAM PLATE

25312-42F01-000   2531242F01000

2531242F01000

Unit Price

9
PLATE, GEAR SHIFT CAM

25381-13E30-000   2538113E30000

2538113E30000

Unit Price

10
BOLT, (6X12)
SCREW(6X12)

09125-06122-000   0912506122000

0912506122000

Unit Price

11
BEARING, RH<br />BEARING
BEARING, RH
BEARING

08113-69050-000   0811369050000

0811369050000

Unit Price

12
25350-06G10
STOPPER, SHIFT CAM

25350-06G00-000   2535006G00000

2535006G00000
Not available
13
SPRING, GEAR SHIFT CAM STOPPER

25355-38F00-000   2535538F00000

2535538F00000

Unit Price

14
BOLT<br />BOLT(6X14.3)
BOLT
BOLT(6X14.3)

09111-06041-000   0911106041000

0911106041000

Unit Price

15
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

16
SHAFT, GEAR SHIFT
SHAFT, GEAR SHUFT

25510-06G10-000   2551006G10000

2551006G10000

Unit Price

17
PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000  

25512-06G20-000
 2551206G10000

Unit Price

18
STOPPER,GEAR SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-01011-000   2567101011000

2567101011000

Unit Price

19
WASHER,GEAR SHIFT SH<br />SHIM(14X22X1.0)
WASHER, GEAR SHIFT SH
SHIM(14X22X1.0)

09181-14167-000   0918114167000

0918114167000

Unit Price

20
SEAL, OIL(14X22X7.3)
OIL SEAL(14X22X7.3)

09283-14005-000   0928314005000

0928314005000

Unit Price

21
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

22
SPRING
SPRING

09444-20001-000   0944420001000

0944420001000

Unit Price

23
CIRCLIP
CIRCLIP

08331-3114A-000   083313114A000

083313114A000

Unit Price

24
ARM, GEAR SHIFT LINK

25520-16G00-000  

25520-16G01-000
 2552016G00000

Unit Price

25
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

26
ROD, GEAR SHIFT LINK
ROD, GEAR SHIFT LINK(L:90)

25525-11C00-000   2552511C00000

2552511C00000

Unit Price

27
LEVER ASSY, GEAR SHIFT

25600-31J00-000  

25600-31J01-000
 2560031J00000

Unit Price

28
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

29
.RUBBER,GEAR SHIFT PEDAL
.RUBBER, GEAR SHIFT PEDAL

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

30
SHAFT, GEAR SHIFT LEVER

25617-03F10-000   2561703F10000

2561703F10000

Unit Price

31
NUT
NUT

09140-06025-000   0914006025000

0914006025000

Unit Price

32
SEAL WASHER<br />WASHER(12.5X20X1)
SEAL WASHER
WASHER(12.5X20X1)

09160-12011-000  

0916012011000
Not available
33
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

34
NUT
NUT

08310-0006A-000  

083100006A000
Not available
35
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

36
SENSOR ASSY, GEAR POSITION

37730-31J00-000  

37730-31J01-000
 3773031J00000

Unit Price

37
CLAMP,GENERATOR LEAD WIRE<br />CLAMP, POSITION SENSOR LEAD
CLAMP, GENERATOR LEAD WIRE
CLAMP, POSITION SENSOR LEAD

31497-45000-000   3149745000000

3149745000000

Unit Price

38
BOLT

07130-0510A-000  

07130-0510B-000
 071300510A000

Unit Price

39
BOLT
BOLT(5X16)

09106-05023-000   0910605023000

0910605023000

Unit Price
