Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER

OIL PUMP FOR SUZUKI V-STROM 1000 2019

FUEL PUMP

Item numbers

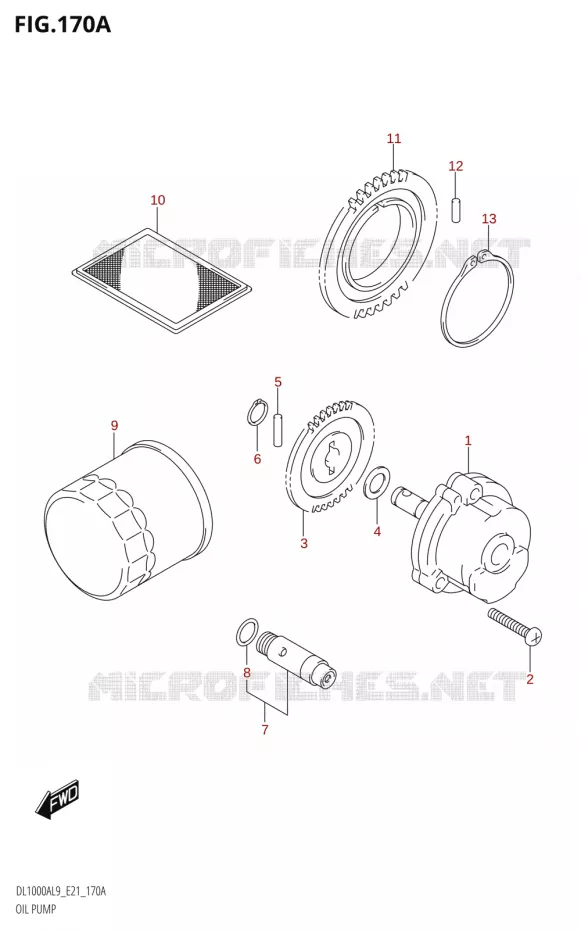

OIL PUMP Suzuki MOTO 1000 V-STROM 2019 DL1000A L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
PUMP ASSY,ENGINE OIL<br />PUMP ASSY,ENG OIL
PUMP ASSY, ENGINE OIL
PUMP ASSY, ENG OIL

16400-02FB0-000   1640002FB0000

1640002FB0000

Unit Price

2
BOLT

07130-0625A-000   071300625A000

071300625A000

Unit Price

3
GEAR,OIL PUMP DRIVEN<br />GEAR,OIL PUMP DRIVEN(NT:29)
GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN(NT:29)

16331-02F00-000   1633102F00000

1633102F00000

Unit Price

4
SHIM(10X18X0.5)
SHIM(10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
GR SHIFT CAM DR PIN<br />PIN(4X15.8)
GR SHIFT CAM DR PIN
PIN(4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

6
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

7
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF(7K)

16440-24F00-000   1644024F00000

1644024F00000

Unit Price

8
ENG OIL PUMP O RING<br />.O RING(D:1.9,ID:13)
ENG OIL PUMP O RING
.O RING(D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

9
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

10
STRAINER COMP,ENG OIL
STRAINER COMP, ENG OIL

16520-32E00-000  

16520-32E01-000
 1652032E00000

Unit Price

11
GEAR,ENG OIL PUMP DRIVE<br />GEAR,ENG OIL PUMP DRIVE(NT:41)
GEAR, ENG OIL PUMP DRIVE
GEAR, ENG OIL PUMP DRIVE(NT:41)

16321-02F00-000   1632102F00000

1632102F00000

Unit Price

12
OIL PUMP DRIVEN PIN<br />PIN(OD:6,L:6)
OIL PUMP DRIVEN PIN
PIN(OD:6, L:6)

09261-06002-000   0926106002000

0926106002000

Unit Price

13
CIRCLIP
CIRCLIP

08331-31509-000   0833131509000

0833131509000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.
