CYLINDER HEAD (FRONT)

CYLINDER HEAD (REAR) FOR SUZUKI V-STROM 1000 2019

CYLINDER

Item numbers

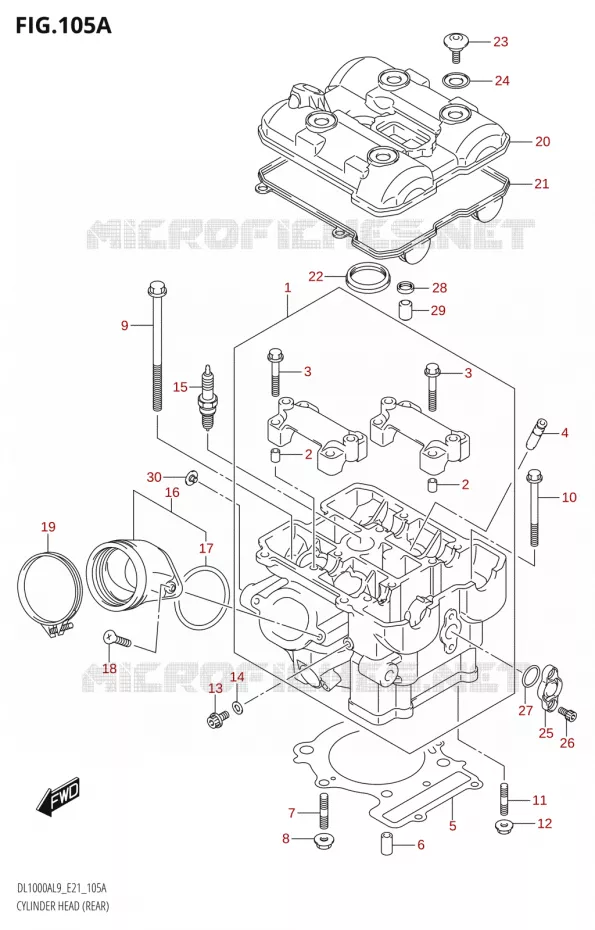

CYLINDER HEAD (REAR) Suzuki MOTO 1000 V-STROM 2019 DL1000A L9 (E21)
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
HEAD ASSY, CYLINDER FRONT

11100-31J10-000   1110031J10000

1110031J10000

Unit Price

2
PIN(8X11)<br />.PIN(6.2X8X11)
PIN(8X11)
.PIN(6.2X8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

3
BOLT, CAMSHAFT HOUSIN
.BOLT(6X40)

09103-06266-000   0910306266000

0910306266000

Unit Price

4
GUIDE,VALVE<br />GUIDE,VALVE(OS:0.3)
GUIDE, VALVE
GUIDE, VALVE(OS:0.3)

11115-32E70-000   1111532E70000

1111532E70000

Unit Price

5
GASKET, CYLINDER HEAD

11141-31J00-000   1114131J00000

1114131J00000

Unit Price

6
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

7
STUD BOLT L:35<br />BOLT,STUD(L:35)
STUD BOLT L:35
BOLT, STUD(L:35)

09108-08143-000   0910808143000

0910808143000

Unit Price

8
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

9
BOLT, CYLINDER HEAD(L:165)
BOLT, CYLINDER HEAD, L165(10X175)

11117-33H00-000   1111733H00000

1111733H00000

Unit Price

10
BOLT(6X60)

09103-06220-000   0910306220000

0910306220000

Unit Price

11
BOLT,STUD<br />BOLT,STUD(6X30)
BOLT, STUD
BOLT, STUD(6X30)

09108-06096-000   0910806096000

0910806096000

Unit Price

12
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

13
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

14
GASKET<br />GASKET(5.8X13X1.2)
GASKET
GASKET(5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
PLUG, SPARK(LMAR8BI-9)

09482-00635-000   0948200635000

0948200635000

Unit Price

16
PIPE ASSY, INTAKE REAR

13102-31J00-000  

13102-31J01-000
 1310231J00000

Unit Price

17
.O RING(D:2.4,ID:55.6)
.O RING(D:2.4, ID:55.6)

09280-55005-000   0928055005000

0928055005000

Unit Price

18
SCREW
SCREW

02122-0616B-000   021220616B000

021220616B000

Unit Price

19
CLAMP, INTAKE PIPE

13170-40H01-000   1317040H01000

1317040H01000

Unit Price

20
COVER, CYLINDER HEAD REAR

11172-31J10-000   1117231J10000

1117231J10000

Unit Price

21
GASKET,CYL HEAD COVER NO.1
GASKET, CYL HEAD COVER NO.1

11173-02F00-000   1117302F00000

1117302F00000

Unit Price

22
GASKET,CYL HEAD COVER NO.2
GASKET, CYL HEAD COVER NO.2

11178-17E00-000   1117817E00000

1117817E00000

Unit Price

23
BOLT(7X17.5)
BOLT(7X17.5)

09106-07021-000   0910607021000

0910607021000

Unit Price

24
WASHER, CYL HEAD COVER
WASHER, CYL HEAD COVER(L:5.5)

11191-27E00-000   1119127E00000

1119127E00000

Unit Price

25
COVER, CYL HEAD NO.2

11134-31J00-000   1113431J00000

1113431J00000

Unit Price

26
BOLT(6X12)
BOLT(6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

27
O-RING, ENG SPROCKET
O RING(D:2.4, ID:19)

09280-19005-000   0928019005000

0928019005000

Unit Price

28
GASKET, 2ND AIR PASSAGE

11182-35F10-000   1118235F10000

1118235F10000

Unit Price

29
PIN(8.2X10X13)

09206-10016-000   0920610016000

0920610016000

Unit Price

30
CAP, ENGINE MOUNTING RR RH

11151-27G00-000  

11151-27G01-000
 1115127G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD (REAR) of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.
