SEAT (MODEL D)

REAR FAIRING (MODEL Z) FOR SUZUKI GS-G 1100 1983

REAR FAIRING (MODEL D)

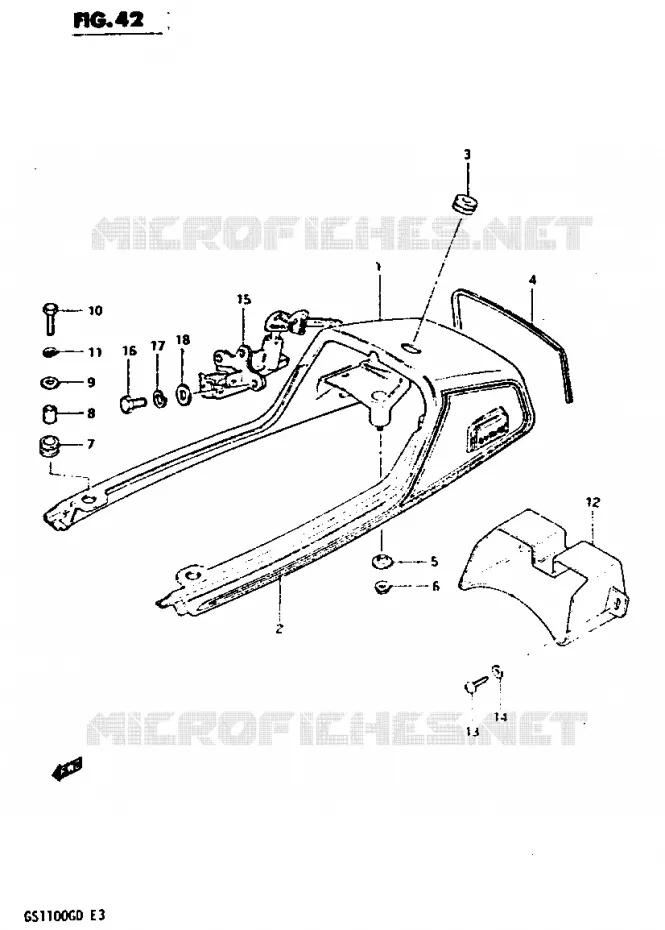

REAR FAIRING (MODEL Z) Suzuki MOTO 1100 GS-G 1983 GS1100GD(Z/D)
1
DISCONTINUE
COVER SEAT TAIL (BLACK)

45510-49400-000   4551049400000

4551049400000
Not available
2
DISCONTINUED

68160-49410-764   6816049410764

6816049410764
Not available
3
GROMMET,SEAT LOCK HOLE<br />GROMMET SEAT LOCK
GROMMET, SEAT LOCK HOLE
GROMMET SEAT LOCK

45522-49200-000   4552249200000

4552249200000

Unit Price

4
MOLDING SEAT TAIL

45562-49400-000   4556249400000

4556249400000
Not available
5
F FORK COVER WASHER
F FORK COVER WASHER

09169-06016-000   0916906016000

0916906016000

Unit Price

6
NUT

08319-21068-000  

08319-2106A-000
 0831921068000

Unit Price

7
FRONT FENDER CUSHION
FRONT FENDER CUSHION

09320-10003-000   0932010003000

0932010003000

Unit Price

8
09180-06290
DISCONTINUED

09180-07013-000  

0918007013000
Not available
9
WASHER, 6.5X24X1.6

09160-06004-000  

09160-06134-000
 0916006004000

Unit Price

10
BOLT
BOLT

01500-06257-000   0150006257000

0150006257000

Unit Price

11
WASHER, LOCK
WASHER, LOCK

08321-01067-000   0832101067000

0832101067000

Unit Price

12
BOX SEAT TAIL

94991-49400-000   9499149400000

9499149400000
Not available
13
SCREW (6X12)
SCREW (6X12)

02142-06127-000   0214206127000

0214206127000

Unit Price

14
WASHER, LOCK
WASHER, LOCK

08321-01067-000   0832101067000

0832101067000

Unit Price

15
DISCONTINUE
LOCK SET SEAT

95700-49830-000   9570049830000

9570049830000
Not available
16
BOLT
BOLT

01500-06127-000   0150006127000

0150006127000

Unit Price

17
WASHER, LOCK
WASHER, LOCK

08321-01067-000   0832101067000

0832101067000

Unit Price

18
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FAIRING (MODEL Z) of your Suzuki 1100 GS-G of GS-G. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GS-G 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1100 GS-G 1983

Select your Suzuki 1983 model

1100 GS-G 1983 GS1100GD(Z/D)

1100 GS-G

Suzuki GS-G

Displacement: 1100 cc
Year: 1983
Model code GS1100GD(Z / D)
