CYLINDER

CRANKCASE (MODEL Z) FOR SUZUKI GS-G 1100 1983

CRANKCASE (MODEL D)

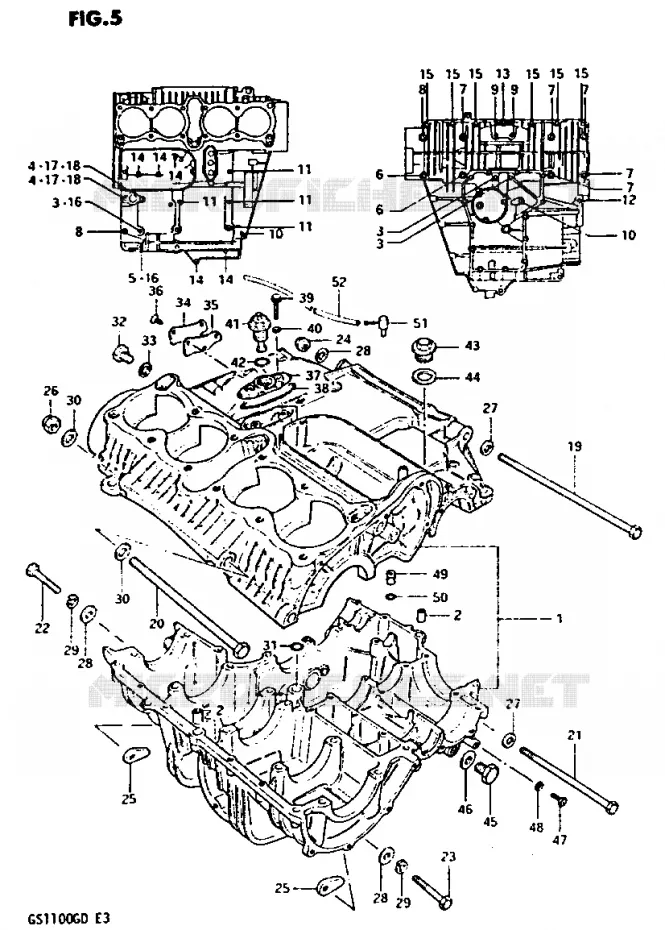

CRANKCASE (MODEL Z) Suzuki MOTO 1100 GS-G 1983 GS1100GD(Z/D)
1
CRANKCASE SET

11300-49843-000   1130049843000

1130049843000
Not available
2
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

3
DISCONTINUE
BOLT, ENG MOUNT (8X125)

09103-08106-000   0910308106000

0910308106000
Not available
4
DISCONTINUED

09103-08046-000   0910308046000

0910308046000
Not available
5
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

6
BOLT
BOLT (8X100)

09103-08070-000   0910308070000

0910308070000

Unit Price

7
BOLT

01517-08908-000  

01550-08907-000
 0151708908000

Unit Price

8
BOLT

01517-08658-000  

01550-08657-000
 0151708658000

Unit Price

9
BOLT

01517-08608-000  

01550-0860B-000
 0151708608000

Unit Price

10
BOLT

01517-06907-000  

01550-06907-000
 0151706907000

Unit Price

11
BOLT 6 X 75

01517-06758-000  

01550-06757-000
 0151706758000

Unit Price

12
BOLT

01517-06557-000  

01550-0660A-000
 0151706557000

Unit Price

13
BOLT

01517-06508-000  

01550-06503-000
 0151706508000

Unit Price

14
BOLT

01517-06458-000  

01550-06457-000
 0151706458000

Unit Price

15
BOLT

01517-06358-000  

01550-06357-000
 0151706358000

Unit Price

16
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

17
NUT

08313-11088-000  

08313-10087-000
 0831311088000

Unit Price

18
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

19
ENG MOUNT BOLT NO 2 (10X270)
ENG MOUNT BOLT NO 2 (10X270)

09100-10074-000   0910010074000

0910010074000
Not available
20
SHAFT, RR SWINGINGARM PIVOT

61211-39001-000  

61211-39002-000
 6121139001000

Unit Price

21
BOLT(10X165)
ENG MOUNT BOLT NO 1 (10X165)

09100-10078-000   0910010078000

0910010078000

Unit Price

22
BOLT

01107-10608-000  

01500-10603-000
 0110710608000

Unit Price

23
01500-10503
BOLT

01107-10508-000  

0110710508000
Not available
24
NUT<br />ENGINE MOUNTING NUT
NUT
ENGINE MOUNTING NUT

09159-10011-000   0915910011000

0915910011000

Unit Price

25
ENGINE MOUNT NUT N02<br />ENGINE MOUNT NUT NO2
ENGINE MOUNT NUT N02
ENGINE MOUNT NUT NO2

09159-10020-000   0915910020000

0915910020000

Unit Price

26
NUT

08319-21128-000  

08319-2112A-000
 0831921128000

Unit Price

27
REAR SPENSION WASHER
WASHER

09160-10005-000   0916010005000

0916010005000

Unit Price

28
WASHER
WASHER

08322-01107-000   0832201107000

0832201107000

Unit Price

29
WASHER

08321-21107-000  

08321-01107-000
 0832121107000

Unit Price

30
WASHER

08322-11128-000  

08322-01127-000
 0832211128000

Unit Price

31
KICK GEAR O RING

09280-13001-000   0928013001000

0928013001000

Unit Price

32
PLUG<br />PLUG,INJECTOR HOLDER
PLUG
PLUG, INJECTOR HOLDER

09247-14026-000   0924714026000

0924714026000

Unit Price

33
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

34
DISCONTINUE<br />CAP OIL GALLERY
DISCONTINUE
CAP OIL GALLERY

11394-45000-000   1139445000000

1139445000000
Not available
35
DISCONTINUE
GASKET, OIL GALLERY C

11497-45000-H17   1149745000H17

1149745000H17
Not available
36
SCREW (6X16)
SCREW (6X16)

02122-06167-000   0212206167000

0212206167000

Unit Price

37
DISCONTINUE<br />OIL PRESS SW HOUSING
DISCONTINUE
OIL PRESS SW HOUSING

16445-45000-000   1644545000000

1644545000000
Not available
38
O RING, PRESSURE SWITCH HOUSING
PRES SW HOUSE O RING

16448-45000-000   1644845000000

1644845000000

Unit Price

39
BOLT

01517-06257-000  

01550-0625A-000
 0151706257000

Unit Price

40
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
41
SWITCH ASSY, OIL PRESSURE

37820-45060-000  

37820-45061-000
 3782045060000

Unit Price

42
CENT SPACER O RING

09280-19001-000   0928019001000

0928019001000

Unit Price

43
PLUG

09247-20002-000  

09248-20003-000
 0924720002000

Unit Price

44
WASHER

09168-20004-000   0916820004000

0916820004000
Not available
45
PLUG, OIL DRAIN

09247-14019-000  

09247-14036-000
 0924714019000

Unit Price

46
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

47
SCREWM6X1X10

09128-06004-000  

09128-06044-000
 0912806004000

Unit Price

48
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
49
DISCONTINUE<br />OIL GALLERY NOZZLE
DISCONTINUE
OIL GALLERY NOZZLE

09364-05005-000   0936405005000

0936405005000
Not available
50
RING<br />O RING
RING
O RING

09280-03003-000   0928003003000

0928003003000

Unit Price

51
BPLUG, BEVEL GEAR BREATHER
PLUG BEVEL GEAR

24821-45100-000   2482145100000

2482145100000

Unit Price

52
09352-20504-600
S.R.I.S. HOSE NO 2 (L:600-450)

09343-02009-000  

0934302009000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE (MODEL Z) of your Suzuki 1100 GS-G of GS-G. Let us know if you have any questions.
