TRANSMISSION

DRIVESHAFT FOR SUZUKI GS-G 1100 1983

GEAR SHIFTING ASSY

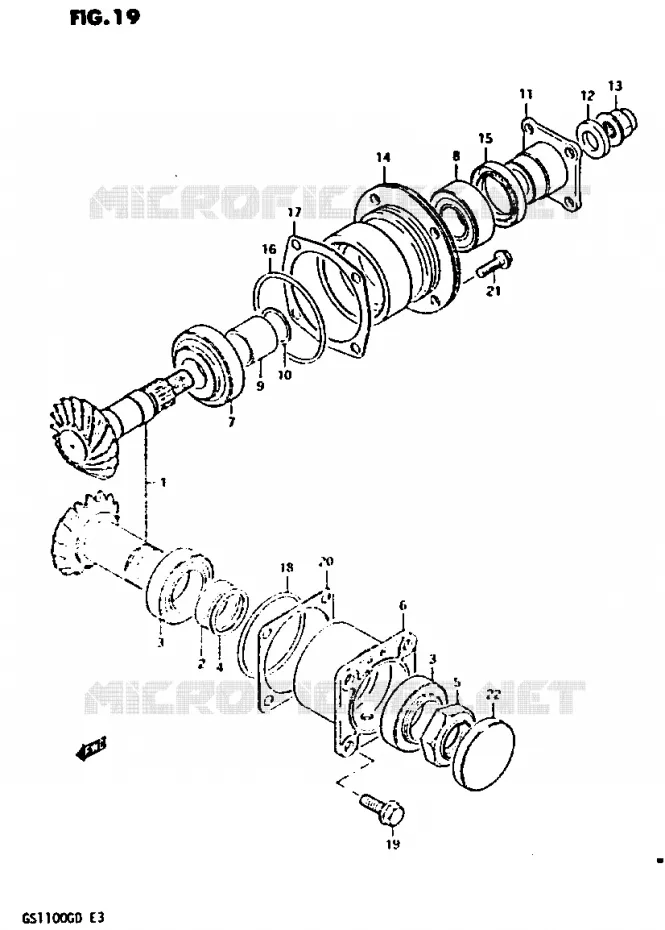

DRIVESHAFT Suzuki MOTO 1100 GS-G 1983 GS1100GD(Z/D)
1
DISCONTINUE
GEAR, 2NDRY DRIVE BEV

24911-49001-000   2491149001000

2491149001000
Not available
2
SPACER SECONDARY DR

09180-32003-000   0918032003000

0918032003000
Not available
3
DISCONTINUE
RT 32X58X17 BEARING

09265-32001-000   0926532001000

0926532001000
Not available
4
DISCONTINUE
SHIM DRIVE BEVEL (T:1.60)

09181-32001-000   0918132001000

0918132001000
Not available
4
SHIM DRIVE BEVEL (T:1.62)

09181-32002-000   0918132002000

0918132002000
Not available
4
SHIM DRIVE BEVEL (T:1.64)

09181-32003-000   0918132003000

0918132003000
Not available
4
DISCONTINUE
SHIM DRIVE BEVEL (T:1.66)

09181-32004-000   0918132004000

0918132004000
Not available
4
SHIM DRIVE BEVEL (T:1.68)

09181-32005-000   0918132005000

0918132005000
Not available
4
SHIM DRIVE BEVEL (T:1.70)

09181-32006-000   0918132006000

0918132006000
Not available
4
SHIM DRIVE BEVEL (T:1.80)

09181-32007-000   0918132007000

0918132007000
Not available
4
SHIM DRIVE BEVEL (T:1.90)

09181-32008-000   0918132008000

0918132008000
Not available
4
DISCONTINUE
SHIM DRIVE BEVEL (T:2.00)

09181-32009-000   0918132009000

0918132009000
Not available
5
DISCONTINUE
NUT SECOND DR BEVEL

09159-32001-000   0915932001000

0915932001000
Not available
6
HOUSING DR BEVEL GR

24931-49001-000   2493149001000

2493149001000
Not available
7
DISCONTINUE
RT 25X62X18.25 BRNG

09265-25012-000   0926525012000

0926525012000
Not available
8
BEARING
RT 25X52X17 BRNG

09265-25024-000   0926525024000

0926525024000

Unit Price

9
SPACER DRIVEN BEVEL

09180-25056-000   0918025056000

0918025056000
Not available
10
SHIM DRVN BEVEL (T:1.60)

09181-25006-000   0918125006000

0918125006000
Not available
10
SHIM DRVN BEVEL (T:1.62)

09181-25007-000   0918125007000

0918125007000
Not available
10
SHIM DR BEVEL (T:1.64)

09181-25008-000   0918125008000

0918125008000
Not available
10
SHIM DR BEVEL (T:1.66)

09181-25009-000   0918125009000

0918125009000
Not available
10
SHIM DRVN BEVEL (T:1.68)

09181-25010-000   0918125010000

0918125010000
Not available
10
SHIM DRIVE BEVEL (T:1.70)

09181-25011-000   0918125011000

0918125011000
Not available
10
SHIM DRIVE BEVEL (T:1.80)

09181-25012-000   0918125012000

0918125012000
Not available
10
SHIM DRIVE BEVEL (T:1.90)

09181-25013-000   0918125013000

0918125013000
Not available
10
SHIM DRIVE BEVEL (T:2.00)

09181-25014-000   0918125014000

0918125014000
Not available
11
FLANGE

24951-49100-000   2495149100000

2495149100000
Not available
12
WASHER(14X29X4)
WASHER DR BEVEL NUT

09160-14021-000   0916014021000

0916014021000

Unit Price

13
F. DRIVE BEVEL NUT
NUT FINL DRIVE BEVEL

09159-14010-000   0915914010000

0915914010000

Unit Price

14
HOUSING DRVN BEVEL

24941-45101-000   2494145101000

2494145101000
Not available
15
DISCONTINUE
OIL SEAL DRVN BEVEL

09283-35018-000   0928335018000

0928335018000
Not available
16
DRIVEN BEVEL P RING
O RING DRIVEN BEVEL

09280-70005-000   0928070005000

0928070005000

Unit Price

17
SHIM

24945-45100-000   2494545100000

2494545100000
Not available
17
DISCONTINUED

24945-45101-000   2494545101000

2494545101000
Not available
17
SHIM

24945-45102-000   2494545102000

2494545102000
Not available
17
SHIM DRVN HOUS. (T:0.50)

24945-45103-000   2494545103000

2494545103000
Not available
17
SHIM

24945-45104-000   2494545104000

2494545104000
Not available
18
OIL STRAINER O RING

09280-63004-000   0928063004000

0928063004000

Unit Price

19
BOLT

01517-08207-000  

01550-08207-000
 0151708207000

Unit Price

20
SHIM

24935-45100-000   2493545100000

2493545100000
Not available
20
DISCONTINUED

24935-45101-000   2493545101000

2493545101000
Not available
20
SHIM

24935-45102-000   2493545102000

2493545102000
Not available
20
SHIM BEVEL HOUS. (T:0.50)

24935-45103-000   2493545103000

2493545103000
Not available
20
DISCONTINUE
SHIM

24935-45104-000   2493545104000

2493545104000
Not available
21
BOLT

01517-08258-000  

01550-08257-000
 0151708258000

Unit Price

22
DISCONTINUE
PLUG SEC DRIVE BEVEL

09241-58001-000   0924158001000

0924158001000
Not available
56
DISCONTINUE
GEAR, 2NDRY DRIVE BEV

24901-49000-000   2490149000000

2490149000000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki 1100 GS-G of GS-G. Let us know if you have any questions.
