Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL EVAP SYSTEM (GSF1200W / X / Y E18)

CLUTCH FOR SUZUKI BANDIT 1200 1999

TRANSMISSION

Item numbers

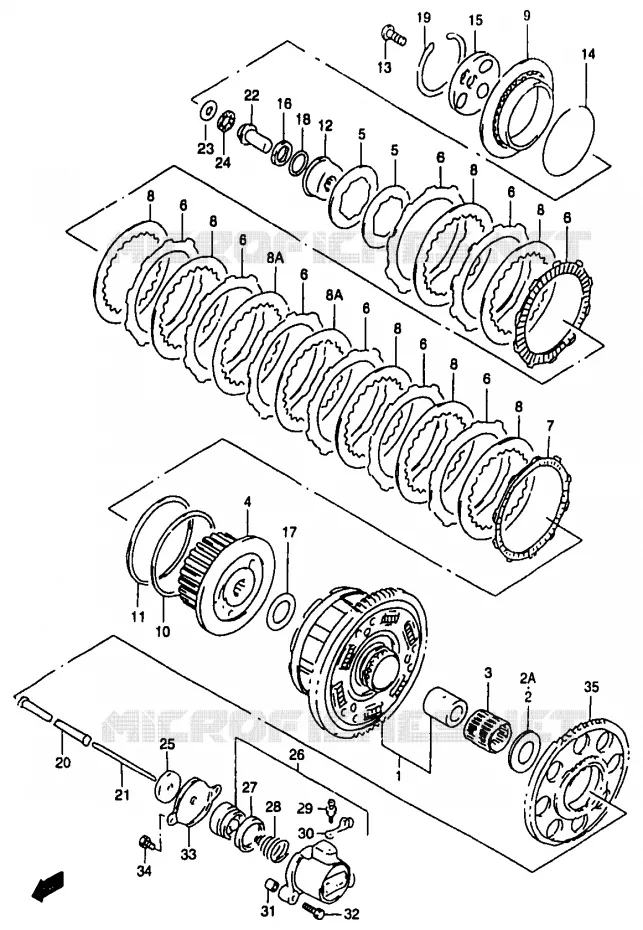

CLUTCH Suzuki MOTO 1200 BANDIT 1999 GSF1200X/GSF1200SX/GSF1200SAX
1
2A
2
3
4
5
5
6
6
6
6
6
6
6
6
6
7
8
8
8
8
8
8
8
8A
8A
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
GEAR ASSY,PRI DRIVEN<br />GEAR ASSY, PRIMARY DRIVEN
GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN

21200-31861-000   2120031861000

2120031861000

Unit Price

2A
WASHER(25X54X2.5)<br />WASHER (25.1X54X2.5)
WASHER(25X54X2.5)
WASHER (25.1X54X2.5)

09160-25037-000   0916025037000

0916025037000

Unit Price

2
DISCONTINUE
WASHER (25X54X2.5)

09160-25067-000  

0916025067000
Not available
3
ROLLER BEARING 35X40<br />BEARING (35X40X35.8)
ROLLER BEARING 35X40
BEARING (35X40X35.8)

09263-35017-000   0926335017000

0926335017000

Unit Price

4
HUB, CLUTCH SLEEVE

21410-31E20-000  

21410-31E50-000
 2141031E20000

Unit Price

5
SPRING, CLUTCH
SPRING, CLUTCH

21413-31E20-000   2141331E20000

2141331E20000

Unit Price

6
PLATE,CLUTCH DRIVE<br />PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE NO.1

21441-31E00-000   2144131E00000

2144131E00000

Unit Price

7
PLATE,CLUTCH DRIVE<br />PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE NO.2

21442-31E00-000   2144231E00000

2144231E00000

Unit Price

8
PLATE, CLUTCH DRIVEN NO.1
PLATE, CLUTCH DRIVEN NO.1

21451-31E00-000   2145131E00000

2145131E00000

Unit Price

8A
PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN NO.2

21451-31E10-000   2145131E10000

2145131E10000

Unit Price

9
DISC,CLUTCH PRESSURE<br />DISK, CLUTCH PRESSURE
DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-31E20-000   2146231E20000

2146231E20000

Unit Price

10
SEAT,CLUTCH PLATE WAVE WASHER<br />SEAT, CLUTCH PLATE
SEAT, CLUTCH PLATE WAVE WASHER
SEAT, CLUTCH PLATE

21471-31E20-000   2147131E20000

2147131E20000

Unit Price

11
DISCONTINUE<br />WASHER, CLUTCH PLATE
DISCONTINUE
WASHER, CLUTCH PLATE

21472-31E20-000   2147231E20000

2147231E20000
Not available
12
DISCONTINUE<br />HOLDER, CLUTCH SPRING
DISCONTINUE
HOLDER, CLUTCH SPRING

21611-31E20-000   2161131E20000

2161131E20000
13
SCREW,CLUTCH SPRING HOLDER<br />SCREW, CLUTCH SPRING
SCREW, CLUTCH SPRING HOLDER
SCREW, CLUTCH SPRING

21614-31E20-000   2161431E20000

2161431E20000

Unit Price

14
SEAT, CLUTCH SPRING
SEAT, CLUTCH SPRING

21623-31E20-000   2162331E20000

2162331E20000

Unit Price

15
DISCONTINUE<br />LIFTER, CLUTCH RELEASE
DISCONTINUE
LIFTER, CLUTCH RELEASE

21463-40C01-000   2146340C01000

2146340C01000
Not available
16
NUT<br />NUT, CLUTCH SLEEVE HUB
NUT
NUT, CLUTCH SLEEVE HUB

09159-24010-000   0915924010000

0915924010000

Unit Price

17
WASHER SLEEVE HUB<br />WASHER, CLUTCH SLEEVE
WASHER SLEEVE HUB
WASHER, CLUTCH SLEEVE

09160-25056-000   0916025056000

0916025056000

Unit Price

18
WASHER CL SLEEVE HUB<br />WASHER, CLUTCH WAVE
WASHER CL SLEEVE HUB
WASHER, CLUTCH WAVE

09164-24006-000   0916424006000

0916424006000

Unit Price

19
CIRCLIP<br />CIRCLIP, CLUTCH PRESSURE
CIRCLIP
CIRCLIP, CLUTCH PRESSURE

09381-84003-000   0938184003000

0938184003000

Unit Price

20
ROD,CLUTCH PUSH,R<br />ROD, CLUTCH PUSH RH
ROD, CLUTCH PUSH, R
ROD, CLUTCH PUSH RH

23110-38B00-000   2311038B00000

2311038B00000

Unit Price

21
ROD,CLUTCH PUSH,L<br />ROD, CLUTCH PUSH LH
ROD, CLUTCH PUSH, L
ROD, CLUTCH PUSH LH

23111-31301-000   2311131301000

2311131301000

Unit Price

22
PIECE, CLUTCH PUSH
PIECE, CLUTCH PUSH

23121-31E00-000   2312131E00000

2312131E00000

Unit Price

23
WASHER<br />WASHER, CLUTCH PUSH
WASHER
WASHER, CLUTCH PUSH

09160-15045-000   0916015045000

0916015045000

Unit Price

24
BEARING(15X28X2)<br />BEARING, CLUTCH PUSH
BEARING(15X28X2)
BEARING, CLUTCH PUSH

09263-15003-000   0926315003000

0926315003000

Unit Price

25
SEAL,OIL 6X34X5.5<br />SEAL, CLUTCH PUSH ROD
SEAL, OIL 6X34X5.5
SEAL, CLUTCH PUSH ROD

09285-06015-000   0928506015000

0928506015000

Unit Price

26
CYLINDER,CLUTCH RELEASE
CYLINDER, CLUTCH RELEASE

23160-06B02-000  

23160-06B03-000
 2316006B02000

Unit Price

27
CUP
CUP

23163-06B00-000   2316306B00000

2316306B00000

Unit Price

28
SPRING,CLUTCH CYLINDER<br />SPRING
SPRING, CLUTCH CYLINDER
SPRING

23164-05A00-000   2316405A00000

2316405A00000

Unit Price

29
BLEEDER
BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

30
CAP, BLEEDER
CAP, BLEEDER

59122-01A00-000   5912201A00000

5912201A00000

Unit Price

31
9 X 12 DOWEL PIN<br />KNOCK JPIN
9 X 12 DOWEL PIN
KNOCK JPIN

04211-09129-000   0421109129000

0421109129000

Unit Price

32
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

33
COVER,CLUTCH RELEASE CYLINDER<br />COVER, CLUTCH RELEASE
COVER, CLUTCH RELEASE CYLINDER
COVER, CLUTCH RELEASE

23117-46E00-000   2311746E00000

2311746E00000

Unit Price

34
SCREW

02112-06103-000  

02112-0610B-000
 0211206103000

Unit Price

35
GEAR, GENERATOR DRIVE
GEAR, GENERATOR DRIVE

22721-27A03-000   2272127A03000

2272127A03000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1999
