FRONT WHEEL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.48A(J-8) FOR GSF1200SAV/SAW/SAX/SAY

FRONT WHEEL (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1999

FRONT CALIPER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.49A(I-10) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

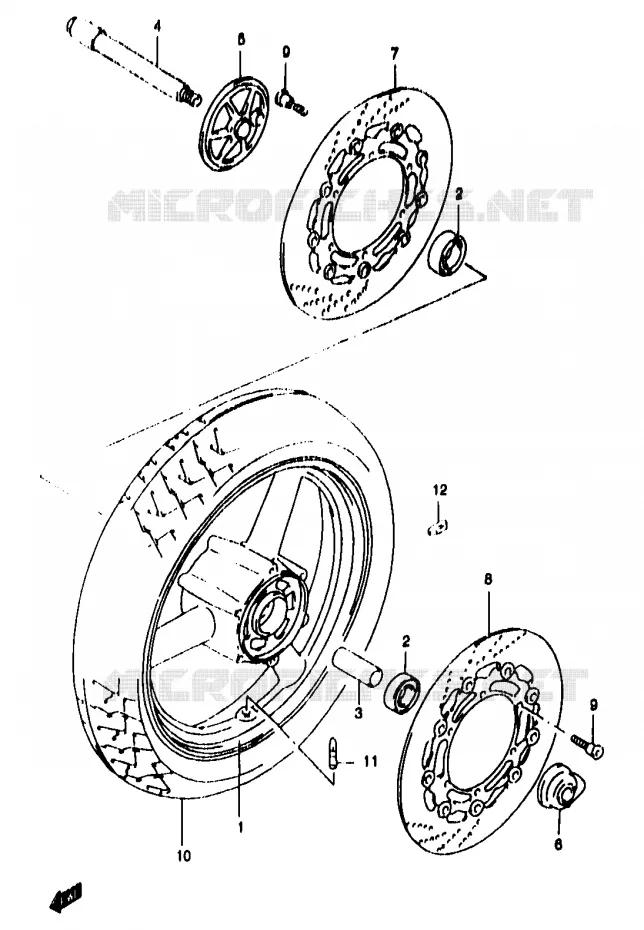

FRONT WHEEL (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1999 GSF1200X/GSF1200SX/GSF1200SAX
1
2
2
3
4
6
6
6
7
9
9
10
11
12
12
1
WHEEL SET, FRONT (MT3.50X17) (GRAY)

54100-27810-35W   541002781035W

541002781035W
Not available
2
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

3
SPACER (20.8X27.2X74)
SPACER (20.8X27.2X74)

09180-20103-000   0918020103000

0918020103000

Unit Price

4
DISCONTINUE
AXLE, FRONT

54711-27E50-000   5471127E50000

5471127E50000
Not available
5
DISCONTINUE
PANEL, SPEED SENSOR FRONT

55720-27E50-000   5572027E50000

5572027E50000
Not available
6
DISCONTINUE<br />BOX ASSY, SPEEDOMETER GEAR
DISCONTINUE
BOX ASSY, SPEEDOMETER GEAR

54600-17C01-000   5460017C01000

5460017C01000
Not available
7
DISC, FR BRAKE, R
DISC, FRONT BRAKE RH

59210-27E50-000   5921027E50000

5921027E50000

Unit Price

8
DISC, FR BRAKE, L
DISC, FRONT BRAKE LH

59220-27E50-000   5922027E50000

5922027E50000

Unit Price

9
BOLT, 8X33

09106-08125-000  

09106-08148-000
 0910608125000

Unit Price

10
TIRE, FRONT 120/70 ZR17 (58W) (BRIDGESTONE)

55110-27E30-000   5511027E30000

5511027E30000
Not available
11
VALVE ASSY, WHEEL RIM (TR412)
VALVE ASSY, WHEEL RIM (TR412)

43130-24A00-000   4313024A00000

4313024A00000

Unit Price

12
BALANCER, WHEEL(10G)

55411-00A00-000  

55411-17G00-000
 5541100A00000

Unit Price

12
BALANCER, WHEEL(20G)

55412-00A01-000  

55412-17G00-000
 5541200A01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
