Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI BANDIT 1200 1999

OIL PAN

Item numbers

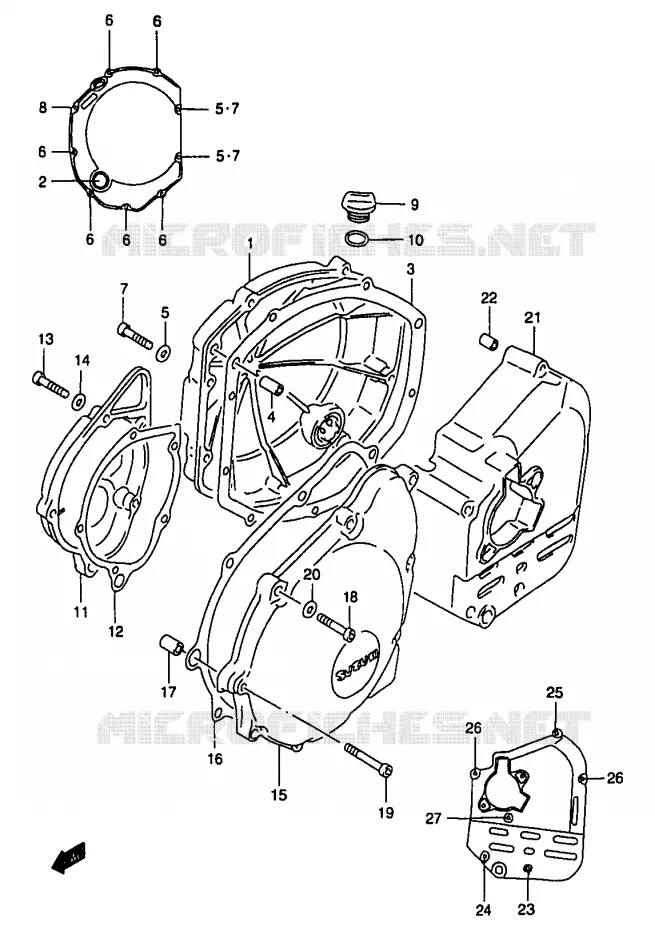

CRANKCASE COVER Suzuki MOTO 1200 BANDIT 1999 GSF1200X/GSF1200SX/GSF1200SAX
1
2
3
4
5
5
5
5
5
5
6
6
6
6
6
6
7
7
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
26
27
1
DISCONTINUE<br />COVER, CLUTCH
DISCONTINUE
COVER, CLUTCH

11340-26E20-000   1134026E20000

1134026E20000
Not available
2
LENS,OIL LEVEL CHECK<br />LENS, OIL LEVER CHECK
LENS, OIL LEVEL CHECK
LENS, OIL LEVER CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET,CL COVER<br />GASKET
GASKET, CL COVER
GASKET

11482-27A20-000   1148227A20000

1148227A20000

Unit Price

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

5
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

5
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
6
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

7
BOLT

07130-06303-000  

07130-0630B-000
 0713006303000

Unit Price

8
BOLT

07130-06353-000  

07130-0635B-000
 0713006353000

Unit Price

9
PLUG

09259-20008-000  

09259-20008-XC0
 0925920008000

Unit Price

10
O-RING,OIL FILLER<br />O RING (D:3.1, ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

11
COVER, SIGNAL GENERATOR

11381-26E20-000  

11381-26E21-000
 1138126E20000

Unit Price

12
GASKET,SIGNAL GEN COVER<br />GASKET
GASKET, SIGNAL GEN COVER
GASKET

11491-27A30-000   1149127A30000

1149127A30000

Unit Price

13
BOLT
BOLT

09106-06082-000   0910606082000

0910606082000

Unit Price

14
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

14
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
COVER, STARTER GEAR
COVER, STARTER GEAR

11351-26E20-000   1135126E20000

1135126E20000

Unit Price

16
GASKET, STARTER GEAR COVER

11483-48B20-000  

11483-48B21-000
 1148348B20000

Unit Price

17
PIN, 11 X20<br />PIN
PIN, 11 X20
PIN

09206-11017-000   0920611017000

0920611017000

Unit Price

18
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

19
BOLT

07130-06403-000  

07130-0640B-000
 0713006403000

Unit Price

20
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

20
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
21
DISCONTINUE

11360-27E00-000  

1136027E00000
Not available
22
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

23
BOLT

07130-06453-000  

07130-0645A-000
 0713006453000

Unit Price

24
BOLT

07130-06353-000  

07130-0635B-000
 0713006353000

Unit Price

25
BOLT

07130-06553-000  

07130-0655B-000
 0713006553000

Unit Price

26
BOLT

07130-06703-000  

07130-0670B-000
 0713006703000

Unit Price

27
BOLT

07130-06753-000  

07130-0675B-000
 0713006753000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1999
