Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.46A(J-4) FOR GSF1200SAV/SAW/SAX/SAY

FRONT FORK (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1999

STEERING COLUMN (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.47A(J-6) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

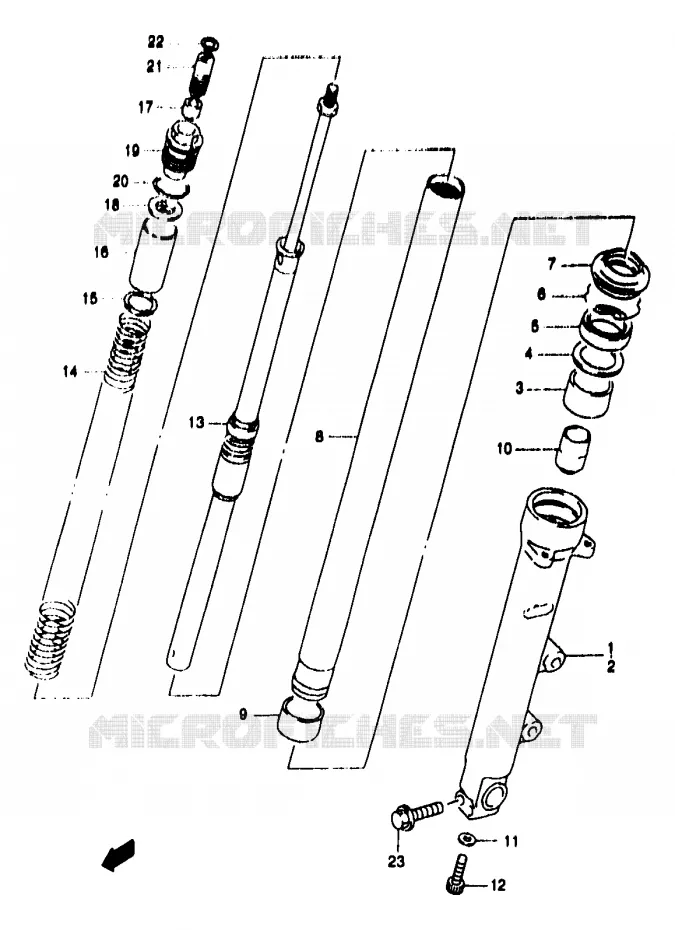

FRONT FORK (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1999 GSF1200X/GSF1200SX/GSF1200SAX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
DISCONTINUE<br />TUBE, OUTER RH
DISCONTINUE
TUBE, OUTER RH

51130-27E40-000   5113027E40000

5113027E40000
Not available
2
DISCONTINUE<br />TUBE, OUTER LH
DISCONTINUE
TUBE, OUTER LH

51140-27E00-000   5114027E00000

5114027E00000
Not available
3
BUSH, GUIDE
BUSH, GUIDE

51152-31E00-000   5115231E00000

5115231E00000

Unit Price

4
SPACER, SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

5
SEAL, OIL
SEAL, OIL

51153-14D00-000   5115314D00000

5115314D00000

Unit Price

6
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

7
SEAL, DUST
SEAL, DUST

51173-29E00-000   5117329E00000

5117329E00000

Unit Price

8
TUBE, INNER
TUBE, INNER

51110-27E00-000   5111027E00000

5111027E00000

Unit Price

9
51121-07J00<br />BUSH, SLIDE
51121-07J00
BUSH, SLIDE

51121-17C00-000   5112117C00000

5112117C00000
Not available
10
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

11
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

12
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

13
DISCONTINUE<br />ROD, DAMPER
DISCONTINUE
ROD, DAMPER

52110-27E10-000   5211027E10000

5211027E10000
Not available
14
DISCONTINUE<br />SPRING, FRONT
DISCONTINUE
SPRING, FRONT

51171-27E10-000   5117127E10000

5117127E10000
Not available
15
SEAT,SPRING LWR<br />SEAT, SPRING LOWER
SEAT, SPRING LWR
SEAT, SPRING LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

16
COLLAR, SPRING (32.9X34X50)
COLLAR, SPRING (32.9X34X50)

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

16
DISCONTINUE<br />COLLAR, SPRING (35X37X50)
DISCONTINUE
COLLAR, SPRING (35X37X50)

51176-17C00-000   5117617C00000

5117617C00000
Not available
17
NUT
NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

18
SEAT,SPRING UPR<br />SEAT, SPRING UPPER
SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

19
BOLT, FORK
BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

20
O RING,02.5,ID:13.8<br />O RING
O RING, 02.5, ID:13.8
O RING

09280-14011-000   0928014011000

0928014011000

Unit Price

21
ADJUSTER, SPRING
ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

22
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

23
BOLT<br />BOLT, RH
BOLT
BOLT, RH

01550-08457-000   0155008457000

0155008457000

Unit Price

99x
DISCONTINUE<br />DAMPER ASSY, FRONT FORK RH
DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-27E40-000   5110327E40000

5110327E40000
Not available
99x
DISCONTINUE<br />DAMPER ASSY, FRONT FORK LH
DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-27E10-000   5110427E10000

5110427E10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1999
