Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER

REAR FENDER FOR SUZUKI DR 125 2009

LABEL DRAWING NOT SHOWN

Item numbers

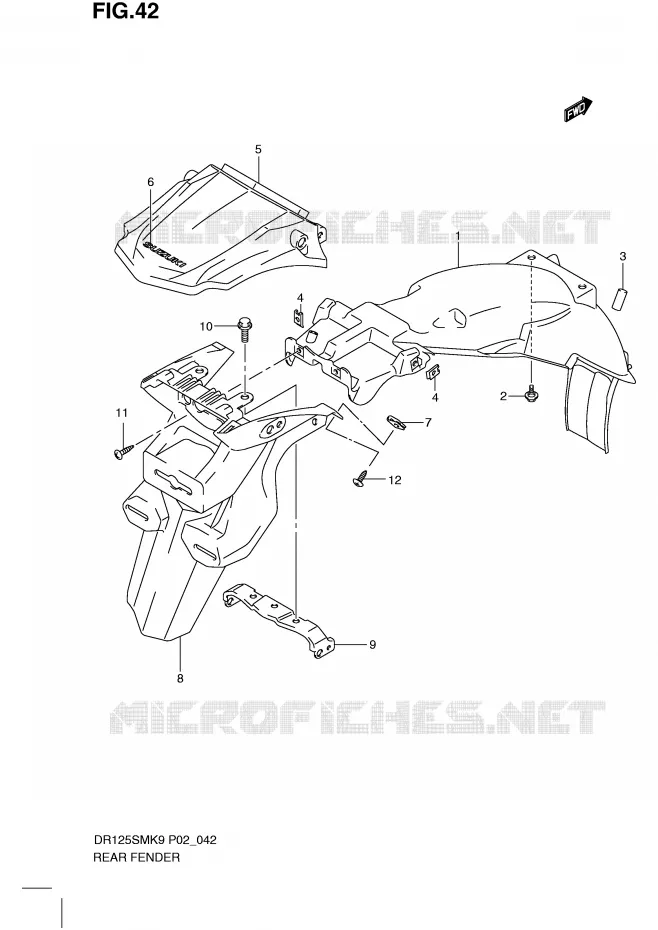

REAR FENDER Suzuki MOTO 125 DR 2009 DR125SMK9
1
2
3
4
4
5
5
6
7
8
9
10
11
12
1
BODY, REAR FENDER FRONT

63112-24H00-291   6311224H00291

6311224H00291
Not available
2
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

3
PLUG

09251-09005-000  

09251-09009-000
 0925109005000

Unit Price

4
NUT, FR BUMPER
NUT

09148-05047-000   0914805047000

0914805047000

Unit Price

5
BODY, REAR FENDER REAR (BLACK)

63113-24H00-019   6311324H00019

6311324H00019
Not available
5
BODY, REAR FENDER REAR (BLUE)

63113-24H00-YLW   6311324H00YLW

6311324H00YLW
Not available
6
EMBLEM (SILVER)

68171-24H00-YD8   6817124H00YD8

6817124H00YD8
Not available
7
NUT, FR BUMPER
NUT

09148-05047-000   0914805047000

0914805047000

Unit Price

8
EXTENSION, REAR FENDER

63311-24H00-291   6331124H00291

6331124H00291
Not available
9
BRACKET, EXTENSION

63121-24H00-000   6312124H00000

6312124H00000
Not available
10
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

11
SCREW<br />SCREW, UPPER
SCREW
SCREW, UPPER

03541-0516B-000   035410516B000

035410516B000

Unit Price

12
SCREW<br />SCREW, LOWER
SCREW
SCREW, LOWER

03541-0512B-000   035410512B000

035410512B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
