Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

THROTTLE BODY FOR SUZUKI DR 125 2009

AIR FILTER

Item numbers

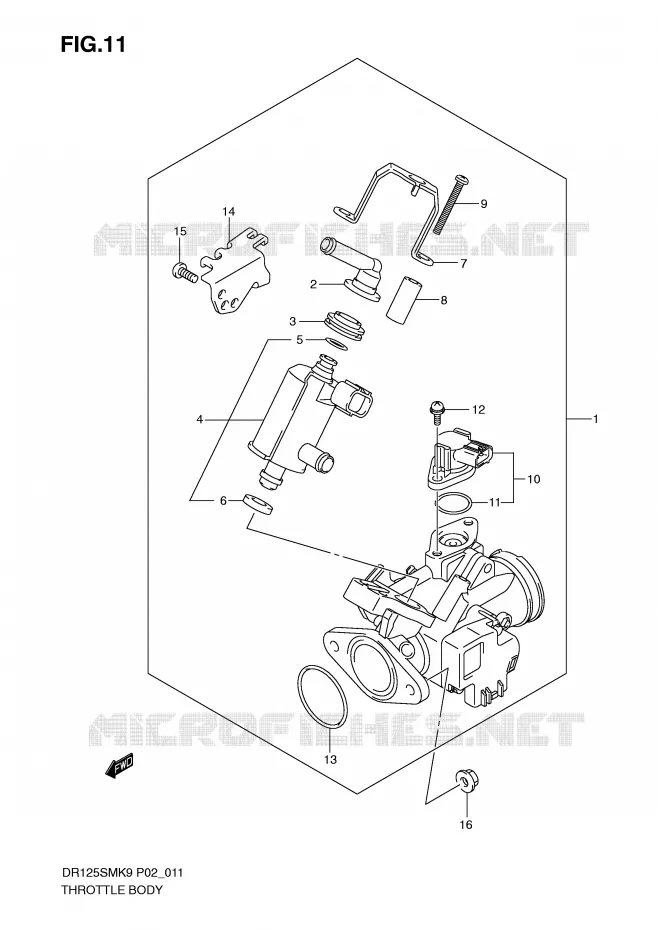

THROTTLE BODY Suzuki MOTO 125 DR 2009 DR125SMK9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
BODY ASSY, THROTTLE

13400-24H00-000   1340024H00000

1340024H00000
Not available
2
NIPPLE

15721-13G00-000   1572113G00000

1572113G00000

Unit Price

3
DISCONTINUE
CUSHION

15713-32G00-000  

1571332G00000
Not available
4
INJECTOR ASSY, FUEL

15710-13G01-000   1571013G01000

1571013G01000
Not available
5
O RING

13374-60A00-000   1337460A00000

1337460A00000
Not available
6
CUSHION, FUEL INJECTOR LWR
CUSHION

15712-32G00-000   1571232G00000

1571232G00000

Unit Price

7
BRACKET

15714-13G00-000   1571413G00000

1571413G00000

Unit Price

8
PIPE

13511-13G00-000   1351113G00000

1351113G00000

Unit Price

9
SCREW

13602-42E00-000   1360242E00000

1360242E00000

Unit Price

10
SOLENOID ASSY

13420-16HA0-000  

13420-16HA1-000
 1342016HA0000

Unit Price

11
DISCONTINUE
O RING

13425-33G00-000  

1342533G00000
Not available
12
SCREW

13601-13G00-000   1360113G00000

1360113G00000

Unit Price

13
O RING

13251-13G00-000   1325113G00000

1325113G00000

Unit Price

14
BRACKET

13565-24H00-000   1356524H00000

1356524H00000
Not available
15
SCREW<br />BOLT
SCREW
BOLT

02112-05107-000   0211205107000

0211205107000

Unit Price

16
NUT

08316-1006C-000   083161006C000

083161006C000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
