TAIL LIGHT FOR SUZUKI DR 125 2009

WIRING HARNESS

Item numbers

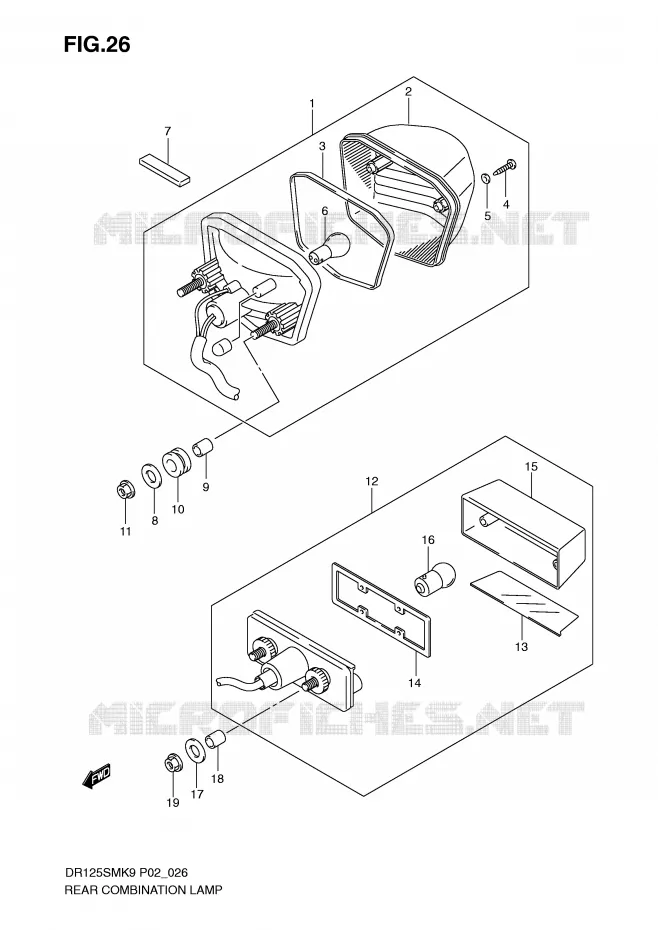

TAIL LIGHT Suzuki MOTO 125 DR 2009 DR125SMK9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY, REAR COMBINATION

35710-24H00-000   3571024H00000

3571024H00000
Not available
2
LENS

35712-24H00-000   3571224H00000

3571224H00000
Not available
3
GASKET

35713-24H00-000   3571324H00000

3571324H00000
Not available
4
SCREW

03211-0412B-000   032110412B000

032110412B000
Not available
5
WASHER

35727-24H00-000   3572724H00000

3572724H00000
Not available
6
BULB (12V21/5W)

09471-C12-083J000   09471C12083J000

09471C12083J000
Not available
7
CUSHION,FRAME COVER<br />CUSHION, REAR CCNTER
CUSHION, FRAME COVER
CUSHION, REAR CCNTER

47117-46400-000   4711746400000

4711746400000

Unit Price

8
WASHER (6.5X20X1.2)

D8322-9106A-000   D83229106A000

D83229106A000
Not available
9
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

10
CUSHION

09320-10063-000   0932010063000

0932010063000

Unit Price

11
NUT
NUT, REAR

08316-1006A-000   083161006A000

083161006A000

Unit Price

12
LAMP ASSY, LICENSE

35910-41G00-000  

35910-41G02-000
 3591041G00000

Unit Price

13
LENS, LICENSE LAMP

35912-41G00-000  

35912-41G01-000
 3591241G00000

Unit Price

14
GASKET

35913-41G00-000   3591341G00000

3591341G00000

Unit Price

15
COVER, LICENSE LAMP

35917-41G00-000   3591741G00000

3591741G00000

Unit Price

16
BULB (12V5W, BF150-40 160A)

09471-C12-140J000   09471C12140J000

09471C12140J000
Not available
17
WASHER, LICENSE LAMP

D8322-9106A-000   D83229106A000

D83229106A000
Not available
18
SPACER,6.5X10X7
SPACER, 6.5X10X7

09180-06263-000  

09180-06283-000
 0918006263000

Unit Price

19
NUT
NUT, LICENSE LAMP

08316-1006A-000   083161006A000

083161006A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
