FUEL TANK

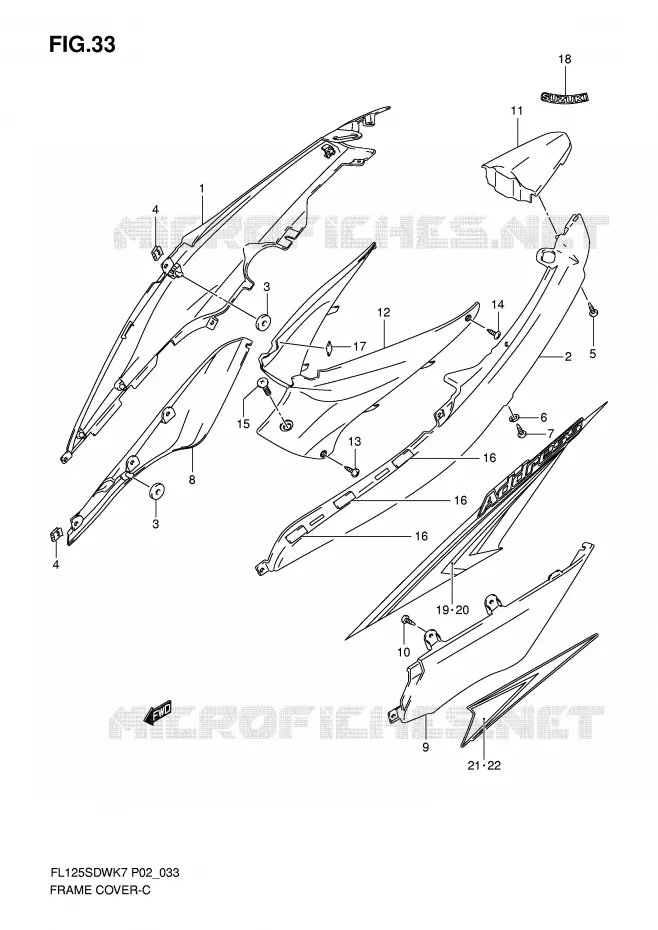

FAIRING (MODEL K7 / K8) FOR SUZUKI FL 125 2009

FAIRING (MODEL K9)

COVER, RH (SILVER)

47111-16H01-YNJ 4711116H01YNJ

Not available

COVER, RH (RED)

47111-16H01-YNK 4711116H01YNK

Not available

COVER, RH (BLUE)

47111-16H01-YNL 4711116H01YNL

Not available

COVER, LH (SILVER)

47211-16H01-YNJ 4721116H01YNJ

Not available

COVER, LH (RED)

47211-16H01-YNK 4721116H01YNK

Not available

COVER, LH (BLUE)

47211-16H01-YNL 4721116H01YNL

Not available

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$4,97

Unit Price

NUT, STEERING
NUT

09148-05038-000 0914805038000

$2,97

Unit Price

SCREW

03541-0516A-000 035410516A000

$2,97

Unit Price

WASHER

47245-07H00-000 4724507H00000

Not available

SCREW

03541-0520A-000

03541-0520B-000

$3,97

Unit Price

COVER, LOWER RH (BLACK)

47112-16H00-YNR 4711216H00YNR

Not available

COVER, LOWER LH (BLACK)

47212-16H00-YNR 4721216H00YNR

Not available

SCREW

03541-0512A-000 035410512A000

$2,97

Unit Price

COVER, REAR (SILVER)

47311-16H00-YNJ 4731116H00YNJ

Not available

COVER, REAR (RED)

47311-16H00-YNK 4731116H00YNK

Not available

COVER, REAR (BLUE)

47311-16H00-YNL 4731116H00YNL

Not available

COVER, FRONT

47511-16H10-000 4751116H10000

Not available

SCREW
SCREW, FRONT

03541-0516A-000 035410516A000

$2,97

Unit Price

SCREW
SCREW, REAR

03541-0512A-000 035410512A000

$2,97

Unit Price

SCREW, CENTER

53274-09G10-000 5327409G10000

Not available

CUSHION, COVER FRONT

48135-47G00-000 4813547G00000

Not available

CUSHION

47512-16H00-000 4751216H00000

Not available

EMBLEM, "SUZUKI"

68131-16H10-YNJ 6813116H10YNJ

Not available

EMBLEM, "SUZUKI"

68131-16H10-YNK 6813116H10YNK

Not available

EMBLEM, "SUZUKI"

68131-16H10-YNL 6813116H10YNL

Not available

TAPE, COVER FRAME RH

68135-16H10-YNJ 6813516H10YNJ

Not available

TAPE, COVER FRAME RH

68135-16H10-YNK 6813516H10YNK

Not available

TAPE, COVER FRAME RH

68135-16H10-YNL 6813516H10YNL

Not available

TAPE, COVER FRAME LH

68145-16H10-YNJ 6814516H10YNJ

Not available

TAPE, COVER FRAME LH

68145-16H10-YNK 6814516H10YNK

Not available

TAPE, COVER FRAME LH

68145-16H10-YNL 6814516H10YNL

Not available

TAPE, FRAME COVER RH

68135-16H20-YNJ 6813516H20YNJ

Not available

TAPE, FRAME COVER RH

68135-16H20-YNK 6813516H20YNK

Not available

TAPE, FRAME COVER RH

68135-16H20-YNL 6813516H20YNL

Not available

TAPE, FRAME COVER LH

68145-16H20-YNJ 6814516H20YNJ

Not available

TAPE, FRAME COVER LH

68145-16H20-YNK 6814516H20YNK

Not available

TAPE, FRAME COVER LH

68145-16H20-YNL 6814516H20YNL

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL K7/K8) of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.
