INDICATORS

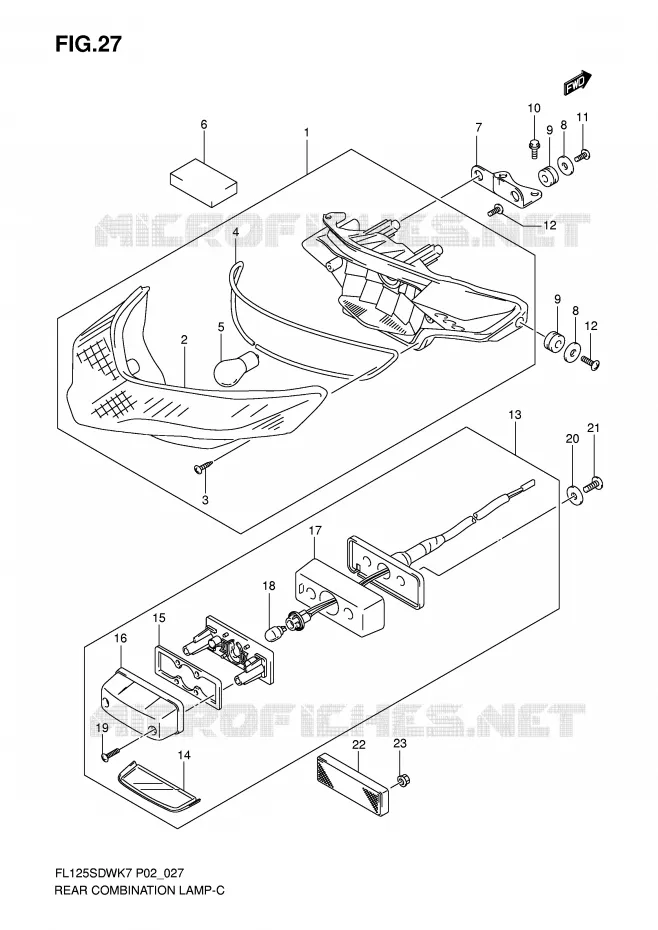

TAIL LIGHT FOR SUZUKI FL 125 2009

WIRING HARNESS

LAMP ASSY, REAR COMB

35710-16H10-000 3571016H10000

Not available

LENS

35712-16H10-000 3571216H10000

Not available

SCREW

03211-0416A-000 032110416A000

$2,97

Unit Price

GASKET

35713-16H10-000 3571316H10000

Not available

BULB(12V1.4W G30)
BULB (12V21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

CUSHION, REAR COMB

33652-16H10-000 3365216H10000

Not available

BRACKET, REAR COMB

35720-16H00-000 3572016H00000

Not available

WASHER(5.5X18X1)
WASHER (5.5X18X1.0)

09160-05045-000 0916005045000

$3,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

BOLT
BOLT, REAR COMB BRACKET

01547-0612B-000 015470612B000

$4,97

Unit Price

SCREW
SCREW, REAR COMB

03541-0516B-000 035410516B000

$3,97

Unit Price

SCREW
SCREW, REAR LAMP UNDER

03541-0516B-000 035410516B000

$3,97

Unit Price

LAMP ASSY, LICENSE

35910-16G30-000

35910-16G31-000

$97,97

Unit Price

LENS

35912-16G00-000

35912-16G01-000

$16,97

Unit Price

GASKET

35913-16G00-000 3591316G00000

$8,97

Unit Price

COVER

35917-16G00-000 3591716G00000

$14,97

Unit Price

SPACER

35978-16G30-000 3597816G30000

$10,97

Unit Price

BULB 12V1.7W, T6.5
BULB (12V5W)

09471-12216-000

Not available

SCREW

03211-0416A-000 032110416A000

$2,97

Unit Price

WASHER
WASHER (5.5X20X1.2)

09160-05501-000 0916005501000

$2,97

Unit Price

SCREW
SCREW, LICENSE LAMP

03541-0540B-000 035410540B000

$3,97

Unit Price

REFLECTOR ASSY, RR
REFLEX, REFLECTOR ASSY, REAR

35970-07F01-000 3597007F01000

$21,97

Unit Price

NUT
NUT, REAR RR

08316-1005B-000 083161005B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.
