FAIRING (MODEL K9)

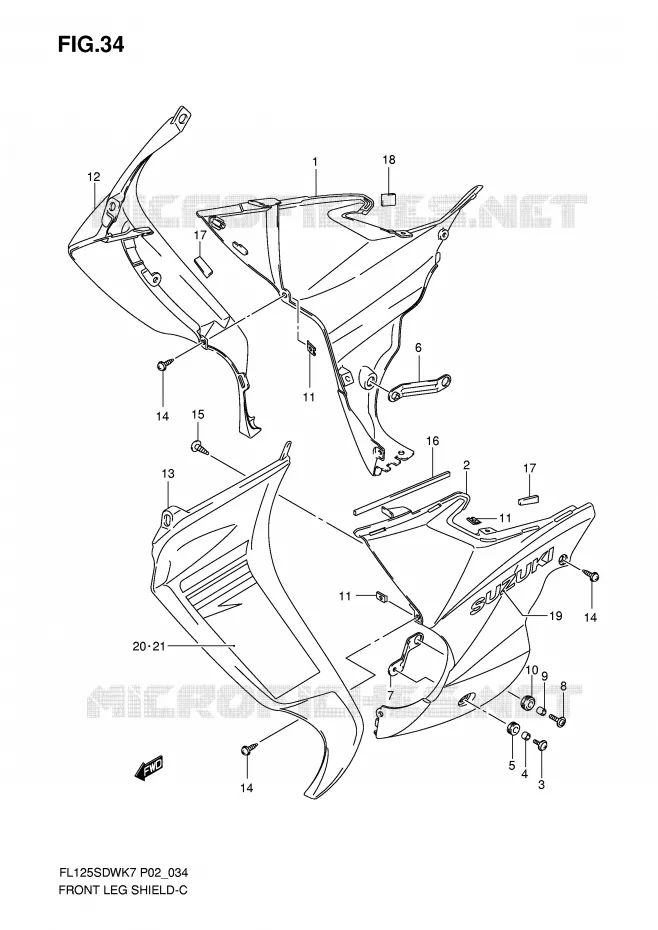

FRONT FAIRING (MODEL K7 / K8) FOR SUZUKI FL 125 2009

FRONT FAIRING (MODEL K9)

SHIELD, LEG SIDE RH (BLACK)

48111-16H10-YNR 4811116H10YNR

Not available

SHIELD, LEG SIDE LH (BLACK)

48121-16H10-YNR 4812116H10YNR

Not available

SCREW, SIDE

48116-07H00-000 4811607H00000

Not available

SPACER

48211-09G00-000 4821109G00000

Not available

09320-09062

09320-09026-000

Not available

BRACE, RH

48140-16H00-000 4814016H00000

Not available

BRACE, LH

48150-16H00-000 4815016H00000

Not available

SCREW 6 X 16

09136-06062-000

09136-06017-000

$3,97

Unit Price

SPACER

48212-16H00-000 4821216H00000

Not available

CUSHION

48278-16H00-000 4827816H00000

Not available

NUT, STEERING
NUT

09148-05038-000 0914805038000

$2,97

Unit Price

SHIELD, LEG FRONT RH (SILVER)

48112-16H00-YNJ 4811216H00YNJ

Not available

SHIELD, LEG FRONT RH (RED)

48112-16H00-YNK 4811216H00YNK

Not available

SHIELD, LEG FRONT RH (BLUE)

48112-16H00-YNL 4811216H00YNL

Not available

SHIELD, LEG FRONT LH (SILVER)

48122-16H00-YNJ 4812216H00YNJ

Not available

SHIELD, LEG FRONT LH (RED)

48122-16H00-YNK 4812216H00YNK

Not available

SHIELD, LEG FRONT LH (BLUE)

48122-16H00-YNL 4812216H00YNL

Not available

SCREW

03541-1516A-000 035411516A000

$3,97

Unit Price

SCREW

03541-0412A-000 035410412A000

$2,97

Unit Price

CUSHION, UPPER

48113-16H10-000 4811316H10000

Not available

CUSHION, LEG SHIELD

48136-20G00-000 4813620G00000

Not available

CUSHION, INNER

48114-16H00-000 4811416H00000

Not available

EMBLEM, "SUZUKI"

68641-16H10-YNJ 6864116H10YNJ

Not available

TAPE, LEGSHIELD RH

68645-16H10-YNJ 6864516H10YNJ

Not available

TAPE, LEGSHIELD RH

68645-16H10-YNK 6864516H10YNK

Not available

TAPE, LEGSHIELD RH

68645-16H10-YNL 6864516H10YNL

Not available

TAPE, LEGSHIELD LH

68646-16H10-YNJ 6864616H10YNJ

Not available

TAPE, LEGSHIELD LH

68646-16H10-YNK 6864616H10YNK

Not available

TAPE, LEGSHIELD LH

68646-16H10-YNL 6864616H10YNL

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FAIRING (MODEL K7/K8) of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.
