FRAME COVER MODEL H / J

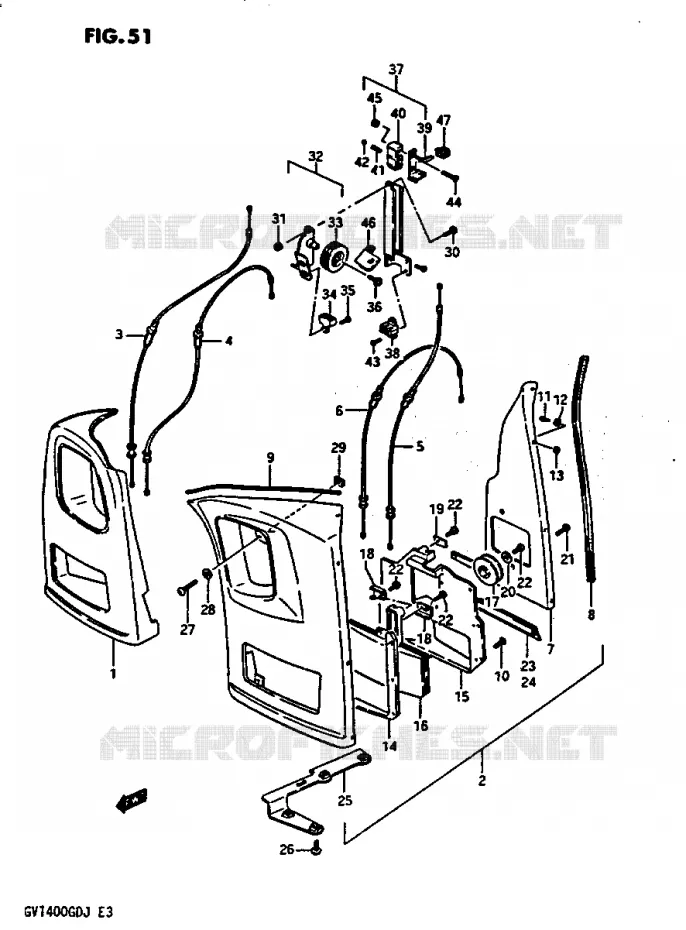

FAIRING GV1400GCG / GCH FOR SUZUKI CAVALCADE 1400 1987

FRONT FENDER

FAIRING ASSY EX, RH (BLACK)

48701-24A00-13Z 4870124A0013Z

Not available

FAIRING ASSY EX, RH (MAROON)

48701-24A00-24D 4870124A0024D

Not available

DISCONTINUE
FAIRING ASSY EX, RH (BLUE)

48701-24A00-24V 4870124A0024V

Not available

FAIRING ASSY EX, RH (BROWN)

48701-24A00-27U 4870124A0027U

Not available

FAIRING ASSY EX, LH (BLACK)

48702-24A00-13Z 4870224A0013Z

Not available

FAIRING ASSY EX, LH (MAROON)

48702-24A00-24D 4870224A0024D

Not available

DISCONTINUE
FAIRING ASSY EX, LH (BLUE)

48702-24A00-24V 4870224A0024V

Not available

FAIRING ASSY EX, LH (BROWN)

48702-24A00-27U 4870224A0027U

Not available

CABLE COMP, VENTILATO, RH NO.1

58960-24A00-000 5896024A00000

Not available

CABLE COMP, VENTILATO, RH NO.2

58960-24A10-000 5896024A10000

Not available

CABLE COMP, VENTILATO, LH NO.1

58970-24A00-000 5897024A00000

Not available

CABLE COMP, VENTILATO, LH NO.2

58970-24A10-000 5897024A10000

Not available

FAIRING EXTENSION, RH (BLACK)

48712-24A00-13Z 4871224A0013Z

Not available

.FAIRING EXTENSION, RH (MAROON)

48712-24A00-24D 4871224A0024D

Not available

.FAIRING EXTENTION, RH (BLUE)

48712-24A00-24V 4871224A0024V

Not available

FAIRING EXTENTION, RH (BROWN)

48712-24A00-27U 4871224A0027U

Not available

FAIRING EXTENSION, LH (BLACK)

48752-24A00-13Z 4875224A0013Z

Not available

.FAIRING EXTENSION, LH (MAROON)

48752-24A00-24D 4875224A0024D

Not available

.FAIRING EXTENTION , LH (BLUE)

48752-24A00-24V 4875224A0024V

Not available

FAIRING EXTENTION, LH (BROWN)

48752-24A00-27U 4875224A0027U

Not available

MOLDING, NO.1

48713-24A00-000 4871324A00000

Not available

MOLDING

48714-24A00-000

Not available

09131-03007
.SCREW

48716-24A00-000 4871624A00000

Not available

SCREW

48717-24A00-000 4871724A00000

Not available

WASHER

48718-24A00-000 4871824A00000

Not available

NUT

48719-24A00-000 4871924A00000

Not available

GUIDE, VENT LID NO.1

48721-24A00-000 4872124A00000

Not available

GUIDE, VENT LID NO.2, RH

48723-24A00-000 4872324A00000

Not available

GUIDE, VENT LID NO.2, LH

48763-24A00-000 4876324A00000

Not available

LID VENTILATOR, RH (BLACK)

48722-24A00-13Z 4872224A0013Z

Not available

LID VENTILATOR, RH (MAROON)

48722-24A00-24D 4872224A0024D

Not available

LID, VENTILATOR, RH (BLUE)

48722-24A00-24V 4872224A0024V

Not available

LID, VENTILATOR, RH (BROWN)

48722-24A00-27U 4872224A0027U

Not available

LID VENTILATOR, LH (BLACK)

48762-24A00-13Z 4876224A0013Z

Not available

.LID VENTILATOR, LH (MAROON)

48762-24A00-24D 4876224A0024D

Not available

LID, VENTILATOR, LH (BLUE)

48762-24A00-24V 4876224A0024V

Not available

LID, VENTILATOR, LH (BROWN)

48762-24A00-27U 4876224A0027U

Not available

GUIDE, VENT CABLE

48724-24A00-000 4872424A00000

Not available

48726-24A00
.HOLDER, VENT CABLE RH

48725-24A00-000 4872524A00000

Not available

48726-24A00
.HOLDER, VENT CABLE LH

48765-24A00-000 4876524A00000

Not available

DISCONTINUE
HOLDER, VENT CABLE OUTER

48726-24A00-000 4872624A00000

Not available

WASHER(4.5X16X1.2)

09160-04014-000

09160-04026-000

$3,97

Unit Price

SCREW

02142-04105-000

02142-0410A-000

$2,97

Unit Price

SCREW

03541-04125-000

03541-0412B-000

$2,97

Unit Price

MOLDING, FAIRING NO.3

48753-24A00-000 4875324A00000

Not available

.MOLDING, FAIRING NO.4

48754-24A00-000 4875424A00000

Not available

DISCONTINUE

48715-24A00-000

Not available

48755-24A90
BRACKET, EXTENSION LH

48755-24A00-000 4875524A00000

Not available

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

03112-05353
SCREW 5X35

03111-05355-000 0311105355000

Not available

WASHER, 5.5X14X1.20

09160-05036-000

09160-05048-000

$2,97

Unit Price

NUT

09148-05015-000

09148-05005-000

$3,97

Unit Price

BOLT

01107-06165-000

01500-06163-000

$3,97

Unit Price

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

DISCONTINUE
GUIDE ASSY, VENTILATO

48801-24A00-000 4880124A00000

Not available

48801-24A00
.GUIDE

48821-24A00-000 4882124A00000

Not available

GUIDE

48822-24A00-000 4882224A00000

Not available

SCREW

02112-34105-000

02112-34103-000

$3,97

Unit Price

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

DISCONTINUE
OPERATION ASSY, VENTI

48802-24A01-000 4880224A01000

Not available

GUIDE

48822-24A00-000 4882224A00000

Not available

48802-24A01
.LEVER

48823-24A00-000 4882324A00000

Not available

SLIDER VENT OPERAT

48824-24A01-000 4882424A01000

Not available

SPRING

48825-24A00-000 4882524A00000

Not available

BALL
STEEL BALL

06111-09004-000 0611109004000

$2,97

Unit Price

SCREW

02112-34105-000

02112-34103-000

$3,97

Unit Price

02122-0516B
.SCREW 5X16

02122-05165-000 0212205165000

Not available

NUT

08310-00057-000 0831000057000

$3,97

Unit Price

BRKT COMP, VENT OPERA

48840-24A00-000 4884024A00000

Not available

KNOB, VENTILATOR OPER

48851-24A00-000 4885124A00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING GV1400GCG/GCH of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
