BUMPER NO.2

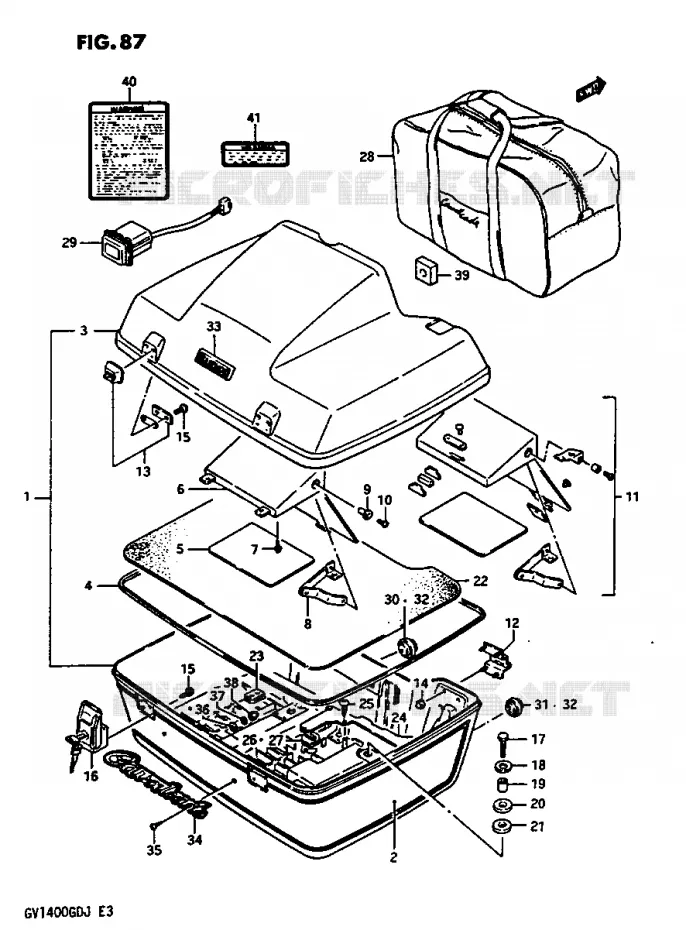

TRUNK GV1400GDG / GTG FOR SUZUKI CAVALCADE 1400 1987

TRUNK GV1400GCG REFER TO FIG.89 1-K-14

TRUNK ASSY, TRAVEL

93100-24A00-7UM 9310024A007UM

Not available

DISCONTINUE
TRUNK ASSY, TRAVEL

93100-24A00-7UN 9310024A007UN

Not available

TRUNK ASSY, TRAVEL (MAROON)

93100-24A10-12S 9310024A1012S

Not available

TRUNK ASSY, TRAVEL (CHARCOAL)

93100-24A10-24K 9310024A1024K

Not available

TAPE SET, TRAVEL TRUN

68790-24A00-7UP 6879024A007UP

Not available

.TAPE SET, TRAVEL TRUN

68790-24A00-7UR 6879024A007UR

Not available

.TAPE SET, TRVL TRUNK

68790-24A10-78V 6879024A1078V

Not available

TAPE SET, TRVL TRUNK

68790-24A10-7US 6879024A107US

Not available

.LID, TRAVEL TRUNK

93120-24A00-12S 9312024A0012S

Not available

LID, TRAVEL TRUNK

93120-24A00-24G 9312024A0024G

Not available

.LID, TRAVEL TRUNK

93120-24A00-24H 9312024A0024H

Not available

.LID, TRAVEL TRUNK

93120-24A00-24K 9312024A0024K

Not available

..SEAL, TRUNK LID

93115-24A00-000 9311524A00000

Not available

..MIRROR TRAVEL TRUNK

93128-24A00-000 9312824A00000

Not available

..BASE, MIRROR

93127-24A00-000 9312724A00000

Not available

SCREW

03511-04125-000

03511-04123-000

$2,97

Unit Price

STOPPER, OPEN

93129-24A00-000 9312924A00000

Not available

WASHER, OPEN STOPPER

93126-24A00-000 9312624A00000

Not available

SCREW

02112-34105-000

02112-34103-000

$3,97

Unit Price

HINGE, TRAVEL TRUNK

93130-24A01-000 9313024A01000

Not available

LOCK PLATE, TRUNK LID

93316-24A02-000 9331624A02000

Not available

NUT 4MM

08313-11045-000 0831311045000

Not available

SCREW

02142-05084-000

02142-05083-000

$2,97

Unit Price

DISCONTINUE
LOCK SET, SIDE BAG

93300-24820-000 9330024820000

Not available

BOLT

01500-06257-000 0150006257000

$2,97

Unit Price

WASHER

09160-06030-000

09160-06136-000

$3,97

Unit Price

SPACER

09180-06055-000 0918006055000

Not available

CUSHION, UPPER

09320-09023-000 0932009023000

Not available

CUSHION, LOWER

09320-09023-000 0932009023000

Not available

95415-24A10
SEAT

95415-24A00-000 9541524A00000

Not available

GROMMET

09309-20001-000 0930920001000

Not available

GROMMET

09309-20002-000 0930920002000

Not available

COVER, TRAVEL TRUNK A

93116-24A00-000 9311624A00000

Not available

SCREW

03541-04105-000

03541-0410A-000

$2,97

Unit Price

GROMMET

09309-24001-000 0930924001000

Not available

GROMMET

09309-24002-000 0930924002000

Not available

LUGGAGE BAG, TRAVEL T

93410-24A01-000 9341024A01000

Not available

SWITCH AIR AUX

62680-24A00-000 6268024A00000

Not available

GROMMET

45425-24A00-000 4542524A00000

Not available

GROMMET, WIRE

45426-24A00-000 4542624A00000

Not available

GROMMET, HOSE AIRSEAT

45425-24A10-000 4542524A10000

Not available

EMBLEM, TRVL TRNK, UPR

68285-24A00-000 6828524A00000

Not available

EMBLEM "CAVALCADE"

68286-24A00-000 6828624A00000

Not available

SCREW 3X16

02132-03165-000 0213203165000

Not available

WASHER, 3.3X8X0.5

08322-21035-000 0832221035000

Not available

DISCONTINUE
WASHER, LOCK

09162-03002-000

Not available

NUT 3MM

08313-11035-000 0831311035000

Not available

SEAL AIR HOSE PROTCR

45429-24A00-000 4542924A00000

Not available

LABEL, WARNING

68613-24A02-000 6861324A02000

Not available

LABEL, WRNG SHFT LK R

68619-24A00-000 6861924A00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRUNK GV1400GDG/GTG of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
