CRANKSHAFT

CAMSHAFT -VALVE FOR SUZUKI CAVALCADE 1400 1987

TIMING

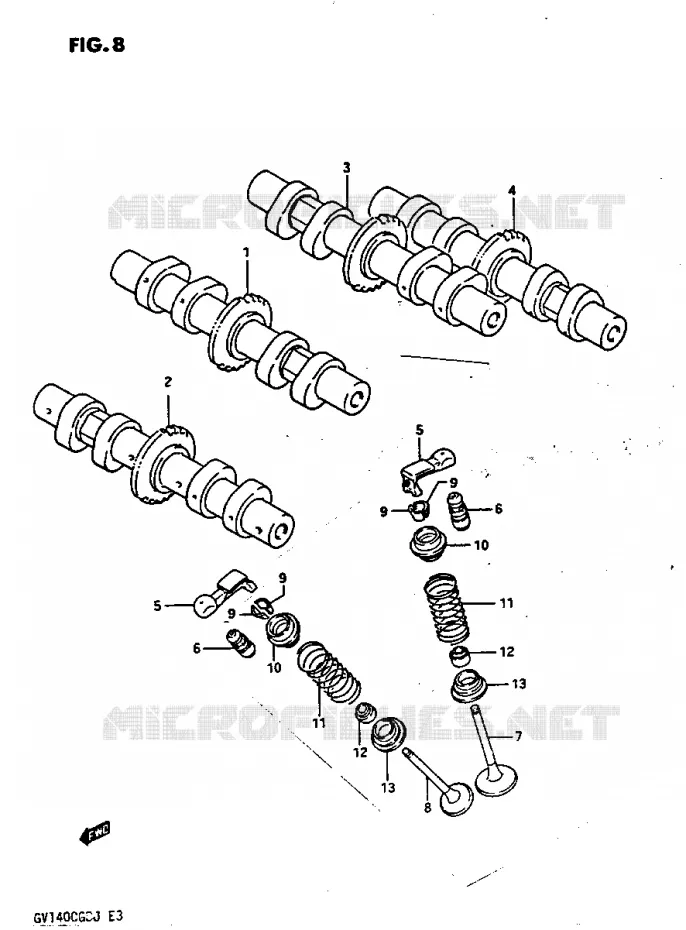

CAMSHAFT -VALVE Suzuki MOTO 1400 CAVALCADE 1987 GV1400GCH(G/H/J)

1

CAMSHAFT, FRT INTAKE

12710-24A01-000 1271024A01000

Not available

2

CAMSHAFT, FR EXHAUST

12720-24A01-000 1272024A01000

Not available

3

CAMSHAFT, RR INTAKE

12712-24A01-000 1271224A01000

Not available

4

CAMSHAFT, RR EXHAUST

12722-24A01-000 1272224A01000

Not available

5

DISCONTINUE

12841-24A00-000

Not available

6

ADJUSTER LASH

12860-05A01-000 1286005A01000

Not available

7

VALVE, INTAKE

12911-24A00-000 1291124A00000

Not available

8

VALVE, EXHAUST

12912-24A00-000 1291224A00000

Not available

9

COTTER, VALVE

12932-27A00-000 1293227A00000

$2,97

Unit Price

10

DISCONTINUE
RETAINER, VALVESPRING

12931-24A01-000 1293124A01000

Not available

11

SPRING, VALVE

12921-24A00-000 1292124A00000

Not available

12

OIL SEAL VALVE STEM

09289-05008-000 0928905008000

$8,97

Unit Price

13

SEAT, VALVE SPRING
SEAT, VALV SPRING

12933-33201-000 1293333201000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT -VALVE of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
