TRUNK GV1400GDG / GTG REFER TO FIG.88 (1-K-12) FOR GV1400GCG

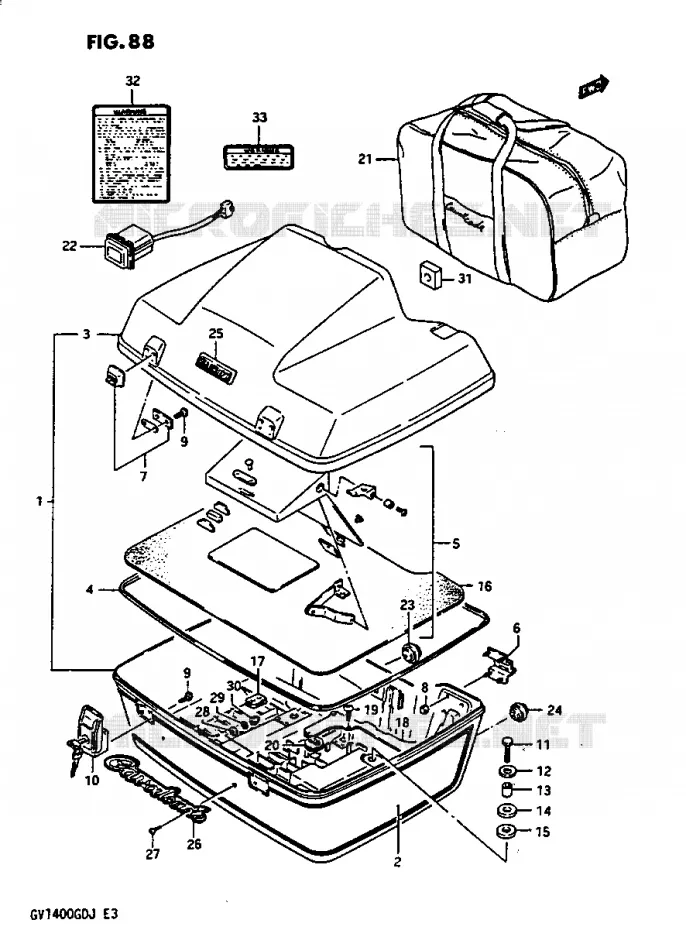

TRUNK GV1400GCG FOR SUZUKI CAVALCADE 1400 1987

TRAVEL TRUNK MODEL H REFER TO FIG.89A (1-K-16)

TRUNK ASSY, TRAVEL

93100-24A00-8RB 9310024A008RB

Not available

TRUNK ASSY, TRAVEL

93100-24A40-8VA 9310024A408VA

Not available

.TAPE SET, TRAVEL TRNK

68790-24A20-8JB 6879024A208JB

Not available

TAPE SET, TRAVEL TRNK

68790-24A20-8UZ 6879024A208UZ

Not available

.LID, TRAVEL TRUNK (BLUE)

93120-24A10-24V 9312024A1024V

Not available

LID, TRAVEL TRUNK (BROWN)

93120-24A10-27U 9312024A1027U

Not available

..SEAL, TRUNK LID

93115-24A00-000 9311524A00000

Not available

MIRROR, TRAVEL TRUNK

93140-24A01-000 9314024A01000

Not available

HINGE, TRAVEL TRUNK

93130-24A01-000 9313024A01000

Not available

LOCK PLATE, TRUNK LID

93316-24A02-000 9331624A02000

Not available

NUT 4MM

08313-11045-000 0831311045000

Not available

SCREW

02142-05084-000

02142-05083-000

$2,97

Unit Price

DISCONTINUE
LOCK SET, SIDE BAG

93300-24820-000 9330024820000

Not available

BOLT

01500-06257-000 0150006257000

$2,97

Unit Price

WASHER 6.3X34X1.6

09160-06105-000 0916006105000

Not available

SPACER

09180-06055-000 0918006055000

Not available

CUSHION, UPPER

09320-09030-000 0932009030000

Not available

CUSHION, LOWER

09320-09030-000 0932009030000

Not available

95415-24A10
SEAT, BODY

95415-24A00-000 9541524A00000

Not available

GROMMET

09309-20003-000 0930920003000

Not available

COVER, TRAVEL TRUNK A

93116-24A00-000 9311624A00000

Not available

SCREW

03541-04105-000

03541-0410A-000

$2,97

Unit Price

GROMMET, AIR SEAT HOSE

09309-24001-000 0930924001000

Not available

LUGGAGE BAG, TRAVEL T

93410-24A01-000 9341024A01000

Not available

SWITCH AIR AUX

62680-24A00-000 6268024A00000

Not available

GROMMET

45425-24A00-000 4542524A00000

Not available

GROMMET, WIRE

45426-24A90-000 4542624A90000

Not available

EMBLEM, TRVL TRNK, UPR

68285-24A00-000 6828524A00000

Not available

EMBLEM "CAVALCADE"

68286-24A00-000 6828624A00000

Not available

SCREW 3X16

02132-03165-000 0213203165000

Not available

WASHER, 3.3X8X0.5

08322-21035-000 0832221035000

Not available

DISCONTINUE
WASHER, LOCK

09162-03002-000

Not available

NUT 3MM

08313-11035-000 0831311035000

Not available

SEAL AIR HOSE PROTCR

45429-24A00-000 4542924A00000

Not available

LABEL, TRUNK WARNING

68613-24A20-000 6861324A20000

Not available

LABEL, WRNG SHFT LK R

68619-24A00-000 6861924A00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRUNK GV1400GCG of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
