Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FEDNER

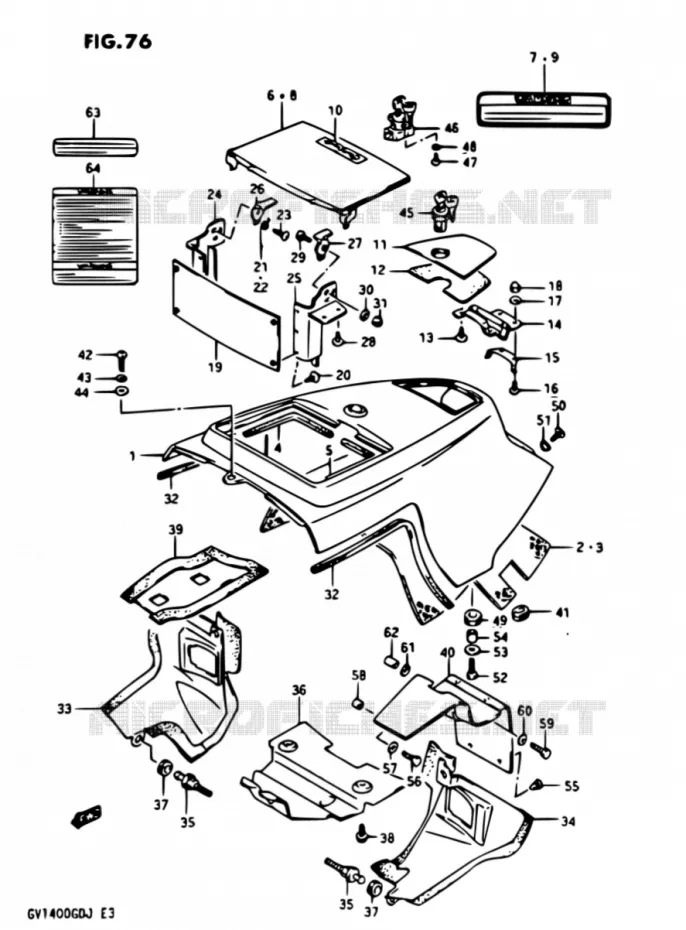

FRAME UPPER COVER MODEL G FOR SUZUKI CAVALCADE 1400 1987

FRAME UPPER COVER MODEL H / J

Item numbers

COVER FRAME UPPER (MAROON)

47300-24A00-12S 4730024A0012S

Not available

COVER ASSY, FRAME UPP (GOLD)

47300-24A00-24G 4730024A0024G

Not available

DISCONTINUE

47300-24A00-24H

Not available

COVER, FRAME UPPER (CHARCOAL)

47300-24A00-24K 4730024A0024K

Not available

COVER ASSY, FRAME UPP (BLUE)

47300-24A00-24V 4730024A0024V

Not available

COVER, FRAME UPPER (BROWN)

47300-24A00-27U 4730024A0027U

Not available

DISCONTINUE
.CUSHION, FRAME UPPER. RH

47315-24A02-000 4731524A02000

Not available

.CUSHION, FRAME UPPER, LH

47316-24A02-000 4731624A02000

Not available

.CUSHION AUDIO LID, RH

47391-24A01-000 4739124A01000

Not available

.CUSHION AUDIO LID, LH

47392-24A01-000 4739224A01000

Not available

DISCONTINUE
.LID SET AUDIO (GOLD)

47300-24820-24G 473002482024G

Not available

.LID SET, AUDIO (BROWN)

47300-24820-24H 473002482024H

Not available

.LID SET, AUDIO (BLUE)

47300-24840-24V 473002484024V

Not available

.LID SET, AUDIO (BROWN)

47300-24840-27U 473002484027U

Not available

68618-24A00
..LABEL, WRNG AUDIO LID

68617-24A00-000 6861724A00000

Not available

DISCONTINUE
.LABEL, WRNG COVER SDE

68618-24A00-000 6861824A00000

Not available

.LID SET AUDIO (MAROON)

47300-24830-12S 473002483012S

Not available

..LID SET AUDIO (CHARCOAL)

47300-24830-24K 473002483024K

Not available

..LABEL, WRN, AUDIO LID

68611-24A00-000 6861124A00000

Not available

.EMBLEM, AUDIO LID

68282-24A00-7ZW 6828224A007ZW

Not available

.LID, FUEL (MAROON)

47380-24A00-12S 4738024A0012S

Not available

.LID, FUEL (GOLD)

47380-24A00-24G 4738024A0024G

Not available

.LID, FUEL (BROWN)

47380-24A00-24H 4738024A0024H

Not available

.LID, FUEL (CHARCOAL)

47380-24A00-24K 4738024A0024K

Not available

.LID, FUEL (BLUE)

47380-24A00-24V 4738024A0024V

Not available

.LID FUEL (BROWN)

47380-24A00-27U 4738024A0027U

Not available

..CUSHION, FUEL LID(NA)

47385-24A01-000 4738524A01000

Not available

SCREW

03541-05083-000

03541-0508A-000

$2,97

Unit Price

.HINGE, FULL LID

47382-24A01-000 4738224A01000

Not available

.SPRING, HINGE

47388-24A00-000 4738824A00000

Not available

SCREW

02142-04105-000

02142-0410A-000

$2,97

Unit Price

WASHER

08322-21045-000

08322-0104B-000

$0,97

Unit Price

.NUT 4MM

08313-11045-000 0831311045000

Not available

.HOLDER, AUDIO LID

47635-24A01-000 4763524A01000

Not available

.SCREW 5 X 12

03541-05125-000 0354105125000

Not available

.SPRING, AUDIO LID, RH

09444-07001-000 0944407001000

Not available

.SPRING, LH

09444-07002-000 0944407002000

Not available

SCREW

03541-04125-000

03541-0412B-000

$2,97

Unit Price

.RAIL, RH

47633-24A00-000 4763324A00000

Not available

.RAIL, LH

47634-24A00-000 4763424A00000

Not available

.RAIL PIECE, RH

47631-24A01-000 4763124A01000

Not available

.RAIL PIECE, LH

47632-24A01-000 4763224A01000

Not available

SCREW

03541-05108-000

03541-0510A-000

$2,97

Unit Price

SCREW

02112-05164-000

02112-0516B-000

$2,97

Unit Price

.WASHER THRUST

08212-05161-000 0821205161000

Not available

NUT

08319-21055-000

08319-2105A-000

$3,97

Unit Price

.MOLDING, COVER FR UP

47389-24A01-000 4738924A01000

Not available

COVER, INNER, RH

47810-24A01-000 4781024A01000

Not available

COVER, INNER, LH

47820-24A01-000 4782024A01000

Not available

BOSS FRAME COVER

47250-38A01-000 4725038A01000

$14,97

Unit Price

COVER COMP, INNER

47850-24A00-000 4785024A00000

Not available

FRAME COVER CUSHION

09320-08013-000

09320-08509-000

$4,97

Unit Price

BOLT

01517-06127-000

01517-06122-000

$3,97

Unit Price

COVER COMP, UPPER, RH

47830-24A00-000 4783024A00000

Not available

COVER COMP, UPPER, LH

47840-24A00-000 4784024A00000

Not available

CUSHION, UPPER COVER LH

09308-05019-000 0930805019000

Not available

SCREW

02112-06203-000

02112-0620A-000

$2,97

Unit Price

08321-0106A
WASHER, LOCK

08321-21063-000

Not available

WASHER

09160-06039-000

09160-06109-000

$3,97

Unit Price

DISCONTINUE
LOCK SET TOOL HOLDER

95700-24820-000 9570024820000

Not available

DISCONTINUE
LOCK SET, AUDIO LID

95700-24880-000 9570024880000

Not available

SCREW

02112-03068-000

02112-0306B-000

$2,97

Unit Price

WASHER, LOCK

09162-03001-000 0916203001000

Not available

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$4,97

Unit Price

SCREW

02142-06164-000

02142-0616A-000

$2,97

Unit Price

WASHER

09169-06034-000

09169-06071-000

$4,97

Unit Price

BOLT

01107-06256-000

01500-0625B-000

$3,97

Unit Price

WASHER

08322-11063-000

08322-01063-000

$2,97

Unit Price

SPACER, 6.1X8X9.5

09180-06044-000

09180-06248-000

$3,97

Unit Price

RIVET

09229-06004-000 0922906004000

Not available

BOLT

01500-06207-000 0150006207000

$3,97

Unit Price

WASHER
WASHER HANDLE COVER

09160-06052-000 0916006052000

$3,97

Unit Price

SPACER 6.5 X 12 X 8

09180-06141-000 0918006141000

Not available

BOLT

01107-06255-000

01500-0625B-000

$3,97

Unit Price

WASHER

08322-21064-000

08322-0106A-000

$2,97

Unit Price

WASHER, 6.5X14X1.6

09160-06031-000

09160-06125-000

$3,97

Unit Price

SPACER

09180-06031-000

09180-06296-000

$2,97

Unit Price

LABEL, WRNG AUDIO BOX

68614-24A01-000 6861424A01000

Not available

LABEL, WRNG ACC/LOADG

68616-24A02-000 6861624A02000

Not available

LABEL, ACC/LOAD WARNI

68616-24A20-000 6861624A20000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME UPPER COVER MODEL G of your Suzuki of CAVALCADE. Let us know if you have any questions.
