TIMING

CARBURETOR FOR SUZUKI CAVALCADE 1400 1987

CARBURETOR FOR CALIFORNIA

Item numbers

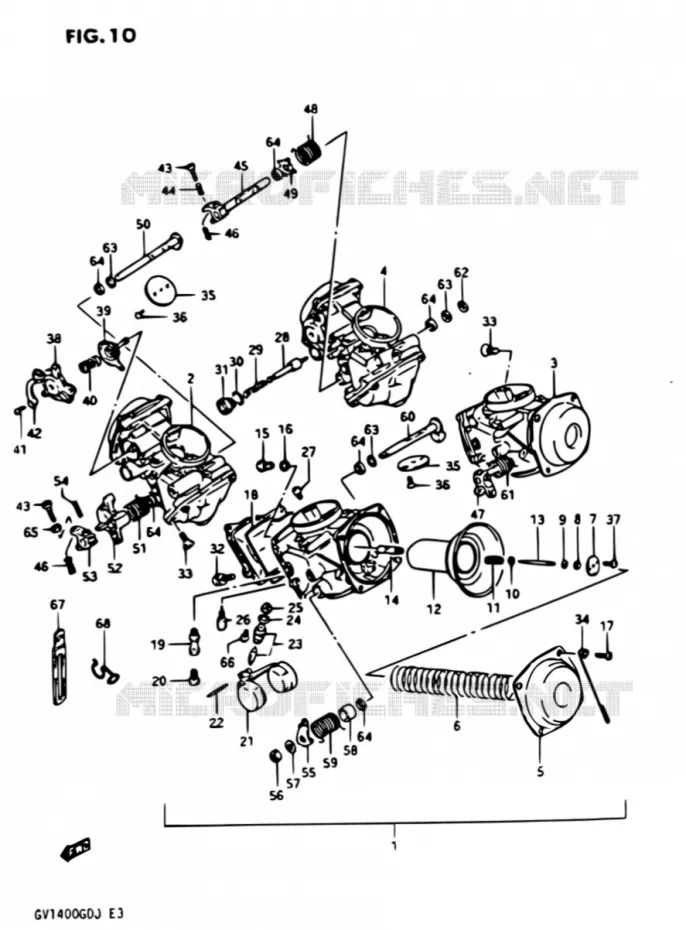

CARBURETOR Suzuki MOTO 1400 CAVALCADE 1987 GV1400GD H/GV1400GC H
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
36
37
38
39
40
41
42
43
43
44
45
46
46
47
48
49
50
51
52
53
54
54
54
55
56
57
58
59
60
61
62
63
63
63
64
64
64
64
65
66
68
1
CARB ASSY, FRONT, LH

13201-24A40-000   1320124A40000

1320124A40000
Not available
2
CARB ASSY, FRONT RH

13202-24A10-000   1320224A10000

1320224A10000
Not available
2
CARB ASSY, FRONT RH

13202-24A40-000   1320224A40000

1320224A40000
Not available
3
CARB ASSY, REAR, LH

13203-24A40-000   1320324A40000

1320324A40000
Not available
4
CARB ASSY, REAR, RH

13204-24A40-000   1320424A40000

1320424A40000
Not available
5
.COVER, DIAPHRAGM

13502-38A00-000   1350238A00000

1350238A00000

Unit Price

6
SPRING, DIAPHRAGM
.SPRING

13503-05A10-000   1350305A10000

1350305A10000

Unit Price

7
.PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

8
.RING
.RING

13387-44030-000   1338744030000

1338744030000

Unit Price

9
CLIP,NEEDLE<br />.E RING
CLIP, NEEDLE
.E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

10
.WASHER
.WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

11
.SPRING
.SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

12
DIAPHRAGM ASSY

13500-05A10-000  

13500-05A11-000
 1350005A10000

Unit Price

13
.NEEDLE, JET (5D24-1)

13383-24A10-000   1338324A10000

1338324A10000
Not available
14
DISCONTINUE
.JET NEEDLE (Y-7)

09494-00505-000   0949400505000

0949400505000
Not available
15
.SCREW

13605-05A10-000   1360505A10000

1360505A10000

Unit Price

16
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

17
SCREW<br />.5 X 10 CROSS SCREW
SCREW
.5 X 10 CROSS SCREW

02112-05107-000   0211205107000

0211205107000

Unit Price

18
O RING, FLOAT CHAMBER
.RING

13251-38A00-000   1325138A00000

1325138A00000

Unit Price

19
.HOLDER, MAIN JET

13385-05A11-000   1338505A11000

1338505A11000

Unit Price

20
.JET MAIN
.JET MAIN

09491-21023-000   0949121023000

0949121023000

Unit Price

21
DISCONTINUE
.FLOAT

13250-05A10-000   1325005A10000

1325005A10000
Not available
22
PIN, FLOAT
.FLOAT PIN

13254-20010-000   1325420010000

1325420010000

Unit Price

23
VALVE ASSY, NEEDLE

13370-24A00-000  

13370-05530-000
 1337024A00000

Unit Price

24
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

25
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

26
DISCONTINUE
.JET PILOT (25)

09492-25007-000   0949225007000

0949225007000
Not available
27
.JET, AIR (67.5)

09492-67001-000   0949267001000

0949267001000
Not available
28
.PLUNGER

13411-05A10-000   1341105A10000

1341105A10000
Not available
29
.SPRING

13417-05A10-000   1341705A10000

1341705A10000
Not available
30
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

31
HOLDER, GUIDE
.HOLDER

13418-05A10-000   1341805A10000

1341805A10000

Unit Price

32
.SCREW
.SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

33
.SCREW

13603-05A20-000   1360305A20000

1360305A20000
Not available
34
.CLIP

13692-05A10-000   1369205A10000

1369205A10000
Not available
35
.VALVE, THROTTLE

13551-05A00-000   1355105A00000

1355105A00000
Not available
36
.SCREW
.SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

37
SCREW

02112-03066-000  

02112-03063-000
 0211203066000

Unit Price

38
.COVER

13484-38A10-000   1348438A10000

1348438A10000

Unit Price

39
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

40
SPRING

13481-05A10-000  

13481-45C10-000
 1348105A10000

Unit Price

41
SCREW
SCREW

13602-05A40-000  

02112-0412A-000
 1360205A40000

Unit Price

42
.BRACKET

13627-24A00-000   1362724A00000

1362724A00000
Not available
43
.SCREW

13605-05A20-000   1360505A20000

1360505A20000
Not available
44
.SPRING

13271-05A10-000   1327105A10000

1327105A10000
Not available
45
.SHAFT ASSY

13550-07A10-000   1355007A10000

1355007A10000
Not available
46
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

47
.SHAFT ASSY

13550-07A20-000   1355007A20000

1355007A20000
Not available
48
.SPRING

13573-05A10-000   1357305A10000

1357305A10000
Not available
49
.PLATE

13447-05A10-000   1344705A10000

1344705A10000
Not available
50
.SHAFT ASSY

13550-07A30-000   1355007A30000

1355007A30000
Not available
51
.SPRING

13573-24A10-000   1357324A10000

1357324A10000
Not available
52
.LEVER

13553-05A10-000   1355305A10000

1355305A10000
Not available
53
.LEVER

13553-05A20-000   1355305A20000

1355305A20000
Not available
54
.PIN

13563-47070-000   1356347070000

1356347070000
Not available
55
.LEVER

13553-05A30-000   1355305A30000

1355305A30000
Not available
56
NUT<br />.NUT 8MM
NUT
.NUT 8MM

08310-00087-000   0831000087000

0831000087000

Unit Price

57
.WASHER

13606-47070-000   1360647070000

1360647070000
Not available
58
.RING

13557-05A20-000   1355705A20000

1355705A20000
Not available
59
.SPRING

13573-24A00-000   1357324A00000

1357324A00000
Not available
60
.SHAFT ASSY

13550-07A40-000   1355007A40000

1355007A40000
Not available
61
.SPRING

13573-05A40-000   1357305A40000

1357305A40000
Not available
62
.E RING
.E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

63
GASKET,THROTTLE SHAFT<br />.O RING
GASKET, THROTTLE SHAFT
.O RING

13557-47070-000   1355747070000

1355747070000

Unit Price

64
DISCONTINUE
.SEAL

13556-05A10-000  

1355605A10000
Not available
65
NUT

13607-05A10-000  

08310-11047-000
 1360705A10000

Unit Price

66
.SCREW
.SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

68
DISCONTINUE
.CLAMP

13692-24A00-000   1369224A00000

1369224A00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of CAVALCADE. Let us know if you have any questions.

Genuine parts for Suzuki 1400 CAVALCADE 1987

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FUEL TANK for Suzuki CAVALCADE 1400 1987

FUEL TANK
for Suzuki CAVALCADE 1400 1987

FRAME for Suzuki CAVALCADE 1400 1987

FRAME
for Suzuki CAVALCADE 1400 1987

FRONT FOOTREST for Suzuki CAVALCADE 1400 1987

FRONT FOOTREST
for Suzuki CAVALCADE 1400 1987

SEAT for Suzuki CAVALCADE 1400 1987

SEAT
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GDG/GTG/GDH/GDJ for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GDG / GTG / GDH / GDJ
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GCG/GCH for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GCG / GCH
for Suzuki CAVALCADE 1400 1987

FRAME COVER MODEL G for Suzuki CAVALCADE 1400 1987

FRAME COVER MODEL G
for Suzuki CAVALCADE 1400 1987

FRAME COVER MODEL H/J for Suzuki CAVALCADE 1400 1987

FRAME COVER MODEL H / J
for Suzuki CAVALCADE 1400 1987

FAIRING GV1400GCG/GCH for Suzuki CAVALCADE 1400 1987

FAIRING GV1400GCG / GCH
for Suzuki CAVALCADE 1400 1987

FRONT FENDER for Suzuki CAVALCADE 1400 1987

FRONT FENDER
for Suzuki CAVALCADE 1400 1987

REAR FEDNER for Suzuki CAVALCADE 1400 1987

REAR FEDNER
for Suzuki CAVALCADE 1400 1987

FRAME UPPER COVER MODEL G for Suzuki CAVALCADE 1400 1987

FRAME UPPER COVER MODEL G
for Suzuki CAVALCADE 1400 1987

FRAME UPPER COVER MODEL H/J for Suzuki CAVALCADE 1400 1987

FRAME UPPER COVER MODEL H / J
for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GDG/GTG F.NO.104470 for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GDG / GTG -F.NO.104470
for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GDG F.NO.104471 for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GDG F.NO.104471-
for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GCG for Suzuki CAVALCADE 1400 1987

FRONT FAIRING GV1400GCG
for Suzuki CAVALCADE 1400 1987

OUTER COWLING MODEL H for Suzuki CAVALCADE 1400 1987

OUTER COWLING MODEL H
for Suzuki CAVALCADE 1400 1987

OUTER COWLING MODEL J for Suzuki CAVALCADE 1400 1987

OUTER COWLING MODEL J
for Suzuki CAVALCADE 1400 1987

INNER FAIRING GV1400GDG/GTG/GDH/GDJ for Suzuki CAVALCADE 1400 1987

INNER FAIRING GV1400GDG / GTG / GDH / GDJ
for Suzuki CAVALCADE 1400 1987

INNER FAIRING GV1400GCG/GCH for Suzuki CAVALCADE 1400 1987

INNER FAIRING GV1400GCG / GCH
for Suzuki CAVALCADE 1400 1987

FRONT FAIRING STAY for Suzuki CAVALCADE 1400 1987

FRONT FAIRING STAY
for Suzuki CAVALCADE 1400 1987

BUMPER NO.1 for Suzuki CAVALCADE 1400 1987

BUMPER NO.1
for Suzuki CAVALCADE 1400 1987

BUMPER NO.2 for Suzuki CAVALCADE 1400 1987

BUMPER NO.2
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GDG/GTG for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GDG / GTG
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GCG for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY GV1400GCG
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY MODEL H for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY MODEL H
for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY MODEL J for Suzuki CAVALCADE 1400 1987

BACKREST ASSEMBLY MODEL J
for Suzuki CAVALCADE 1400 1987

SIDE BAG GV1400GDG/GTG for Suzuki CAVALCADE 1400 1987

SIDE BAG GV1400GDG / GTG
for Suzuki CAVALCADE 1400 1987

SIDE BAG GV1400GCG for Suzuki CAVALCADE 1400 1987

SIDE BAG GV1400GCG
for Suzuki CAVALCADE 1400 1987

SIDE BAG MODEL H for Suzuki CAVALCADE 1400 1987

SIDE BAG MODEL H
for Suzuki CAVALCADE 1400 1987

SIDE BAG MODEL J for Suzuki CAVALCADE 1400 1987

SIDE BAG MODEL J
for Suzuki CAVALCADE 1400 1987

CORNER LAMP COVER GV1400GCG/GCH for Suzuki CAVALCADE 1400 1987

CORNER LAMP COVER GV1400GCG / GCH
for Suzuki CAVALCADE 1400 1987

SADDLEBAG TRIM SET OPTIONAL for Suzuki CAVALCADE 1400 1987

SADDLEBAG TRIM SET OPTIONAL
for Suzuki CAVALCADE 1400 1987

TRUNK RACK / TRIM for Suzuki CAVALCADE 1400 1987

TRUNK RACK / TRIM
for Suzuki CAVALCADE 1400 1987

GLOVE BOX GV1400GDG/GTG/GDH/GDJ OPT for Suzuki CAVALCADE 1400 1987

GLOVE BOX GV1400GDG / GTG / GDH / GDJ OPT
for Suzuki CAVALCADE 1400 1987

Suzuki 1400 CAVALCADE 1987

Select your Suzuki 1987 model

1400 CAVALCADE 1987 GV1400GD H/GV1400GC H

Suzuki CAVALCADE

Displacement: 1400 cc
Year: 1987
Model code GV1400GD H / GV1400GC H
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
