CARBURETOR

CARBURETOR FOR CALIFORNIA FOR SUZUKI CAVALCADE 1400 1987

CARBURETOR FITTINGS

Item numbers

CARB ASSY, FRONT, LH

13201-24A50-000 1320124A50000

Not available

CARB ASSY, FRONT, RH

13202-24A50-000 1320224A50000

Not available

CARB ASSY, REAR, LH

13203-24A50-000 1320324A50000

Not available

CARB ASSY, REAR, RH

13204-24A50-000 1320424A50000

Not available

.COVER, DIAPHRAGM

13502-38A00-000 1350238A00000

$40,97

Unit Price

SPRING, DIAPHRAGM
.SPRING

13503-05A10-000 1350305A10000

$18,97

Unit Price

.PLATE

13389-37400-000 1338937400000

$9,97

Unit Price

.RING

13387-44030-000 1338744030000

$9,97

Unit Price

CLIP, NEEDLE
.E RING

13394-31210-000 1339431210000

$6,97

Unit Price

.WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

.SPRING

13388-44030-000 1338844030000

$10,97

Unit Price

DIAPHRAGM ASSY

13500-05A10-000

13500-05A11-000

$252,97

Unit Price

.NEEDLE, JET

13383-24A10-000 1338324A10000

Not available

DISCONTINUE
.JET NEEDLE

09494-00505-000 0949400505000

Not available

.SCREW

13605-05A10-000 1360505A10000

$15,97

Unit Price

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

SCREW
.5 X 10 CROSS SCREW

02112-05107-000 0211205107000

$2,97

Unit Price

O RING, FLOAT CHAMBER
.RING

13251-38A00-000 1325138A00000

$13,97

Unit Price

.HOLDER, MAIN JET

13385-05A11-000 1338505A11000

$20,97

Unit Price

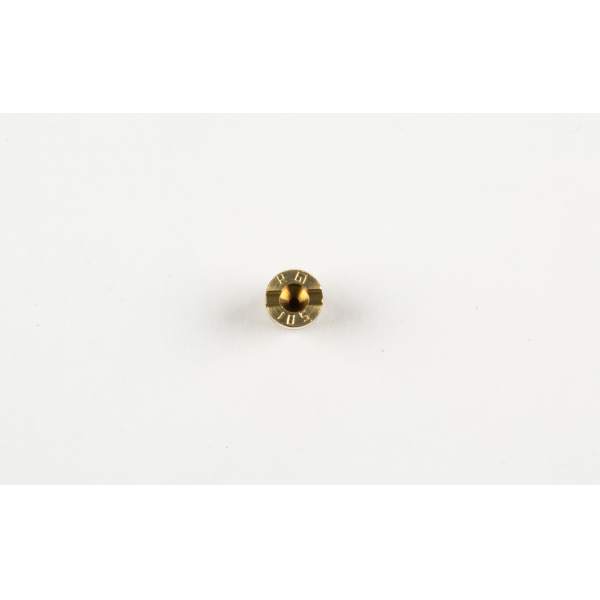

.JET MAIN

09491-21023-000 0949121023000

$16,97

Unit Price

DISCONTINUE
.FLOAT

13250-05A10-000 1325005A10000

Not available

PIN, FLOAT
.FLOAT PIN

13254-20010-000 1325420010000

$5,97

Unit Price

VALVE ASSY, NEEDLE

13370-24A00-000

13370-05530-000

$86,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

DISCONTINUE
.JET PILOT (25)

09492-25007-000 0949225007000

Not available

.JET, AIR (67.5)

09492-67001-000 0949267001000

Not available

.PLUNGER

13411-05A10-000 1341105A10000

Not available

.SPRING

13417-05A10-000 1341705A10000

Not available

O RING

13278-47090-000

13278-47091-000

$3,97

Unit Price

HOLDER, GUIDE
.HOLDER

13418-05A10-000 1341805A10000

$17,97

Unit Price

.SCREW

13601-04148-000 1360104148000

$4,97

Unit Price

.SCREW

13603-05A20-000 1360305A20000

Not available

.CLIP

13692-05A10-000 1369205A10000

Not available

.VALVE, THROTTLE

13551-05A00-000 1355105A00000

Not available

.SCREW

13604-44080-000 1360444080000

$6,97

Unit Price

SCREW

02112-03066-000

02112-03063-000

$2,97

Unit Price

.COVER

13484-38A10-000 1348438A10000

$24,97

Unit Price

DIAPHRAGM ASSY

13480-05A10-000

13480-05A11-000

$87,97

Unit Price

SPRING

13481-05A10-000

13481-45C10-000

$10,97

Unit Price

SCREW

13602-05A40-000

02112-0412A-000

$2,97

Unit Price

.BRACKET

13627-24A00-000 1362724A00000

Not available

.SCREW

13605-05A20-000 1360505A20000

Not available

.SPRING

13271-05A10-000 1327105A10000

Not available

.SHAFT ASSY

13550-07A10-000 1355007A10000

Not available

SPRING, THROTTLE SCREW

13268-96110-000

13268-96111-000

$6,97

Unit Price

.SHAFT ASSY

13550-07A20-000 1355007A20000

Not available

.SPRING

13573-05A10-000 1357305A10000

Not available

.PLATE

13447-05A10-000 1344705A10000

Not available

.SHAFT ASSY

13550-07A30-000 1355007A30000

Not available

.SPRING

13573-24A10-000 1357324A10000

Not available

.LEVER

13553-05A10-000 1355305A10000

Not available

.LEVER

13553-05A20-000 1355305A20000

Not available

.PIN

13563-47070-000 1356347070000

Not available

.LEVER

13553-05A30-000 1355305A30000

Not available

NUT
.NUT 8MM

08310-00087-000 0831000087000

$3,97

Unit Price

.WASHER

13606-47070-000 1360647070000

Not available

.RING

13557-05A20-000 1355705A20000

Not available

.SPRING

13573-24A00-000 1357324A00000

Not available

.SHAFT ASSY

13550-07A40-000 1355007A40000

Not available

.SPRING

13573-05A40-000 1357305A40000

Not available

.E RING

13617-44080-000 1361744080000

$5,97

Unit Price

GASKET, THROTTLE SHAFT
.WASHER

13557-47070-000 1355747070000

$7,97

Unit Price

.SEAL

13556-05A10-000

Not available

NUT

13607-05A10-000

08310-11047-000

$2,97

Unit Price

.SCREW

13602-05A10-000 1360205A10000

$5,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

DISCONTINUE
.CLAMP

13692-24A00-000 1369224A00000

Not available

HOSE, 5X8.2X2000

13683-00A40-000

09352-50823-00B

$19,97

Unit Price

.HOSE (5X9X270)

13683-24A50-000 1368324A50000

Not available

CLIP

13671-05A30-000

Not available

CLIP
.(CA) CLIP

13671-05A40-000 1367105A40000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR FOR CALIFORNIA of your Suzuki of CAVALCADE. Let us know if you have any questions.
