SIDE BAG MODEL J FOR SUZUKI CAVALCADE 1400 1987

Item numbers

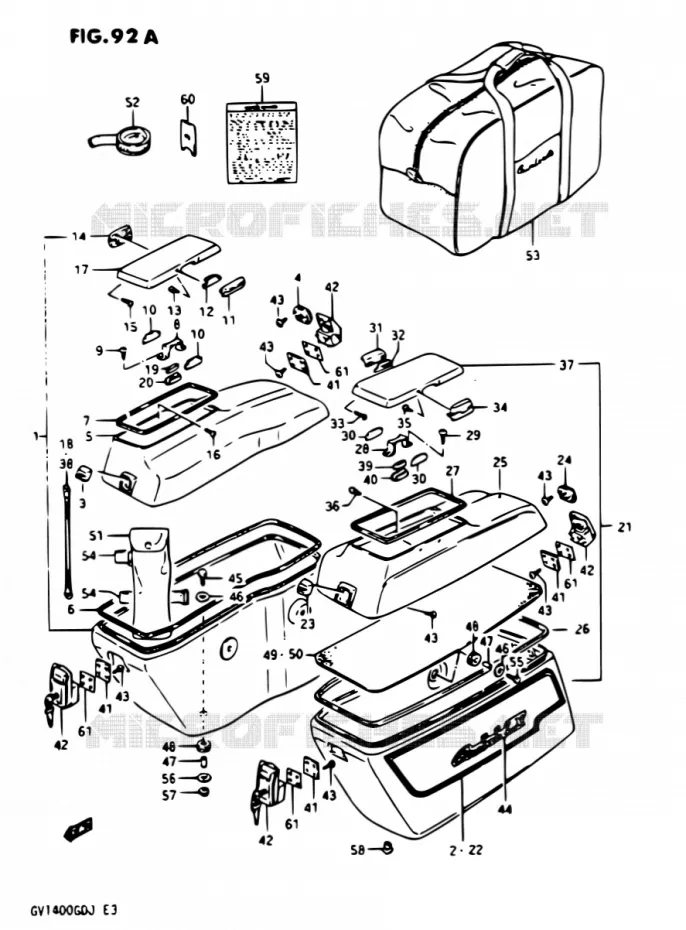

SIDE BAG MODEL J Suzuki MOTO 1400 CAVALCADE 1987  GV1400GD H/GV1400GC H
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
41
41
41
42
42
42
42
43
43
43
43
43
43
43
44
45
46
46
47
47
48
48
49
50
51
52
53
54
54
55
56
57
58
59
60
61
61
61
61
1
BAG ASSY, SIDE, RH (SILVER)

95400-24A70-20H   9540024A7020H

9540024A7020H
Not available

2
.TAPE SET, SIDE BAG, RH

68260-24A40-9VJ   6826024A409VJ

6826024A409VJ
Not available

3
.LOCK PLATE, TRUNK LID

93316-24A02-000   9331624A02000

9331624A02000
Not available

4
.LOCK PLATE, SIDEBAG L

93316-24A13-000   9331624A13000

9331624A13000
Not available

5
.LID, SIDE BAG R (SILVER)

95440-24A20-20H   9544024A2020H

9544024A2020H
Not available

6
DISCONTINUE
..SEAL, SIDE BAG

95422-24A01-000   9542224A01000

9542224A01000
Not available

7
..SEAL SIDE BAG

95446-24A02-000   9544624A02000

9544624A02000
Not available

8
..HOLDER LID LOCK

95516-24A00-000   9551624A00000

9551624A00000
Not available

9
..SCREW, HOLDER

03511-03125-000   0351103125000

0351103125000
Not available

10
..PLATE LID LOCK

95423-24A10-000   9542324A10000

9542324A10000
Not available

11
..LEVER, POCKET OPENER

95447-24A00-000   9544724A00000

9544724A00000
Not available

12
DISCONTINUE
..PLATE, LID LOCK NO.1

95424-24A00-000   9542424A00000

9542424A00000
Not available

13
02142-04063
..SCREW 4X6

02142-04065-000  

0214204065000
Not available

14
..HINGE POCKET

95443-24A00-000   9544324A00000

9544324A00000
Not available

15
442941

126114   126114

126114
Not available

16
..SCREW 4X12

02142-04125-000   0214204125000

0214204125000
Not available

17
DISCONTINUE
..LID SIDE BAG POCKET

95448-24A00-000   9544824A00000

9544824A00000
Not available

18
..BAND

93191-24A00-000   9319124A00000

9319124A00000
Not available

19
..MAGNET

95449-24A00-000   9544924A00000

9544924A00000
Not available

20
..BOX, MAGNET HOLDER

95517-24A00-000   9551724A00000

9551724A00000
Not available

21
BAG ASSY, SIDE, LH (MAROON)

95500-24A70-38G   9550024A7038G

9550024A7038G
Not available

22
.TAPE SET, SIDE BAG, LH

68290-24A40-9VJ   6829024A409VJ

6829024A409VJ
Not available

23
392431

2156922   2156922

2156922
Not available

24
625032

2156927   2156927

2156927
Not available

25
.LID, SIDE BAG L (SILVER)

95540-24A20-20H   9554024A2020H

9554024A2020H
Not available

26
67409

2183058   2183058

2183058
Not available

27
741620

2165702   2165702

2165702
Not available

28
556203

2187773   2187773

2187773
Not available

29
349131

266435   266435

266435
Not available

30
579269

2185590   2185590

2185590
Not available

31
299158

2165707   2165707

2165707
Not available

32
695479

2185802   2185802

2185802
Not available

33
442941

126114   126114

126114
Not available

34
345583

2165682   2165682

2165682
Not available

35
442941

126114   126114

126114
Not available

36
466167

141198   141198

141198
Not available

37
695227

2165720   2165720

2165720
Not available

38
..CORD, BAG LID

2155722   2155722

2155722
Not available

39
159687

2167432   2167432

2167432
Not available

40
625459

2187778   2187778

2187778
Not available

41
SET PLATE LOCK SIDE

93124-24A00-000   9312424A00000

9312424A00000
Not available

42
DISCONTINUE
LOCK SET, SIDE BAG

93300-24820-000   9330024820000

9330024820000
Not available

43
SCREW

02142-05084-000  

02142-05083-000
0214205084000

Unit Price


44
EMBLEM, SIDE BAG, R

68261-24A10-000   6826124A10000

6826124A10000
Not available

45
BOLT

Unit Price


46
WASHER

09160-06030-000  

09160-06136-000
0916006030000

Unit Price


47
SPACER

09180-06055-000   0918006055000

0918006055000
Not available

48

Unit Price


49
SEAT, SIDE BAG BOTTOM, RH

95416-24A00-000   9541624A00000

9541624A00000
Not available

50
SEAT, SIDE BAG BOTTOM, LH

95417-24A00-000   9541724A00000

9541724A00000
Not available

51
TOOL ASSY

09800-00293-000   0980000293000

0980000293000
Not available

52
DISCONTINUE<br />GAUGE ASSY, AIR PRESSURE
DISCONTINUE
GAUGE ASSY, AIR PRESSURE

96200-41330-000   9620041330000

9620041330000
Not available

53
BAG, SIDE LUGGAGE

95450-24A01-000   9545024A01000

9545024A01000
Not available

54
TOP BAND BOW -SAMURA
OIL TANK BAND

09462-00040-000   0946200040000

0946200040000

Unit Price


55
BOLT(6X30)
BOLT L:30

09104-06004-000   0910406004000

0910406004000

Unit Price


56
WASHER(6.5X18X2)

09160-06013-000  

09160-06121-000
0916006013000

Unit Price


57
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price


58
CAP(OD:12)<br />PLUG
CAP(OD:12)
PLUG

09250-08013-000   0925008013000

0925008013000

Unit Price


59
LABEL, TRUNK WARNING

68613-24A20-000   6861324A20000

6861324A20000
Not available

60
SPANNER

09813-00038-000   0981300038000

0981300038000
Not available

61
PACKING SEAT, SIDEBAG

93314-24A01-000   9331424A01000

9331424A01000
Not available

2156931
.LID, SIDE BAG, L(MAROON)

95540-24A20-38G   9554024A2038G

9554024A2038G
Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE BAG MODEL J of your Suzuki of CAVALCADE. Let us know if you have any questions.

Genuine parts for Suzuki 1400 CAVALCADE 1987

Suzuki 1400 CAVALCADE 1987

Select your Suzuki 1987 model

1400 CAVALCADE 1987 GV1400GD H/GV1400GC H

Suzuki CAVALCADE

Displacement: 1400 cc
Year: 1987
Model code GV1400GD H / GV1400GC H
