FAIRING (MODEL K5)

FRONT FAIRING (MODEL K2) FOR SUZUKI BURGMAN 150 2002

FRONT FAIRING (MODEL K3) REFER TO FIG. 36B (E-12) FOR MODEL K4

Item numbers

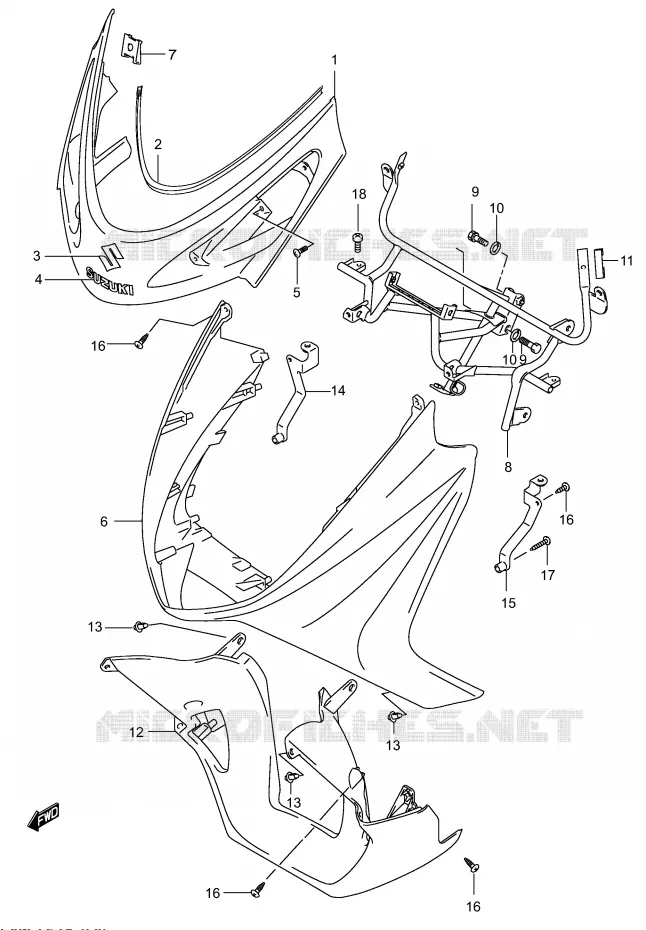

FRONT FAIRING (MODEL K2) Suzuki SCOOTER 150 BURGMAN 2002 UH150K2(P19)

1

COVER, FRONT LEG (BLACK)

48131-49F00-Y7L 4813149F00Y7L

Not available

2

MOLDING, FRONT COVER

48132-49F00-000 4813249F00000

Not available

3

EMBLEM, "S"

68641-49F00-M7P 6864149F00M7P

Not available

4

EMBLEM, "SUZUKI"

68641-49F10-M7P 6864149F10M7P

Not available

5

SCREW

02142-05165-000 0214205165000

Not available

6

SHIELD, LEG FRONT (YELLOW)

48111-49F00-Y9H 4811149F00Y9H

Not available

6

SHIELD, LEG FRONT (BLUE)

48111-49F00-YC2 4811149F00YC2

Not available

6

SHIELD, LEG FRONT (SILVER)

48111-49F00-YD8 4811149F00YD8

Not available

7

NUT

D91BL-4815A-000 D91BL4815A000

Not available

8

BRACE, LEG SHIELD

48150-07E00-EE3 4815007E00EE3

Not available

9

BOLT

D1507-08165-000 D150708165000

Not available

10

WASHER, SPRING

D8321-01085-000 D832101085000

Not available

11

TAPE, WINDSCREEN

48167-C14-F00J000 48167C14F00J000

Not available

12

SHIELD, LEG LOWER (GRAY)

48137-49F00-26B 4813749F0026B

Not available

13

CLIP (BLACK)

09409-08308-5ES 09409083085ES

$3,97

Unit Price

14

BRACKET, FRONT LEG RH

48170-49F00-EE3 4817049F00EE3

Not available

15

BRACKET, FRONT LEG LH

48180-49F00-EE3 4818049F00EE3

Not available

16

SCREW

03541-05165-000

03541-0516B-000

$3,97

Unit Price

17

SCREW, LOWER

D3111-05325-000 D311105325000

Not available

18

BOLT

D2116-06125-000 D211606125000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FAIRING (MODEL K2) of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
