CYLINDER HEAD

CYLINDER FOR SUZUKI BURGMAN 150 2002

CRANKCASE

Item numbers

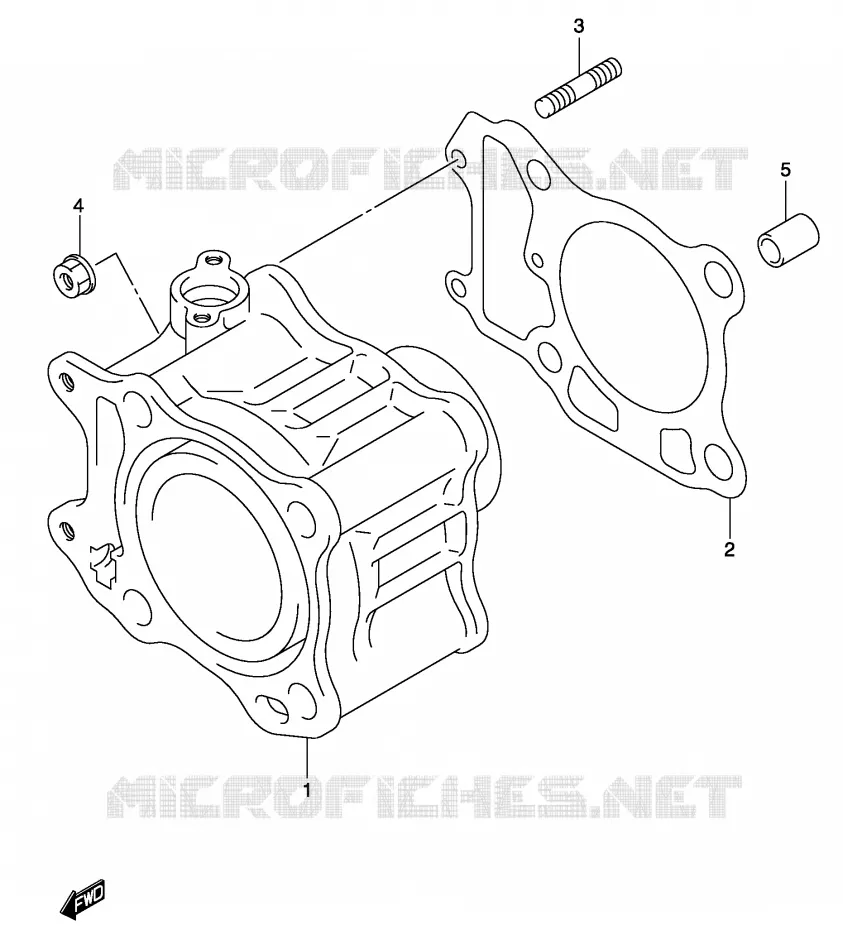

CYLINDER Suzuki SCOOTER 150 BURGMAN 2002 UH150K2(P19)

1

CYLINDER

11210-21FA0-0F0 1121021FA00F0

Not available

2

GASKET, CYLINDER

11241-21F00-000 1124121F00000

Not available

3

BOLT, STUD

01421-06253-000

01421-0625A-000

$4,97

Unit Price

4

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

5

PIN

04211-13189-000 0421113189000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
