REAR WHEEL

REAR CALIPER FOR SUZUKI BURGMAN 150 2002

REAR BRAKE MASTER CYLINDER (MODEL K2 / K3) REFER TO FIG. 59A (H-11) FOR MODEL K4/K5

Item numbers

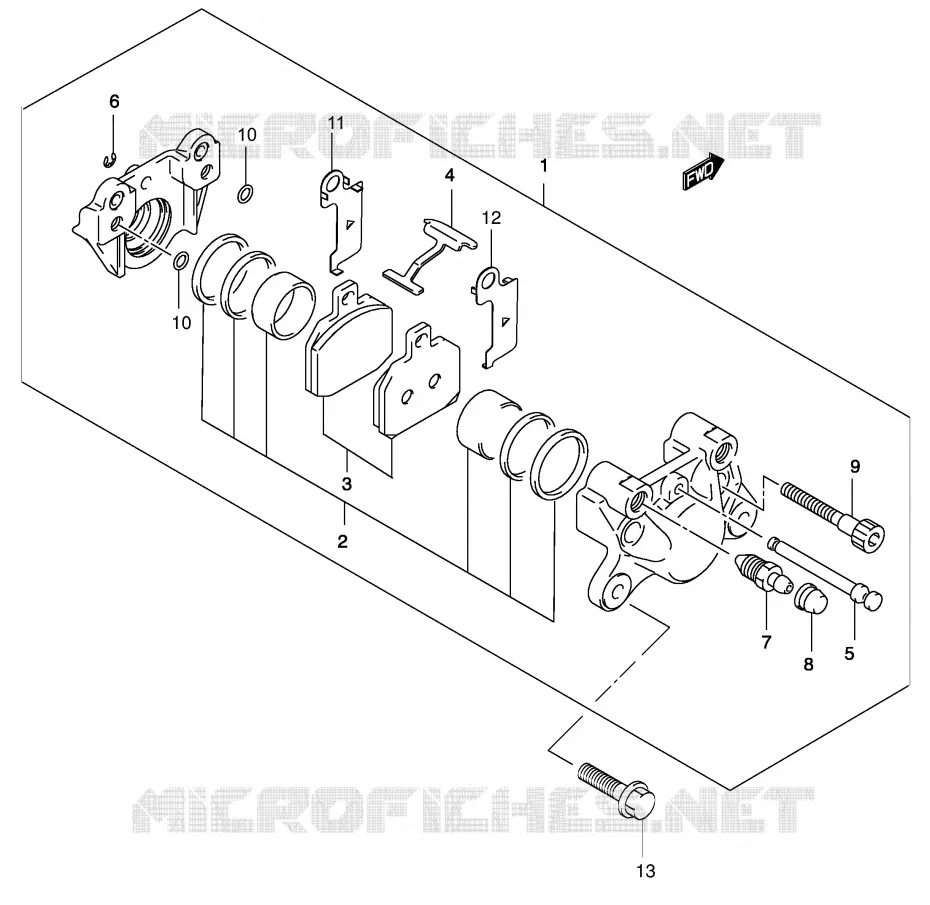

REAR CALIPER Suzuki SCOOTER 150 BURGMAN 2002 UH150K2(P19)

1

CALIPER ASSY, REAR

69100-49F01-000 6910049F01000

Not available

2

PISTON SET

69104-49F00-000 6910449F00000

Not available

3

PAD SET, BRAKE

69130-07E00-000 6913007E00000

Not available

4

SPRING, PAD

69143-49F01-000 6914349F01000

Not available

5

PIN, PAD

69141-49F01-000 6914149F01000

Not available

6

E RING

69142-49F01-000 6914249F01000

Not available

7

BLEEDER

69121-49F00-000 6912149F00000

Not available

8

CAP, BLEEDER

59122-09EF0-000 5912209EF0000

Not available

9

BOLT

69145-49F00-000 6914549F00000

Not available

10

SEAL

69103-49F00-000 6910349F00000

Not available

11

SHIM, PAD INNER

69181-49F00-000 6918149F00000

Not available

12

SHIM, PAD OUTER

69171-49F00-000 6917149F00000

Not available

13

BOLT

D1557-08305-000 D155708305000

Not available
