Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME

FOOTREST FOR SUZUKI INTRUDER 1500 2002

FUEL TANK

Item numbers

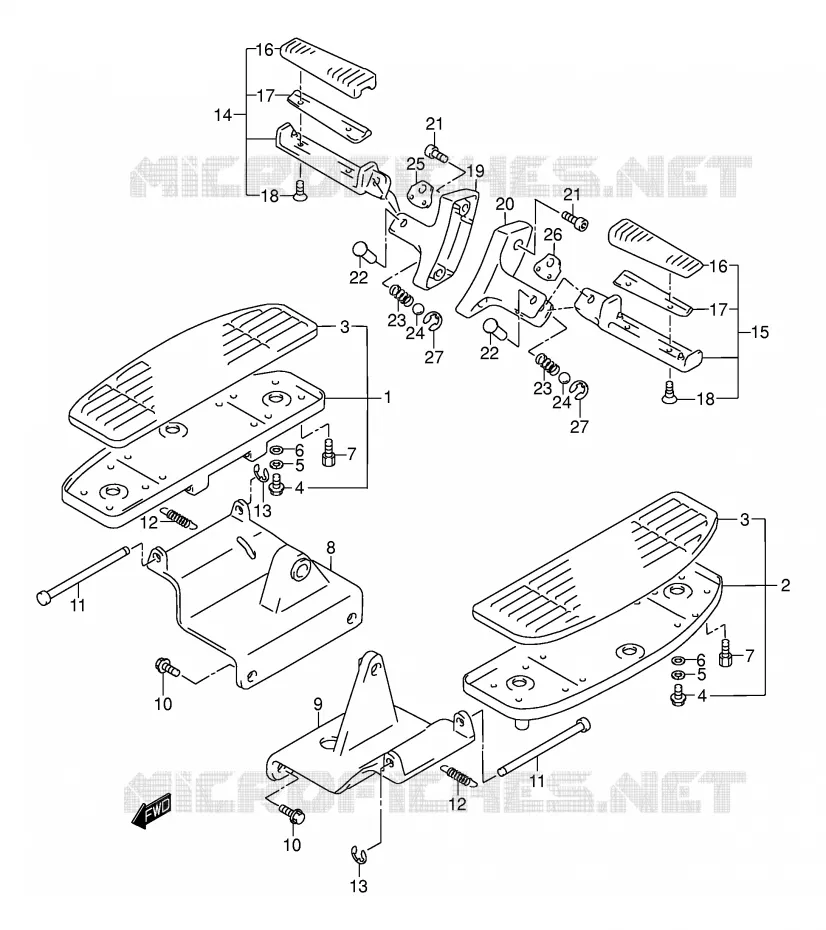

FOOTREST Suzuki MOTO 1500 INTRUDER 2002 VL1500K2(E2)
1
2
3
3
4
4
5
5
6
6
7
7
8
9
10
10
11
11
12
12
13
14
14
15
15
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
26
27
27
1
DISCONTINUE
FOOTREST ASSY, FRONT RH

43501-10F00-000   4350110F00000

4350110F00000
Not available
2
DISCONTINUE
FOOTREST ASSY, FRONT LH

43502-10F00-000   4350210F00000

4350210F00000
Not available
3
RUBBER, FR FOOTREST
RUBBER

43550-10F00-000   4355010F00000

4355010F00000

Unit Price

4
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

5
WASHER(6.5X22X1.6)

09160-06503-000  

09160-06054-000
 0916006503000

Unit Price

6
DISCONTINUE
CUSHION

09320-10016-000   0932010016000

0932010016000
7
BOLT, BANK SENSOR
BOLT, BANK SENSOR

43576-07D01-000   4357607D01000

4357607D01000

Unit Price

8
BRACKET, FR FOOTREST, R
BRACKET, FRONT FOOTREST RH

43510-10F00-000   4351010F00000

4351010F00000

Unit Price

9
BRACKET, FR FOOTREST, L
BRACKET, FRONT FOOTREST LH

43520-10F00-000   4352010F00000

4352010F00000

Unit Price

10
BOLT

01580-10353-000  

01580-1035A-000
 0158010353000

Unit Price

11
PIN, FR FOOTREST
PIN

43539-10F00-000   4353910F00000

4353910F00000

Unit Price

12
SPRING

09443-11033-000   0944311033000

0944311033000

Unit Price

13
E RING

08332-11063-000  

08332-1106B-000
 0833211063000

Unit Price

14
FOOTREST ASSY, PILLION, R

43600-38E00-000  

43600-38E01-000
 4360038E00000

Unit Price

14
43600-48E10

43600-48E10-000  

4360048E10000
Not available
15
FOOTREST ASSY, PILLION, L

43700-38E00-000  

43700-38E01-000
 4370038E00000

Unit Price

15
FOOTREST ASSY, PILLION, L
FOOTREST ASSY, PILLION LH

43700-48E10-000  

4370048E10000
Not available
16
RUBBER, PILLION FOOTREST

43612-38A00-000  

43612-38A10-000
 4361238A00000

Unit Price

17
PLATE, RUBBER STOPPER
PLATE, RUBBER STOP

43632-38A00-000   4363238A00000

4363238A00000

Unit Price

18
SCREW

09127-05017-000   0912705017000

0912705017000

Unit Price

19
BRACKET, PILLION FOOTREST, R

43811-10F00-000  

43811-10F10-000
 4381110F00000

Unit Price

20
BRACKET, PILLION FOOTREST, L
BRACKET, PILLION FOOTREST LH

43821-10F10-000   4382110F10000

4382110F10000

Unit Price

20
43821-10F10
BRACKET, PILLION FOOTREST LH

43821-10F00-000  

4382110F00000
Not available
21
BOLT, EXH PIPE

09106-08104-000  

09106-08165-000
 0910608104000

Unit Price

22
PIN
PIN

09208-08010-000   0920808010000

0920808010000

Unit Price

22
PIN

09208-08014-000   0920808014000

0920808014000

Unit Price

23
SPRING
SPRING

09440-05005-000   0944005005000

0944005005000

Unit Price

24
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

25
PLATE, PILLION FOOTREST, R
PLATE, RH

43816-10F00-000   4381610F00000

4381610F00000

Unit Price

26
PLATE, PILLION FOOTREST, L
PLATE, LH

43826-10F00-000   4382610F00000

4382610F00000

Unit Price

27
E RING

08332-11063-000  

08332-1106B-000
 0833211063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
