Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WIRING HARNESS (MODEL Y / K1 / K2) REFER TO FIG.32B(G- 9) FOR MODEL K3

WIRING HARNESS (MODEL K3) FOR SUZUKI INTRUDER 1500 2002

WIRING HARNESS (MODEL K4)

Item numbers

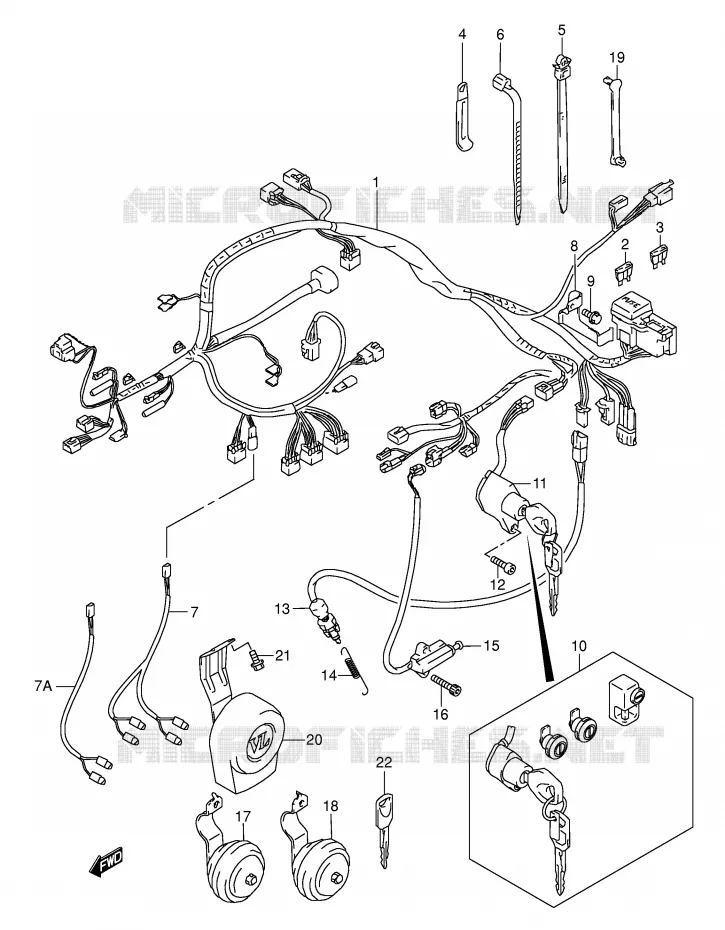

WIRING HARNESS (MODEL K3) Suzuki MOTO 1500 INTRUDER 2002 VL1500K2(E2)
1
1
2
3
3
4
5
6
6
6
7A
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
1
DISCONTINUE
HARNESS, WIRING

36610-10F90-000   3661010F90000

3661010F90000
Not available
1
HARNESS, WIRING

36610-10FA0-000   3661010FA0000

3661010FA0000
Not available
2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
3
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

4
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

5
CLAMP<br />CLAMP (L:90)
CLAMP
CLAMP (L:90)

09407-11402-000   0940711402000

0940711402000

Unit Price

6
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

6
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

6
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

7
WIRE, HORN LEAD

36854-10F00-000   3685410F00000

3685410F00000
Not available
7A
DISCONTINUE
WIRE, HORN LEAD

36852-21E10-000   3685221E10000

3685221E10000
Not available
8
DISCONTINUE
BRACKET, FUSE

36744-10F00-000   3674410F00000

3674410F00000
Not available
9
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

10
LOCK SET

37000-26841-000   3700026841000

3700026841000
Not available
10
DISCONTINUE

37100-26880-000  

3710026880000
Not available
11
SWITCH ASSY, IGNITION

37110-26F11-000   3711026F11000

3711026F11000
Not available
11
37110-26F03

37110-26F20-000  

3711026F20000
Not available
12
BOLT

07130-06163-000  

07130-0616B-000
 0713006163000

Unit Price

13
SWITCH ASSY, STOP LAMP

37740-10F00-000   3774010F00000

3774010F00000

Unit Price

14
SPRING, STOP LAMP SWITCH
SPRING, STOP LAMP

43139-10F00-000   4313910F00000

4313910F00000

Unit Price

15
SWITCH ASSY, SIDE STAND

37840-10F00-000  

37840-10F01-000
 3784010F00000

Unit Price

16
SCREW

02142-06203-000  

02142-0620B-000
 0214206203000

Unit Price

17
HORN ASSY, RH

38501-10F00-000   3850110F00000

3850110F00000
Not available
18
HORN ASSY, LH

38502-10F00-000   3850210F00000

3850210F00000
Not available
19
CLAMP<br />CLAMP (L:33)
CLAMP
CLAMP (L:33)

09407-03401-000   0940703401000

0940703401000

Unit Price

20
DISCONTINUE
HORN ASSY

38500-10F00-000   3850010F00000

3850010F00000
Not available
21
01550-0616A
BOLT, HORN

01550-06163-000  

0155006163000
Not available
22
KEY, BLANK

37146-48E00-000  

37146-48E10-000
 3714648E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
