Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST

FUEL TANK FOR SUZUKI INTRUDER 1500 2002

FUEL CATCH TANK

Item numbers

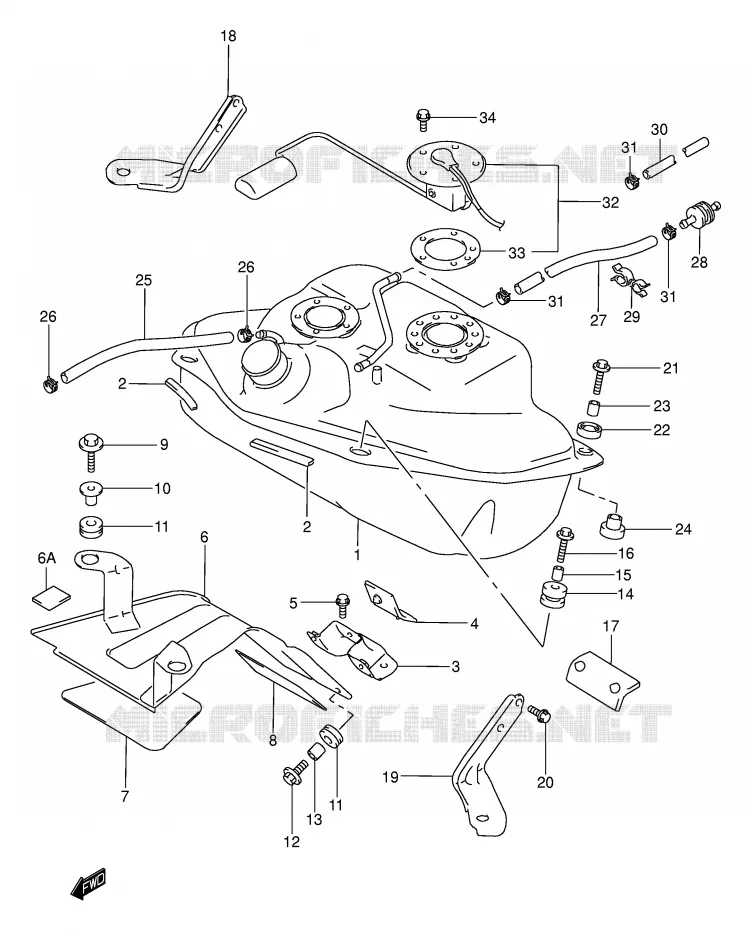

FUEL TANK Suzuki MOTO 1500 INTRUDER 2002 VL1500K2(E2)
1
1
2
2
3
4
5
5
6
6
6
6A
7
8
9
9
10
11
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
31
31
32
32
33
34
1
TANK, FUEL

44110-10F10-000  

44110-10F11-000
 4411010F10000

Unit Price

1
DISCONTINUE
TANK, FUEL

44110-10F00-000  

4411010F00000
Not available
2
MOLDING
MOLDING

68241-04X50-00B   6824104X5000B

6824104X5000B

Unit Price

3
DISCONTINUE
BRACKET, FRONT

44130-10F00-000   4413010F00000

4413010F00000
Not available
4
DISCONTINUE
CUSHION, BRACKET

44511-10F00-000  

4451110F00000
Not available
5
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

6A
PAD(20X25X2)
CUSHION, RH

61544-94500-000   6154494500000

6154494500000

Unit Price

6
COVER, FUEL TANK FRONT

44270-10F00-000   4427010F00000

4427010F00000
Not available
6
DISCONTINUE

44270-10F01-000  

4427010F01000
Not available
7
DISCONTINUE
SHIELD, COVER UPPER

44267-10F00-000   4426710F00000

4426710F00000
Not available
8
DISCONTINUE
SHIELD, COVER LOWER

44268-10F00-000   4426810F00000

4426810F00000
Not available
9
BOLT
BOLT, COVER UPPER

09116-06171-000   0911606171000

0911606171000

Unit Price

9
BOLT<br />BOLT, COVER UPPER
BOLT
BOLT, COVER UPPER

09116-06172-000   0911606172000

0911606172000

Unit Price

10
WASHER

09169-06070-000   0916906070000

0916906070000

Unit Price

11
09320-08527<br />CUSHION
09320-08527
CUSHION

09320-08001-000   0932008001000

0932008001000
Not available
12
BOLT,6X20,W/PL WASHE<br />BOLT, COVER LOWER
BOLT, 6X20, W/PL WASHE
BOLT, COVER LOWER

09116-06115-000   0911606115000

0911606115000

Unit Price

12
BOLT, COVER LOWER

09116-06159-000   0911606159000

0911606159000
Not available
13
SPACER,6.1X8X9.5<br />SPACER
SPACER, 6.1X8X9.5
SPACER

09180-06248-000   0918006248000

0918006248000

Unit Price

14
CUSHION, FUEL TANK SIDE

44512-04F00-000  

44512-04F01-000
 4451204F00000

Unit Price

15
SPACER,6.5X9X12.5<br />SPACER
SPACER, 6.5X9X12.5
SPACER

09180-06267-000   0918006267000

0918006267000

Unit Price

16
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

09116-06147-000   0911606147000

0911606147000

Unit Price

16
BOLT
BOLT

09116-06172-000   0911606172000

0911606172000

Unit Price

17
DISCONTINUE
CUSHION, REAR CENTER

44541-10F00-000   4454110F00000

4454110F00000
Not available
18
DISCONTINUE
BRACKET, REAR RH

44150-10F00-000   4415010F00000

4415010F00000
Not available
19
DISCONTINUE
BRACKET, REAR LH

44160-10F00-000   4416010F00000

4416010F00000
Not available
20
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

21
BOLT<br />BOLT, FUEL TANK REAR
BOLT
BOLT, FUEL TANK REAR

09116-06172-000   0911606172000

0911606172000

Unit Price

22
CUSHION
CUSHION, UPPER

09320-14022-000   0932014022000

0932014022000

Unit Price

23
SPACER,6.5X9X18<br />SPACER
SPACER, 6.5X9X18
SPACER

09180-06271-000   0918006271000

0918006271000

Unit Price

24
CUSHION(9X24X18)
CUSHION(9X24X18)

09320-10020-000  

09320-10071-000
 0932010020000

Unit Price

25
HOSE<br />HOSE, AIR VENT (L:600->190)
HOSE
HOSE, AIR VENT (L:600->190)

09355-11165-600   0935511165600

0935511165600

Unit Price

26
CLIP
CLIP

09401-15404-000   0940115404000

0940115404000

Unit Price

27
HOSE(5.4X11.4X600)
HOSE, TANK & VALVE (L:600->150)

09355-54116-600   0935554116600

0935554116600

Unit Price

28
VALVE, 2WAY CHECK
CHECK VALVE, 2 WAY

85451-75100-000   8545175100000

8545175100000

Unit Price

29
CLIP

09408-00140-000   0940800140000

0940800140000
Not available
30
HOSE(5.4X11.4X600)
HOSE, VALVE & CATCH (L:600->440)

09355-54116-600   0935554116600

0935554116600

Unit Price

31
(CA)CLIP<br />CLIP
(CA)CLIP
CLIP

09401-10409-000   0940110409000

0940110409000

Unit Price

32
GAUGE ASSY, FUEL LEVEL SENDER

34810-10F10-000  

34810-10F11-000
 3481010F10000

Unit Price

32
DISCONTINUE

34810-10F00-000  

3481010F00000
Not available
33
GASKET,FUEL LEVEL GAUGE<br />GASKET
GASKET, FUEL LEVEL GAUGE
GASKET

34825-45100-000   3482545100000

3482545100000

Unit Price

34
BOLT

09117-05003-000  

01570-05103-000
 0911705003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
