REAR FENDER (DR400ST)

REAR FENDER (DR400SX) FOR SUZUKI DR 400 1980

IGNITION FIG. 18 (E-3) : E16

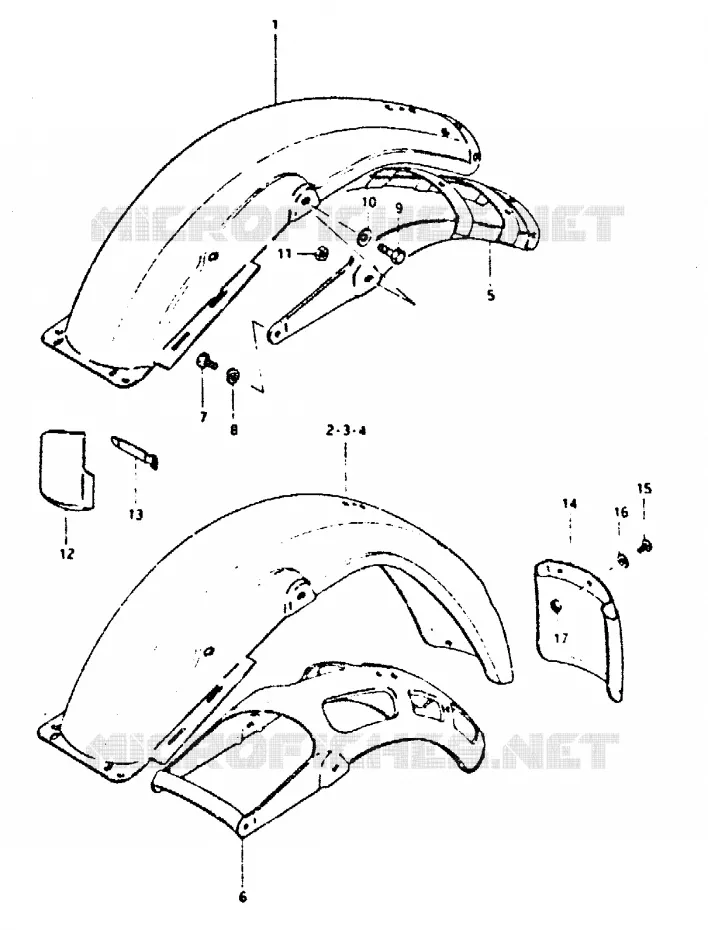

REAR FENDER (DR400SX) Suzuki MOTO 400 DR 1980 DR400ST(T/X)

1

FENDER, REAR

63111-37211-07P 631113721107P

Not available

1

FENDER, REAR

63111-37211-08V 631113721108V

Not available

1

FENDER, REAR

63111-37211-10V 631113721110V

Not available

1

FENDER, REAR

63111-37211-163 6311137211163

Not available

5

DISCONTINUED

63120-37200-000 6312037200000

Not available

7

.BOLT

01107-08208-000 0110708208000

Not available

8

LOCK WASHER

08321-21068-000 0832121068000

Not available

9

BOLT, LOWER

01107-08308-000 0110708308000

Not available

10

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

11

NUT

08310-12088-000

08310-00087-000

$3,97

Unit Price

12

MUD FLAP

63411-37200-000 6341137200000

Not available

13

CLAMP, CARBURETOR AIR VENT

09407-11301-000 0940711301000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER (DR400SX) of your Suzuki of DR. Let us know if you have any questions.
