CARBURETOR FOR SUZUKI DR 400 1980

AIR FILTER

DISCONTINUE
GASKET, FLOAT CHAMBER

13251-32410-000 1325132410000

Not available

CLIP
E RING

13394-10010-000 1339410010000

$6,97

Unit Price

NEEDLE, JET (6G1-3)

13283-37200-000 1328337200000

Not available

PIPE, BLEED

13385-37200-000 1338537200000

Not available

DISCONTINUED

09491-24009-000 0949124009000

Not available

O RING

13246-43010-000

13246-43011-000

$6,97

Unit Price

DISCONTINUE
SCREW

13247-45010-000 1324745010000

Not available

JET, NEEDLE (P-2)

09494-00298-000 0949400298000

Not available

SPRING

13388-32400-000 1338832400000

Not available

WASHER, JET NEEDLE
WASHER

13382-47010-000 1338247010000

$5,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

FLOAT

13252-32410-000 1325232410000

Not available

CARBURETOR ASSY

13200-37210-000 1320037210000

Not available

HOSE, AIR VENT

13683-32410-000 1368332410000

Not available

DISCONTINUE
VALVE, NEEDLE

13370-32410-000 1337032410000

Not available

PIN, FLOAT

13254-92311-000 1325492311000

$3,97

Unit Price

PLATE

13373-39110-000 1337339110000

$10,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

.HOSE

13687-18656-000 1368718656000

Not available

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

SPRING

13543-32410-000 1354332410000

Not available

CONNECTOR

13545-32212-000 1354532212000

Not available

DISCONTINUED

13546-30650-000 1354630650000

Not available

DISCONTINUED

13547-43010-000 1354743010000

Not available

SCREW, GUIDE

13548-32212-000 1354832212000

Not available

13544-43010-000 1354443010000

Not available

DISCONTINUED

13266-37200-000 1326637200000

Not available

BRACKET

13398-30650-000 1339830650000

Not available

DISCONTINUED

13581-29320-000 1358129320000

Not available

VALVE, PISTON

13551-37200-000 1355137200000

Not available

DISCONTINUED

02111-03108-000 0211103108000

Not available

.LOCK WASHER

08321-21038-000 0832121038000

Not available

PLATE

13576-30650-000 1357630650000

Not available

DISCONTINUED

13613-30650-000 1361330650000

Not available

.JET, PILOT (15)

09492-15003-000 0949215003000

Not available

ADJUSTER, THROTTLE

13267-32410-000 1326732410000

Not available

DISCONTINUE

13267-37230-000

Not available

SPRING, THROTTLE SCREW
SPRING

13268-31210-000 1326831210000

$6,97

Unit Price

.SCREW

02112-04168-000 0211204168000

Not available

WASHER 4MM

08321-21048-000 0832121048000

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

SPRING

13573-32410-000 1357332410000

Not available

DISCONTINUE
SCREW, PILOT AIR

13269-15011-000 1326915011000

Not available

O RING

13295-33010-000 1329533010000

$6,97

Unit Price

SPRING

13268-01010-000 1326801010000

$7,97

Unit Price

DISCONTINUED

13574-30650-000 1357430650000

Not available

DISCONTINUE
SEAL

13556-32410-000 1355632410000

Not available

DISCONTINUED

13574-32410-000 1357432410000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$3,97

Unit Price

DISCONTINUED

09491-23004-000 0949123004000

Not available

.JET, MAIN (120)

09491-24005-000 0949124005000

Not available

DISCONTINUED

09491-25001-000 0949125001000

Not available

DISCONTINUED

09491-25003-000 0949125003000

Not available

DISCONTINUED

09491-26004-000 0949126004000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

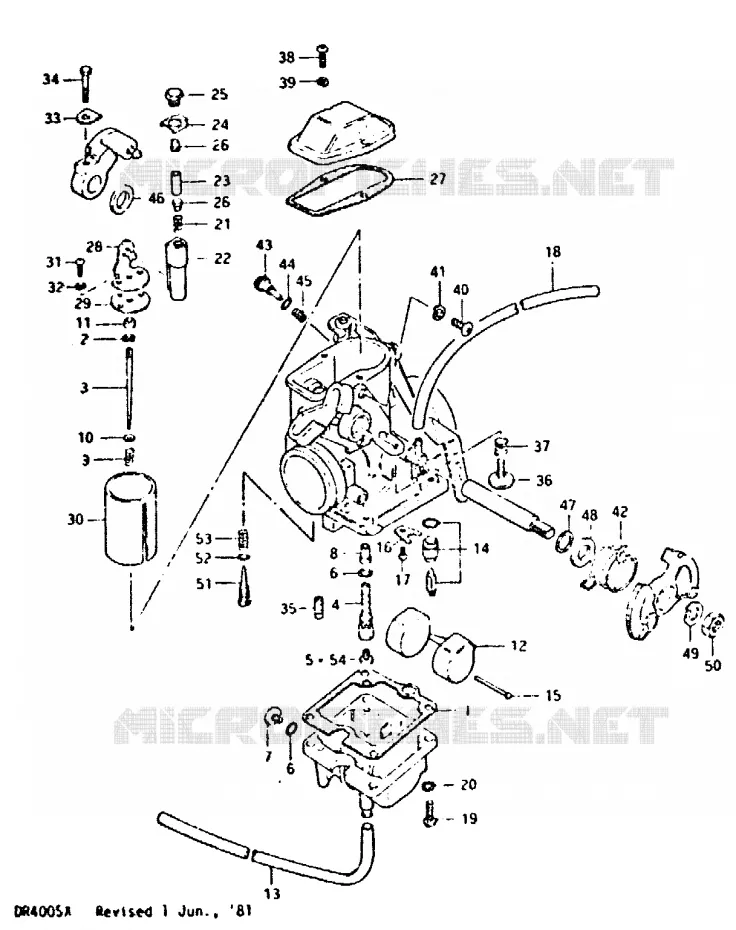

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
