CLUTCH

TRANSMISSION FOR SUZUKI DR 400 1980

GEAR SHIFTING ASSY

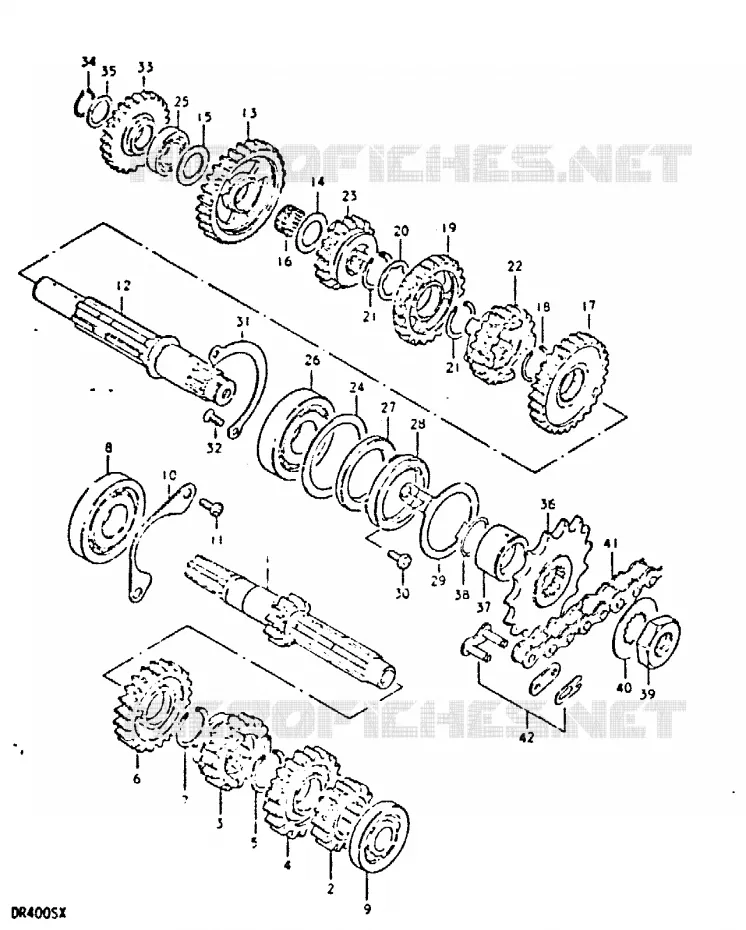

TRANSMISSION Suzuki MOTO 400 DR 1980 DR400ST(T/X)
1
COUNTERSHAFT (NT:12)

24120-32410-000   2412032410000

2412032410000
Not available
2
GEAR, 2ND DRIVE (NT:16)

24221-32412-000   2422132412000

2422132412000

Unit Price

2
DISCONTINUED

24221-32410-000   2422132410000

2422132410000
Not available
3
GEAR, 3RD DRIVE (NT:17)

24231-32401-000   2423132401000

2423132401000
Not available
4
GEAR, 4TH DRIVE (NT:19)

24241-37100-000   2424137100000

2424137100000
Not available
5
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

6
DISCONTINUED

24251-32401-000   2425132401000

2425132401000
Not available
7
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

8
BEARING 22 X 56 X 16

09262-22014-000  

09262-22028-000
 0926222014000

Unit Price

9
BALL BEARING

09262-17018-000  

09262-17027-000
 0926217018000

Unit Price

10
HOLDER, BEARING

24741-32400-000   2474132400000

2474132400000
Not available
11
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

12
DRIVESHAFT

24130-32403-000   2413032403000

2413032403000
Not available
13
DISCONTINUED

24311-32410-000   2431132410000

2431132410000
Not available
13
GEAR, 1ST DRIVEN (NT:28)

24311-32411-000   2431132411000

2431132411000
Not available
14
WASHER

08211-17281-000  

09181-17195-000
 0821117281000

Unit Price

15
WASHER

08211-17363-000   0821117363000

0821117363000
Not available
16
BEARING(17X21X9.8)
BEARING

09263-17004-000   0926317004000

0926317004000

Unit Price

17
GEAR, 2ND DRIVEN (NT:27)

24320-32411-000   2432032411000

2432032411000

Unit Price

17
DISCONTINUED

24320-32410-000   2432032410000

2432032410000
Not available
18
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

19
GEAR, 3RD DRIVEN (NT:22)

24330-32400-000   2433032400000

2433032400000
Not available
20
DRIVEN GEAR WASHER<br />WASHER
DRIVEN GEAR WASHER
WASHER

09167-22011-000   0916722011000

0916722011000

Unit Price

21
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

22
GEAR, 4TH DRIVEN (NT:20)

24341-37100-000   2434137100000

2434137100000
Not available
23
GEAR, 5TH DRIVEN (NT:18)

24351-32400-000   2435132400000

2435132400000
Not available
24
WASHER

09160-40003-000   0916040003000

0916040003000
Not available
25
BEARING(17X36X12)
BEARING, RH

09264-17001-000   0926417001000

0926417001000

Unit Price

26
BEARING(22X56X16)
BEARING, LH

09262-22013-000   0926222013000

0926222013000

Unit Price

27
DISCONTINUE
OIL SEAL

09282-30002-000   0928230002000

0928230002000
Not available
28
DISCONTINUE
OIL SEAL

09283-30025-000   0928330025000

0928330025000
Not available
29
HOLDER, OIL SEAL

24751-32400-000   2475132400000

2475132400000
Not available
30
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

31
DISCONTINUE
HOLDER, BEARING

24752-32400-000  

2475232400000
Not available
32
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

33
DISCONTINUE
GEAR, KICK IDLE (NT:25)

26260-32404-000   2626032404000

2626032404000
Not available
34
THIRD PINION CIRCLIP<br />CIRCLIP
THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000   0938017001000

0938017001000

Unit Price

35
WASHER

08211-17241-000   0821117241000

0821117241000

Unit Price

36
SPROCKET, ENGINE 16T
SPROCKET (NT:16)

27511-37200-000   2751137200000

2751137200000

Unit Price

37
SPACER

27531-32400-000   2753132400000

2753132400000
Not available
38
O RING(D:2.5,ID:21)<br />O RING
O RING(D:2.5, ID:21)
O RING

09280-21008-000   0928021008000

0928021008000

Unit Price

39
ENGINE SPROCKET NUT
NUT

09140-18006-000   0914018006000

0914018006000

Unit Price

40
ENG SPROCKET WASHER
WASHER

09167-22012-000   0916722012000

0916722012000

Unit Price

41
CHAIN, DRIVE (108L)

27600-40940-000   2760040940000

2760040940000
Not available
42
DISCONTINUE

27620-40940-000  

2762040940000
Not available
42
JOINT, CHAIN (DID)

27620-41531-000   2762041531000

2762041531000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of DR. Let us know if you have any questions.
