HEADLIGHT

TAIL LIGHT ASSY FOR SUZUKI KINGQUAD 400 2017

WIRING HARNESS

Item numbers

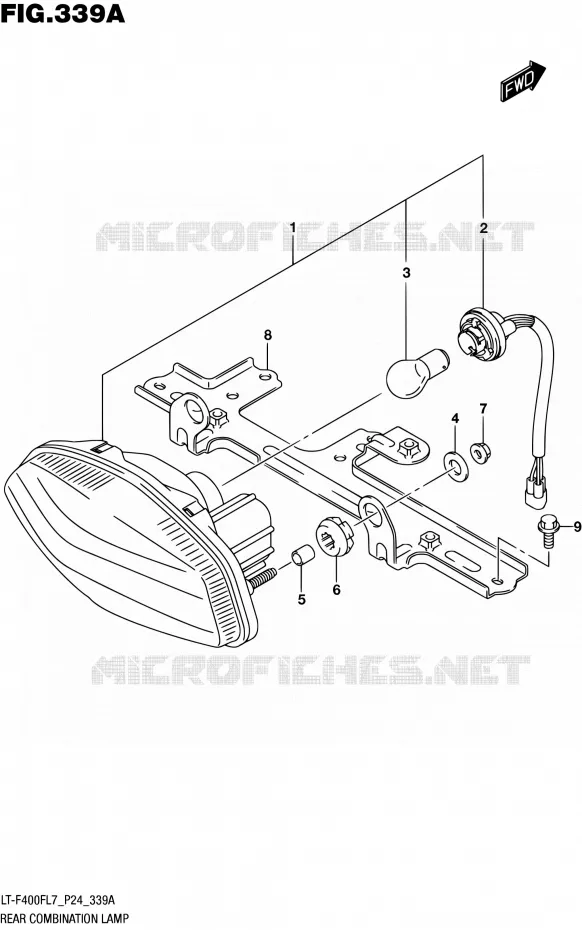

TAIL LIGHT ASSY Suzuki QUAD 400 KINGQUAD 2017 LT-F400F L7 (P24)
1
2
3
4
5
6
7
8
9
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-31G00-000   3571031G00000

3571031G00000

Unit Price

2
SOCKET, BULB
.SOCKET & BULB

35718-03G30-000   3571803G30000

3571803G30000

Unit Price

3
BULB(12V1.4W G30)

09471-12128-000  

09471-12083-000
 0947112128000

Unit Price

4
WASHER 6.5X10X1.2<br />WASHER (6.5X20X1.2)
WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000   0916006077000

0916006077000

Unit Price

5
SPACER (6.5X9X10.5)

09180-06264-000   0918006264000

0918006264000

Unit Price

6
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

7
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

8
BRACKET, RR COMBINATION LAMP
BRACKET, REAR COMBINATION LAMP

35720-27H00-000   3572027H00000

3572027H00000

Unit Price

9
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2017

Select your Suzuki 2017 model

400 KINGQUAD 2017 LT-F400F L7 (P24)

KINGQUAD 400 FSi SEMI-AUTOMATIC

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2017
Model code LT-F400F L7 (P24)
