REAR BRAKE

STEERING LINKAGE - HUB FOR SUZUKI KINGQUAD 400 2017

STEERING COLUMN

Item numbers

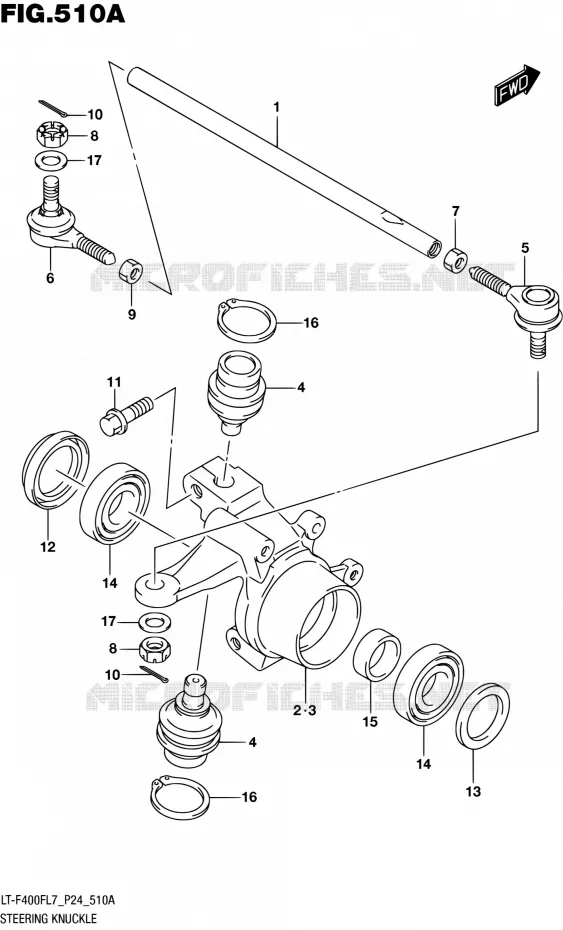

STEERING LINKAGE - HUB Suzuki QUAD 400 KINGQUAD 2017 LT-F400F L7 (P24)
1
2
3
4
4
5
6
7
8
8
9
10
10
11
12
13
14
14
15
16
16
17
17
1
TIE ROD, STEERING

51281-27H00-000   5128127H00000

5128127H00000

Unit Price

2
51231-27H10
KNUCKLE, STEERING RH

51231-27H00-000   5123127H00000

5123127H00000
Not available
3
51241-27H10
KNUCKLE, STEERING LH

51241-27H00-000   5124127H00000

5124127H00000
Not available
4
END, KNUCKLE STEERING

51210-38F00-000   5121038F00000

5121038F00000

Unit Price

5
END, ROD, R
ROD, END RH

51260-21G00-000   5126021G00000

5126021G00000

Unit Price

6
END, ROD, L
ROD, END LH

51270-21G00-000   5127021G00000

5127021G00000

Unit Price

7
NUT, TIE ROD, R
NUT, TIE-ROD RH

51283-21G00-000   5128321G00000

5128321G00000

Unit Price

8
NUT
NUT

08314-4010B-000   083144010B000

083144010B000

Unit Price

9
NUT,TIE ROD LH<br />NUT
NUT, TIE ROD LH
NUT

09140-10027-000   0914010027000

0914010027000

Unit Price

10
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

11
BOLT, KNUCKLE (10X30)

51233-09F00-000   5123309F00000

5123309F00000

Unit Price

12
SEAL
OIL SEAL (38X55X8)

09283-38012-000   0928338012000

0928338012000

Unit Price

13
SEAL, RR AXLE HSG
OIL SEAL (38X55X9)

09283-38022-000   0928338022000

0928338022000

Unit Price

14
BEARING

08133-60067-000   0813360067000

0813360067000

Unit Price

15
SPACER, HUB BEARING

54731-03G00-000   5473103G00000

5473103G00000

Unit Price

16
CIRCLIP

08331-31309-000   0833131309000

0833131309000

Unit Price

17
WASHER (10.5X19X2)
WASHER (10.5X19X2)

09160-10082-000   0916010082000

0916010082000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING LINKAGE - HUB of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2017

Select your Suzuki 2017 model

400 KINGQUAD 2017 LT-F400F L7 (P24)

KINGQUAD 400 FSi SEMI-AUTOMATIC

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2017
Model code LT-F400F L7 (P24)
