DRIVESHAFT

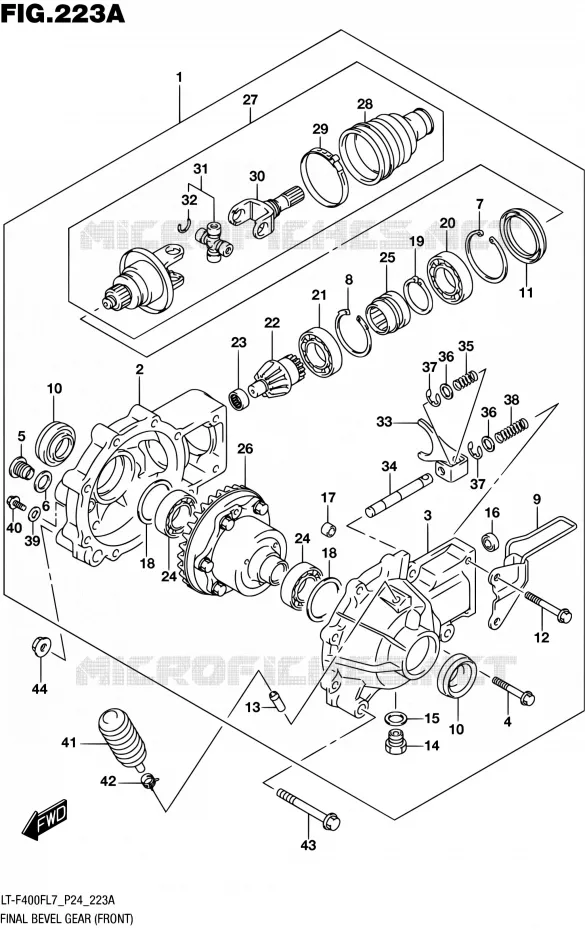

DRIVESHAFT (AVANT) FOR SUZUKI KINGQUAD 400 2017

DRIVESHAFT (ARRIERE)

Item numbers

CASE ASSY, FR DIFF
CASE ASSY, FR DIFFERENTIAL

27400-38F60-000 2740038F60000

$2 270,97

Unit Price

.HOUSING, FINAL DRIVE FR

27451-38FB1-000 2745138FB1000

$283,97

Unit Price

.COVER, FINAL DRIVE FR

27461-38FA1-000 2746138FA1000

$232,97

Unit Price

.BOLT (8X25)

27401-38FA1-000 2740138FA1000

$4,97

Unit Price

.PLUG

27409-38FA0-000 2740938FA0000

$8,97

Unit Price

.WASHER

27407-31GA0-000 2740731GA0000

$7,97

Unit Price

.RING SNAP

27403-38FA0-000 2740338FA0000

$15,97

Unit Price

.RING SNAP

27403-38FB0-000 2740338FB0000

$13,97

Unit Price

DISCONTINUE
.BRACKET ASSY, SHIFT

27951-38FA0-000 2795138FA0000

Not available

SEAL, OIL
.OIL SEAL

27406-38FD0-000 2740638FD0000

$21,97

Unit Price

SEAL, OIL
.OIL SEAL

27406-38FB0-000 2740638FB0000

$31,97

Unit Price

.BOLT (8X50)

27401-38FB0-000 2740138FB0000

$7,97

Unit Price

.UNION

09364-08003-000 0936408003000

$4,97

Unit Price

.PLUG

27409-38FB0-000 2740938FB0000

$11,97

Unit Price

.WASHER

27407-38FB0-000 2740738FB0000

$10,97

Unit Price

SEAL, OIL
.OIL SEAL

27406-38FC0-000 2740638FC0000

$18,97

Unit Price

.PIN

27404-31GA0-000 2740431GA0000

$1,97

Unit Price

.SHIM SET

27445-38FA0-000 2744538FA0000

$266,97

Unit Price

RING, SNAP
.SNAP RING

27403-38FC0-000 2740338FC0000

$8,97

Unit Price

.BEARING

27405-38FA0-000 2740538FA0000

$133,97

Unit Price

.BEARING

27405-38FB0-000 2740538FB0000

$141,97

Unit Price

PINION, DRIVE

27311-11HA0-000

27311-11HA1-000

$300,97

Unit Price

.BEARING

27405-38FC0-000 2740538FC0000

$31,97

Unit Price

.BEARING

27405-38FD0-000 2740538FD0000

$60,97

Unit Price

.SLEEVE

27371-31GA0-000 2737131GA0000

$89,97

Unit Price

.GEAR ASSY

27320-27HA0-000 2732027HA0000

$780,97

Unit Price

.YOKE ASSY

27101-27HA0-000 2710127HA0000

$824,97

Unit Price

..BOOT

27103-27HA0-000 2710327HA0000

$94,97

Unit Price

BANC
..BAND

27104-27HA0-000 2710427HA0000

$12,97

Unit Price

YOKE, PROP SHAFT JOINT
..YOKE, SHAFT JOINT

27151-27HA0-000 2715127HA0000

$221,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$82,97

Unit Price

...CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

.FORK, SHIFT

27941-38FA0-000 2794138FA0000

$23,97

Unit Price

DISCONTINUE
.ROD, SHIFT

27921-38FA0-000 2792138FA0000

Not available

DISCONTINUE
.SPRING, SHIFT

27402-38FA0-000 2740238FA0000

Not available

DISCONTINUE
.WASHER

27407-38FC0-000 2740738FC0000

Not available

DISCONTINUE
.E RING

27403-38FD0-000 2740338FD0000

Not available

DISCONTINUE
.SPRING, RETURN

27402-38FB0-000 2740238FB0000

Not available

.WASHER

27407-38FD0-000 2740738FD0000

$10,97

Unit Price

PLUG, LEVEL
.PLUG

27409-38FC0-000 2740938FC0000

$12,97

Unit Price

27491-38F10
CASE, BREATHER

27491-38F00-000 2749138F00000

Not available

CLIP

09401-08411-000

Not available

BOLT (10X110)

09103-10148-000 0910310148000

$13,97

Unit Price

NUT

08319-3110A-000 083193110A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT (AVANT) of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.
