Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI KINGQUAD 400 2017

CRANKSHAFT

Item numbers

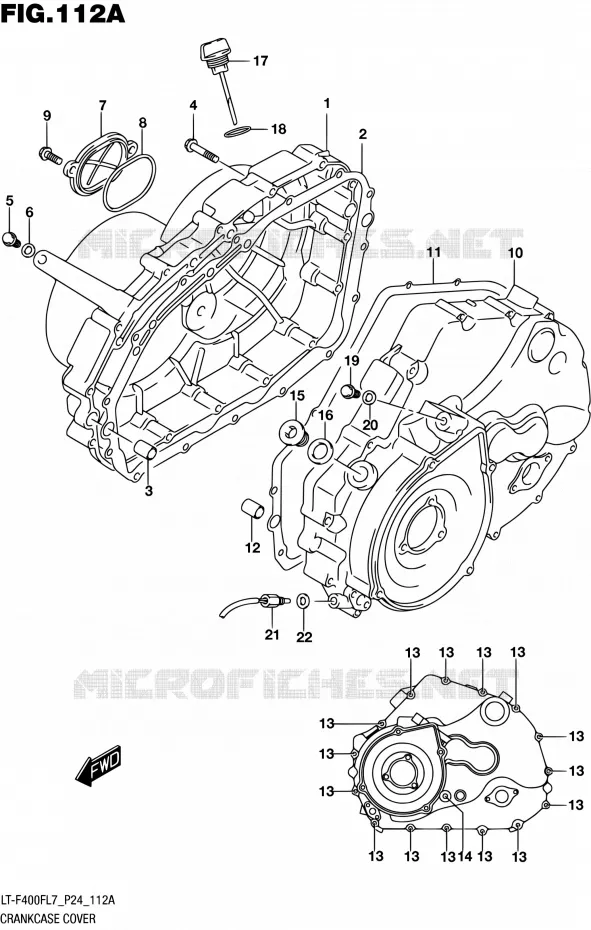

CASING Suzuki QUAD 400 KINGQUAD 2017 LT-F400F L7 (P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
1
COVER, CLUTCH

11341-27H10-000   1134127H10000

1134127H10000

Unit Price

2
GASKET, CLUTCH COVER
GASKET, CLUTCH COVER (NA)

11482-38F10-000   1148238F10000

1148238F10000

Unit Price

3
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

4
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

5
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

6
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
7
CAP, INSPECTION

11175-09F00-000   1117509F00000

1117509F00000

Unit Price

8
O RING, INSPECTION CAP

11177-14D01-000   1117714D01000

1117714D01000

Unit Price

9
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

10
COVER, MAGNETO

11351-27H30-000   1135127H30000

1135127H30000

Unit Price

11
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER (NA)

11483-38F10-000   1148338F10000

1148338F10000

Unit Price

12
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

13
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

14
BOLT CRANKCASE *S1
BOLT (8X140)

09103-08040-000   0910308040000

0910308040000

Unit Price

15
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

16
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

17
GAUGE, OIL LEVEL

11971-38F00-000   1197138F00000

1197138F00000

Unit Price

18
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

19
BOLT
PLUG

01550-0612A-000   015500612A000

015500612A000

Unit Price

20
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
21
SENSOR, ENGINE TEMP

13640-32G00-000  

13640-32G01-000
 1364032G00000

Unit Price

22
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.
